Pendulum CNT-90 | Frequency counter / timer / analyzer, 400 MHz / 100 ps, graphical, incl. Standard time base

Manufacturer number: CNT-90

CNT-90
Reordered - in stock. Delivery time on request

CHF 2,910.00

plus VAT. CHF 3,145.71 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Pendulum CNT-90 | Frequency counter and analyzer, up to 400 MHz and 3/8/15 or 20 GHz, resolution 100 ps, speed up to 250 kSa / s, OCXO time reference.

  • Number of channels: 2 (optional: channel 3)
  • Time reference: OCXO (oven-controlled crystal oscillator)
  • Measuring range: 0.002 Hz to 400 MHz (optional CH 3: up to 3, 8, 15 or 20 GHz)
  • Measurement resolution: 12 digits / s (frequency), 100 ps (time, single shot), 2.5 mV (voltage)
  • Measuring speed: 250,000 Sa / s
  • Internal memory for max. 750,000 readings
  • Measurement functions / statistics: frequency, period, time range, phase, duty cycle, pulse duration, rise / fall time, voltage, peak voltage / mean, minimum, maximum, standard deviation, Allan deviation (ADEV)
  • Minimum pulse width: 1.6 ns
  • Attenuators: x1, x10
  • Trigger sources: internal, external (interface), manual
  • Interfaces: USB, GPIB
  • Power supply: 90 - 265 V, 45 - 440 Hz, optional battery operation
  • Dimensions and weight: W 210 x H 90 x D 395 mm, 2.7 kg
  • 3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

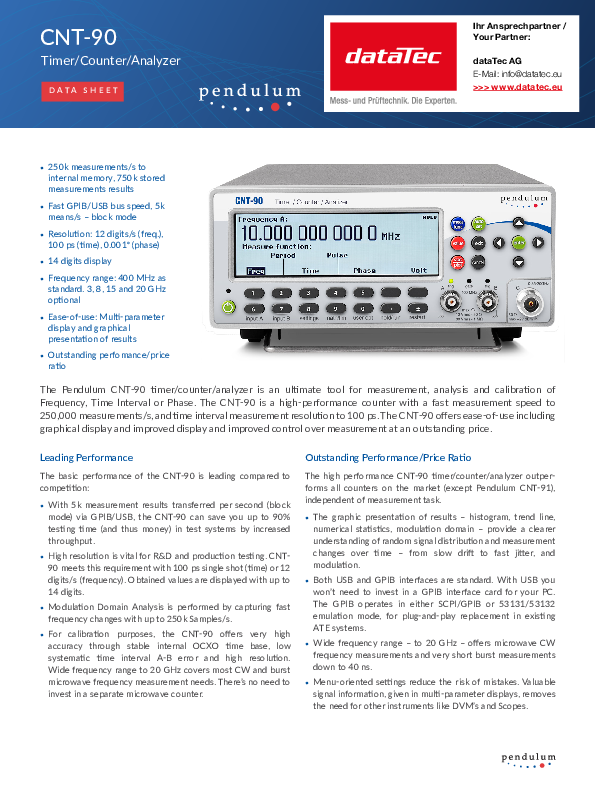

Datasheet
pdf | 0.45 MB
Userguide
pdf | 9.62 MB
Start guide
pdf | 1.12 MB

Description

CNT-90 | Frequency counter / timer / analyzer, 400 MHz / 100 ps, graphical, incl. Standard time base

The powerful CNT-90 frequency counter from Pendulum Instruments is characterized by its high measuring speed and resolution. It is used as a high-performance analyzer for the high-precision measurement and calibration of frequencies, time intervals or phases. Its speed enables up to 250,000 measurements per second. The measurement resolution for the time domain measurement is up to 100 ps. The CNT-90 displays frequency measurements with 12 digits.

Thanks to the intuitive, menu-driven operation of the CNT-90 via graphic display, you have optimal control over your analyzes. The visual calibration instructions ensure an even more comfortable use of the device. The portable frequency counter is also available with a battery for maximum versatility.

With the modulation domain analyzer software TimeView 2, you can expand your measurement and statistical functions to analyze dynamic signal changes in time or frequency in real time. B. for analyzing hopping frequencies up to 20 GHz, PLL and FPL (phase / frequency locked loop), CW (continuous wave), Doppler pulse or chirp radar signals, digital modulations such as FSK or for measuring frequency stability (Allan deviation ADEV ). Thanks to the integrated FFT and signal display, the input signal can be displayed in both the frequency and time domain.

High performance timer / counter / analyzer:
  • Fast transfer of your measurement results via GPIB / USB for a high test throughput (5,000 Sa / s)
  • High resolution for efficient use in research, development and production (100 ps for time, 12 digits for frequency measurements)
  • With analysis function for modulation domains by recording fast frequency changes with up to 250 kSa / s)
  • Zero dead time technology and the continuous time stamping of trigger events enable the correct measurement of the Allan deviation (ADEV) as well as mechanical or medical applications (e.g. nerve impulses, breathing)
  • Very high accuracy due to OCXO time reference for calibration purposes
  • Large frequency range up to 20 GHz for all CW (continuous wave) and burst RF applications
  • Clear display for optimal interpretation of your measurement results with histogram, trend line, numerical statistics, modulation domain
  • Outstanding price-performance ratio

Lieferumfang

  • Power cord
  • Operating instructions (CD)
  • Calibration certificate
