Pendulum CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz

Name: CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz
Brand: Pendulum
SKU: CNT-104S
Price: 11179.0 CHF
Availability: OutOfStock

Manufacturer number: CNT-104S

Delivery time upon request

CHF 11,179.00

plus VAT. CHF 12,084.50 VAT plus shipping costs

or choose one of the following options:

Product inquiries % Additional offers for this product

Pendulum CNT-104S | 4-channel frequency counter / frequency analyzer, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

AC input:	100 VAC - 240 VAC, 50 - 60 Hz (nom.), < 70 W
Article number:	CNT-104S
Dimensions (L x W x H) (mm):	395 x 210 x 90
Event Count (Totalize):	170.000
Input impedance:	1 MΩ parallel 40 pF or 50 Ω
Interfaces:	USB, LAN
Measurement functions:	Frequency, period, time range, phase, duty cycle, pulse duration, rise-fall time
Measurement resolution (gate time):	1,5 ns
Measuring range HF (or MikroW) (GHz):	24
Measuring range RF (MHz):	400
Measuring resolution:	12 digits/s
Messwertstatistik:	current measured value, minimum, maximum, standard deviation
Min. pulse width:	7 ps
Model:	CNT-104S
Number of channels:	3
Sensitivity:	15 mVrms: 100 MHz / 25 mVrms: 100 MHz - 200 MHz / 35 mVrms: 250 MHz - 350 MHz
Trigger source:	Intern, Extern, Bus, Manuel
Warranty (years):	3
Weakening:	Trigger Range: x10 / x1
Weight (kg):	3

Description

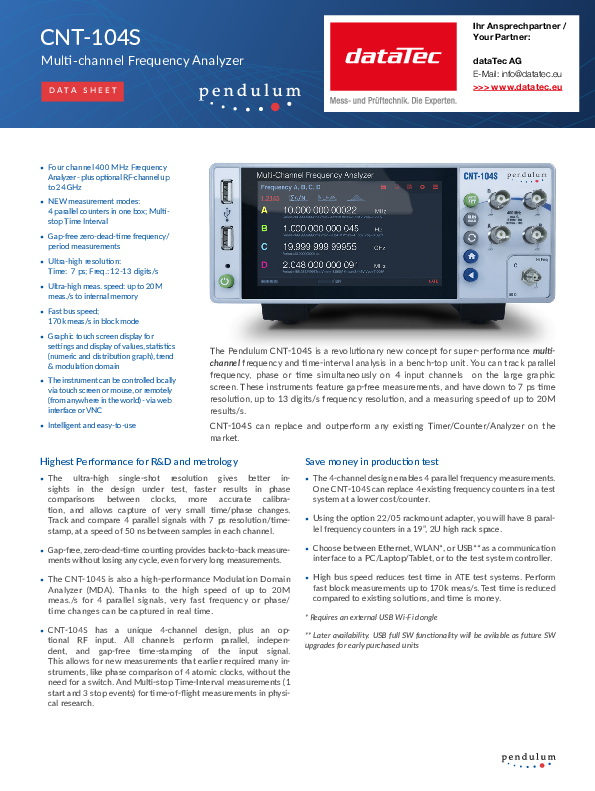

CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz

The Pendulum CNT-104S 4-channel frequency analyzer offers you a revolutionary concept for powerful multi-channel frequency and time interval analysis. Follow the frequency, phase or time of the 4 input channels in parallel on the large graphic screen. The CNT-104S allows you to measure without gaps, with a time resolution of

The ultra-high single-shot resolution enables better insight into the design under test, faster results in phase comparisons between clocks, more accurate calibration and the capture of very small time/phase changes. Track and compare 4 parallel signals with a resolution of 7 ps at a speed of 50 ns between samples in each channel. A measurement is made synchronously on all channels every 50 ns. The timestamps of the individual channel measurements can vary by up to 7 ps. In terms of 50 ns, that's "simultaneous/synchronous".

The complete zero dead time count enables back-to-back measurements without cycle loss, even with very long measurements. The CNT-104S is also a powerful Modulation Domain Analyzer (MDA). Thanks to the high speed of up to 20M samples/sec for 4 parallel signals, very fast frequency or phase/time changes can be recorded in real time.

The CNT-104S allows you to take measurements that previously required many devices, such as B. the phase comparison of 4 atomic clocks without the need for a switch. And multi-stop time interval measurements (1 start and 3 stop events) for time-of-flight measurements in physics research.

The large color touchscreen with its intuitive menus allows you to make all settings with the touch of a finger. Alternatively, a mouse can be connected to the CNT-104S. Or you can use the web server interface to control the frequency counter from an external PC screen.

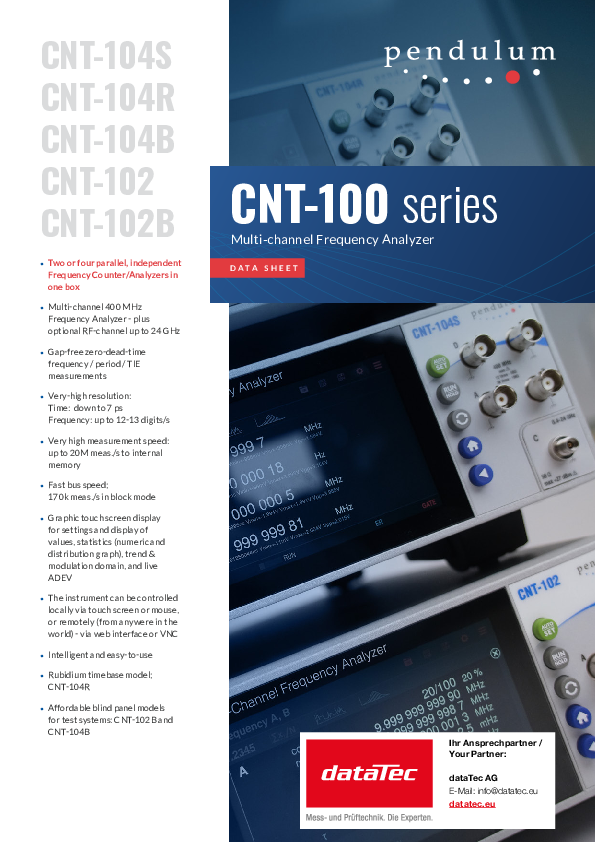

Product features:

Frequency analyzer with 4 independent channels up to 400 MHz, plus an optional RF input from 0.1 to 24 GHz, expandable to 10, 15, 20 or 24 GHz via software license
In one device: 4 parallel counters for frequency measurement from 1 mHz to 400 MHz; with ultra-high time resolution of
Multi stop time interval
Seamless zero-dead-time frequency/period measurements
Very high measurement speed: up to 20M readings/s for 4 channels enables real-time acquisition of very fast frequency and phase changes for a modulation domain analysis (MDA)
Fast measurement data transmission of 170k measurements/s in block mode
Graphical touchscreen display for settings and display of values, statistics (numerical and distribution graph), trend and modulation range
