NI 786306-01 | USB-8501, NI-XNET CAN interface (LS/FT), 1 port

Name: 786306-01 | USB-8501, NI-XNET CAN interface (LS/FT), 1 port
Brand: NI
SKU: 786306-01
Price: 1120.0 CHF
Availability: OutOfStock

Manufacturer number: 786306-01

Delivery time upon request

CHF 1,120.00

plus VAT. CHF 1,210.72 VAT plus shipping costs

or choose one of the following options:

Product inquiries

786306-01 | USB-8501, NI-XNET CAN interface (LS/FT), 1 port.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Bustype:	USB 2.0
CAN physical layer:	Low-Speed/Fault Tolerant
Communication protocol:	CAN
Connection type front:	9-Pin, Männlich D-Sub
Number of CAN connections:	1
Protectively coated:	No
Supports external timing and triggers:	No
With case:	Yes

Documents & Downloads

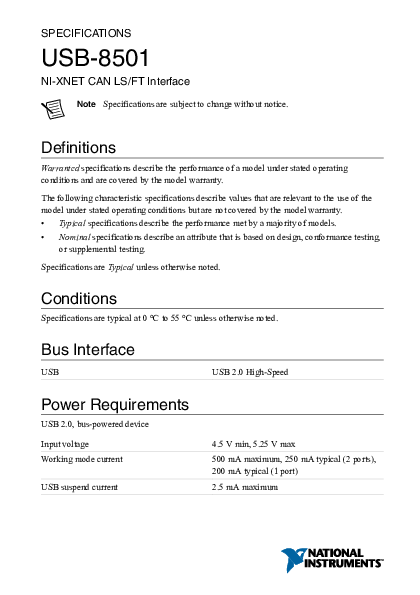

Datasheet

pdf | 0.24 MB

Description

786306-01 | USB-8501, NI-XNET CAN interface (LS/FT), 1 port

The USB-8501 is a low-speed CAN interface module for application development using the NI-XNET driver. The USB-8501 is USB-powered and does not require an external power supply. The board is particularly suitable for applications where hundreds of CAN frames and signals must be manipulated in real time and at high speed, such as bus monitoring and automation control. The device-powered NI-XNET DMA engine enables the onboard processor to transfer CAN frames and signals between interfaces and the application program without causing CPU interrupts, reducing message latency and freeing up processor time for processing complex applications. The USB-8501 provides a 3-pin COMBICON connector for triggering and synchronizing the hardware's internal time base with other devices.
