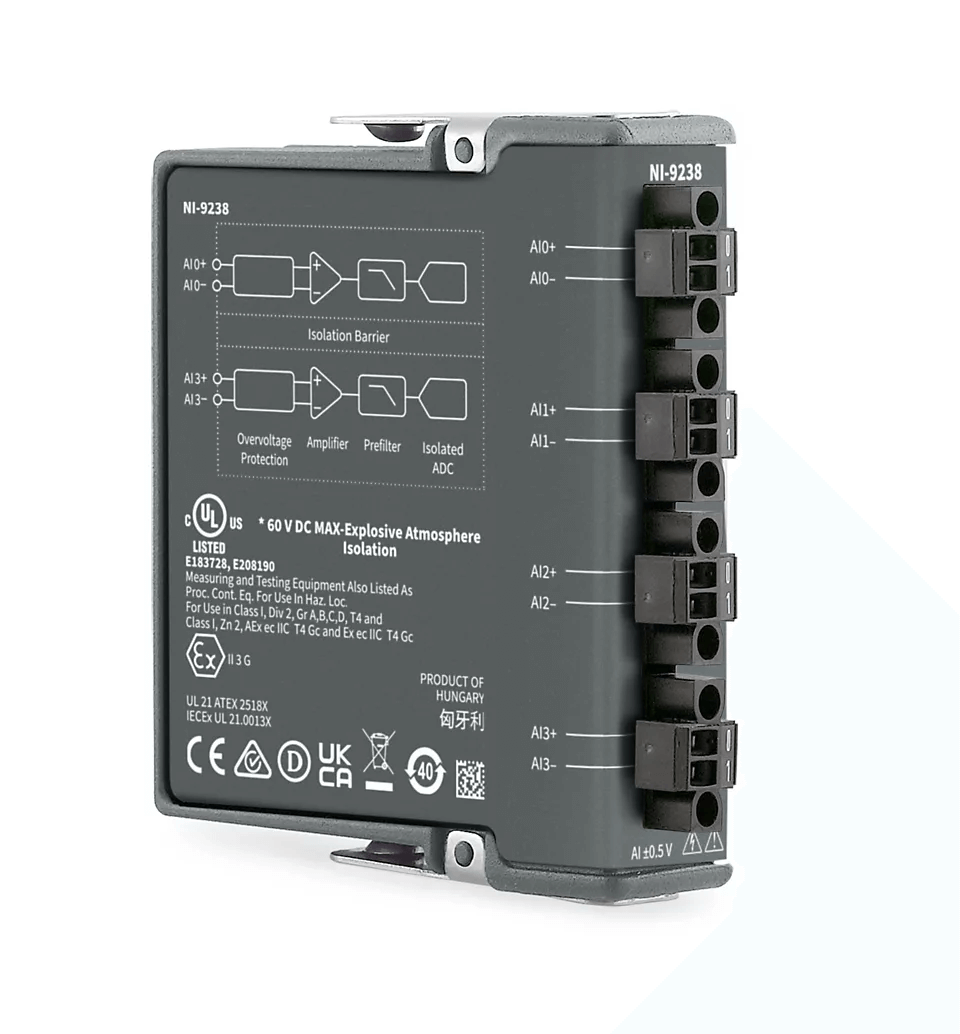

NI 783311-01 | NI 9238, C series analog input module, 4 channels, 50 kS / s per channel, 24 bit, +/- 500 mV

Name: 783311-01 | NI 9238, C series analog input module, 4 channels, 50 kS / s per channel, 24 bit, +/- 500 mV
Brand: NI
SKU: 783311-01
Price: 2280.0 CHF
Availability: OutOfStock

Manufacturer number: 783311-01

Delivery time upon request

CHF 2,280.00

plus VAT. CHF 2,464.68 VAT plus shipping costs

or choose one of the following options:

Product inquiries

783311-01 | NI 9238, C series analog input module, 4 channels, 50 kS / s per channel, 24 bit, +/- 500 mV.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue input isolation:	250 Veff Kanal-zu-Kanal-Isolierung, Ch-Ch Isolation
Bustype:	C Series
Connection type front:	2-Pin, Weiblich Schraubanschluss
Filtering:	Anti-Alias
Max. Number of differential analogue input channels:	4
Max. Number of ground-related analogue input channels:	0
Measured electrical signal:	Voltage
Measurements per second/sampling rate (MS/s):	0.05
Module width:	1
Protectively coated:	No
Resolution of the analogue input:	24 bit
Samplerate:	50 kS/s pro Kanal
Simultaneous scanning:	Yes
Voltage measuring range of the analogue input (V):	-500 mV bis 500 mV
With case:	Yes

Description

783311-01 | NI 9238, C series analog input module, 4 channels, 50 kS / s per channel, 24 bit, +/- 500 mV

The NI ‑ 9238 module is used for differential analog acquisition. The measurement range can be used with a wide variety of low voltage sensors, including current sensing resistors (shunts) and current transformers in high current applications. When used with the C-Series High Voltage Modules, the NI ‑ 9238 module can track power and energy consumption in a variety of applications, including device testing, industrial machine monitoring, power quality analysis, phasor measurement, and harmonic analysis.

Product features:

Maximum number of ground-related analog input channels: 0
Maximum number of differential analog input channels: 4
Voltage measuring range of the analog input: -500 mV to 500 mV
Maximum sampling rate: 50 kS / s per channel
Simultaneous sampling: Yes
Resolution of the analog input: 24 bit
Connection type front: screw connection (qty 4)
Analog input isolation: 250 Vrms channel-to-channel isolation
Protective coating: no
With housing: yes
Supported hardware platform: CompactDAQ, CompactRIO
