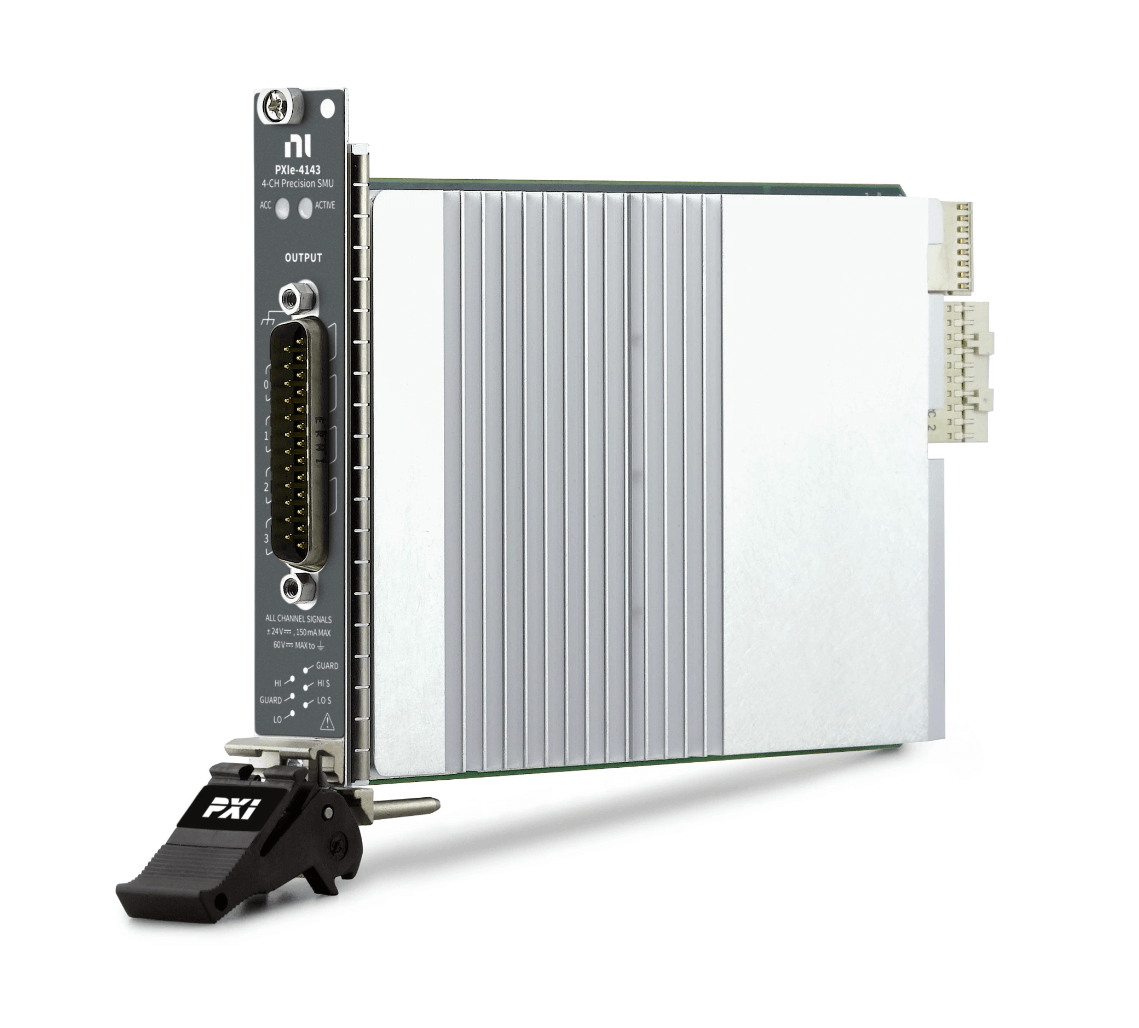

NI 782431-01 | NI PXIe-4143, precision SMU with 4 channels: 24 V, 150 mA

Manufacturer number: 782431-01

782431-01
Delivery time upon request

CHF 23,400.00

plus VAT. CHF 25,295.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

782431-01 | NI PXIe-4143, precision SMU with 4 channels: 24 V, 150 mA.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 1.86 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

782431-01 | NI PXIe-4143, precision SMU with 4 channels: 24 V, 150 mA

The PXIe-4143 is a four-channel source measure unit (SMU) that is ideal for high-pin count applications. It has four-quadrant operation and each channel offers integrated remote sensing on four conductors for accurate measurements. Due to the high sampling rate of the PXIe-4143, measurement times can be reduced, the transient behavior can be recorded and the current-voltage characterization of DUTs can be carried out quickly. With a high-speed sequencing engine, all SMUs can be synchronized with each other or with other measuring devices such as switch modules or high-speed digital test modules. In addition, you can tune the PXIe-4143's response to any load, using SourceAdapt technology to achieve optimal responses with maximum stability and minimal transients.

Product features:

  • Number of SMU channels: 4
  • Maximum DC source power: 3.6 W
  • Maximum DC sink power: 3.6 W
  • Voltage measuring range: -24 V to 24 V.
  • Current sensitivity: 10 pA
  • SourceAdapt: Yes
  • With auxiliary power supply: -
  • DC current range: -150 mA to 150 mA
  • Pulsed current range: -

Accessoires (4 products)

Accessoires (4 products)

960453-04
NI
960453-04
ISO 17025 Calibration Certificate for PXIe-4143 (782431-01-ISO)
Delivery time upon request
CHF 800.00
960680-101
NI
960680-101
Standard Service Program (SSP) for PXIe-4143 with Traceable Calibration, 3 Years (782431-01-SC3)
Delivery time upon request
CHF 2,359.56
960453-03
NI
960453-03
ANSI Compliant Calibration Certificate for PXIe-4143 (782431-01-ANSI)
Delivery time upon request
CHF 610.00
960453-01
NI
960453-01
Traceable Calibration Certificate for PXIe-4143 (782431-01-CAL)
Delivery time upon request
CHF 370.00
