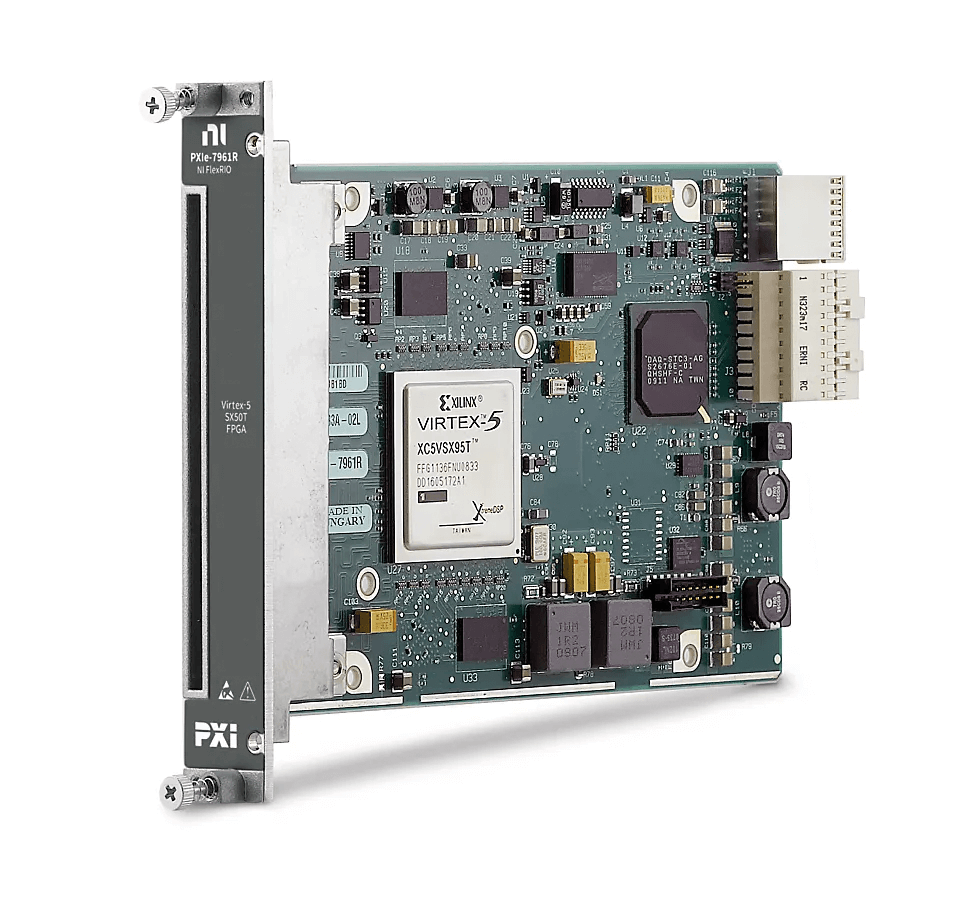

NI 781205-01 | NI PXIe-7961R, NI FlexRIO FPGA Module (Virtex-5-SX50T)

Manufacturer number: 781205-01

781205-01
781205-01
781205-01
8 in stock. Ready to ship in 1 business day

CHF 10,800.00

plus VAT. CHF 11,674.80 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description

781205-01 | NI PXIe-7961R, NI FlexRIO FPGA module (Virtex-5-SX50T).

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Overview
pdf | 1.35 MB
Datasheet
pdf | 1.16 MB
Configuration guide
pdf | 1.88 MB

Description

781205-01 | NI PXIe-7961R, NI FlexRIO FPGA Module (Virtex-5-SX50T)

The PXIe ‑ 7961 provides flexible, customizable I / O for LabVIEW FPGA. The module has 132 single ‑ ended I / O lines that can be configured as 66 differential line pairs. The PXIe ‑ 7961 can be combined with FlexRIO adapter modules that have high ‑ performance analog and digital I / O. Both modules together result in a configurable measuring device that can be programmed with the LabVIEW FPGA software. The PXIe ‑ 7961 supports peer ‑ to ‑ peer data streaming, which allows data to be transferred between multiple FPGAs or certain PXI ‑ Express modules without having to send the data to the host processor. This allows you to add FPGA capabilities to powerful NI digitizers with NIST-compliant calibration, or to transfer FPGA algorithms to multiple FPGAs in processing-intensive applications.

Product features:

  • FPGA: Virtex-5 SX50T
  • FPGA slices: 8160
  • Block RAM (BRAM): 4752 kbit
  • DSP slices: 288
  • Dynamic RAM (DRAM): 0 MB
  • PXI backplane connection: PCI-Express Gen1 x 4
