NI 781044-01 | PCIe-6321, X-Series Data Acquisition Card (16 AI, 24 DIO, 2 AO)

Manufacturer number: 781044-01

NI 781044-01
4 in stock. Ready to ship in 1 business day

CHF 995.00

plus VAT. CHF 1,075.60 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

781044-01 | PCIe-6321, X series data acquisition card (16 AI, 24 DIO, 2 AO).

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Brochure
pdf | 0.75 MB

Description

781044-01 | PCIe-6321, X-Series Data Acquisition Card (16 AI, 24 DIO, 2 AO)

The PCIe ‑ 6321 offers analog I / O, digital I / O and four counters / timers with 32 bit resolution for pulse width modulation, encoder and frequency measurements as well as event counting and much more. Thanks to the high-throughput PCI Express bus and the The multicore version provides optimized driver and application software with a powerful range of functions. The NI ‑ STC3 timing and synchronization technology enables advanced timing functions, including independent analog and digital timing engines and repeatable triggering of measurement tasks. The PCIe ‑ 6321 is suitable for a wide variety of applications, from basic data logging to open-loop and closed-loop control and test automation. The NI ‑ DAQmx driver with configuration program included in the scope of delivery simplifies the configuration and the execution of measurements.

Product features:

  • With housing: yes
  • Bus type: PCI Express
  • Maximum number of ground-related analog input channels: 16
  • Maximum number of differential analog input channels: 8
  • Simultaneous sampling: No.
  • Maximum sampling rate: 250 kS / s
  • Resolution of the analog input: 16 bit
  • Absolute accuracy of the analog input: 2200 μV
  • Number of analog output channels: 2
  • Maximum update rate: 900 kS / s
  • Number of bidirectional digital channels: 24
  • Number of counters / timers: 4

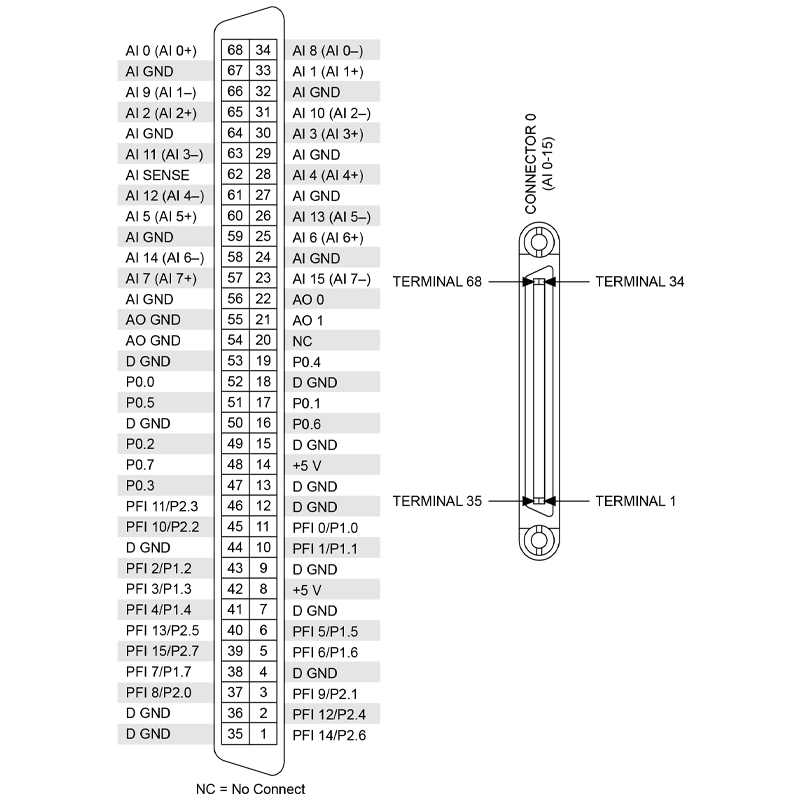

  • Connection type front: VHDCI
  • Supported input power: bus-operated
  • Isolation of the analog input: -
  • Analog input FIFO buffer size: 4095 samples
