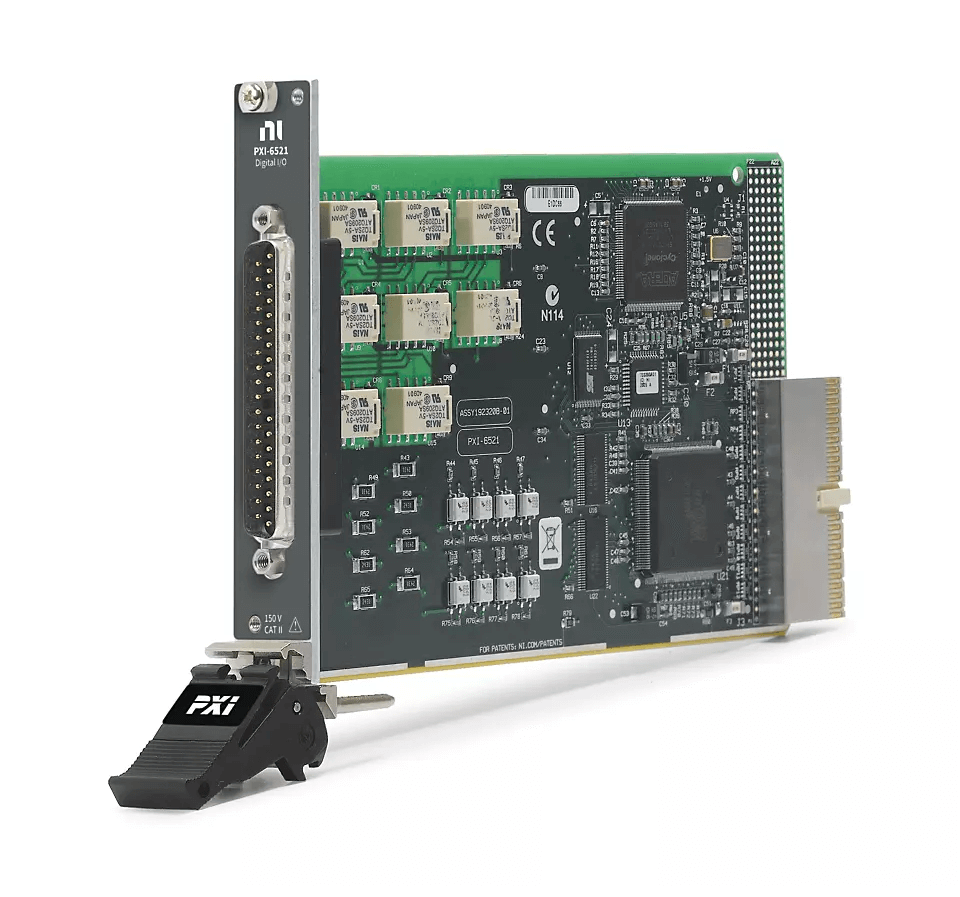

NI 779313-01 | NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ

Name: 779313-01 | NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ
Brand: NI
SKU: 779313-01
Price: 1270.0 CHF
Availability: InStock

Manufacturer number: 779313-01

3 in stock. Ready to ship in 1 business day

CHF 1,270.00

plus VAT. CHF 1,372.87 VAT plus shipping costs

or choose one of the following options:

Product inquiries

779313-01 | NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Bustype:	PXI Hybrid
Connection type front:	37-Pin, Männlich D-Sub
LC meter:	No
Logic level and range:	0.0V - 150.0V, 24 V, -30.0V - 30.0V
Logic level of the digital I/O:	24 V
Module width:	1
Number of digital inputs:	8
Number of digital outputs:	8
Protectively coated:	No
Spannungsmessbereich DI:	-30 V bis 30 V
With case:	Yes

Description

779313-01 | NI PXI-6521, 8 channel-wise isolated digital inputs, 8 outputs for mechanical relays, NI-DAQ

The PXI ‑ 6521 is an industry ‑ compatible digital I / O module with high channel-wise isolation and industry standard logic levels with 24 V. The PXI ‑ 6521 requires a coded connector to ensure increased security. In the event of a computer or application error, digital I / O watchdogs on the PXI ‑ 6521 ensure that the PXI ‑ 6521 goes into a configurable, secure output state in order to detect malfunctions and enable the system to be restored safely. The module also offers programmable switch-on states, digital filters and functions for detecting status changes for optimal application execution.

Product features:

Logic level digital I / O: 24 V.
Bus type: PXI Hybrid
Current output for single-ended digital I / O: 2 A.
Bidirectional digital channels: -
Signal type: referenced to ground
Pure digital input channels: 8
Voltage measuring range digital input: -30 V to 30 V.
Pure digital output channels: 8
Output voltage range: 0 V to 150 V.
Maximum clock rate: -
