NI 779058-02 | PXI-5441, PXI function generator up to 43 MHz (100 MS / s, 16 bit, 1 channel, 32 MB)

Manufacturer number: 779058-02

NI 779058-02
Delivery time upon request

CHF 22,000.00

plus VAT. CHF 23,782.00 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

779058-02 | PXI-5441, PXI function generator up to 43 MHz (100 MS / s, 16 bit, 1 channel, 32 MB).

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Overview
pdf | 1.35 MB

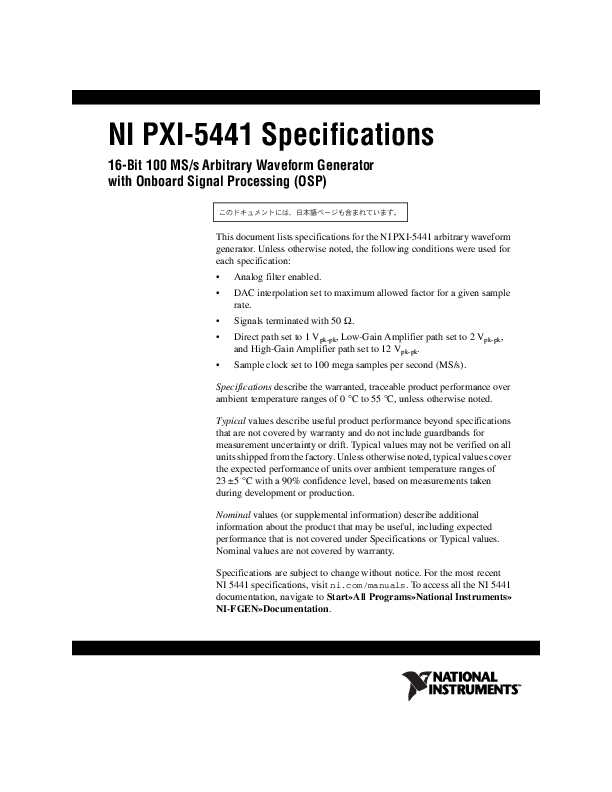

Datasheet
pdf | 0.54 MB
Configuration guide
pdf | 1.88 MB

Description

779058-02 | PXI-5441, PXI function generator up to 43 MHz (100 MS / s, 16 bit, 1 channel, 32 MB)

The PXI ‑ 5441 is a 43 ‑ MHz arbitrary generator for generating user-defined, arbitrary waveforms as well as other standard waveforms such as "sine", "square", "triangle" and "ramp" and signals that require integrated signal processing. These signal processing functions include FIR and CIC interpolation filters, digital amplifier parameters per filter, a numerically controlled oscillator and IQ modulation for quadrature digital upconversion. The PXI ‑ 5441 also has advanced synchronization and data streaming capabilities.

Product features:

  • Supports scripts: Yes
  • > Bus type: PXI Hybrid
  • Maximum bandwidth: 43 MHz
  • Maximum update rate: 100 MS / s
  • Resolution analog output: 16 bit
  • Voltage measuring range analog output: -6 V to 6 V
  • Integrated memory analog output: 32 MB
  • Number of output channels: 1
  • Supports arbitrary waveforms: Yes
  • RF signal generation: No.
  • Digital upconversion: yes
