NI 778572-45 | NI PXI-2545, 4x1 multiplexer with terminating resistor, 50 ohms, 2.7 GHz

Manufacturer number: 778572-45

NI 778572-45
Delivery time upon request

CHF 3,100.00

plus VAT. CHF 3,351.10 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description

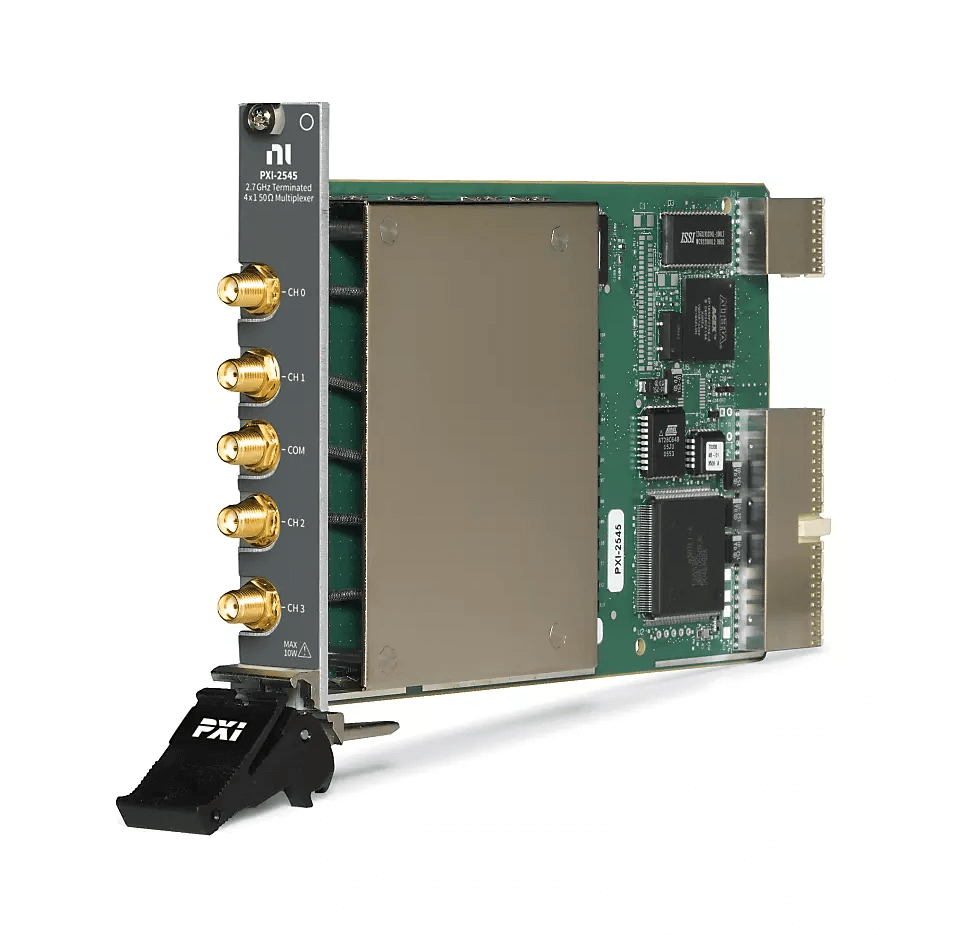

778572-45 | NI PXI-2545, 4x1 multiplexer with terminating resistor, 50 ohms, 2.7 GHz.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 2.74 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

778572-45 | NI PXI-2545, 4x1 multiplexer with terminating resistor, 50 ohms, 2.7 GHz

The PXI ‑ 2545 is a multiplexer switch module for routing RF signals. Due to the internal terminating resistor, which is supposed to prevent signal reflections of high currents that result from open channels, the module is particularly suitable for applications in high-frequency technology, where such reflections can damage the power source. The module also offers powerful features such as insertion loss, ripple factor (VSWR) and signal isolation, so that the loss of quality in signals is minimized. The function for counting the switching operations integrated in the module can be used to make predictions about the service life of relays and to reduce unexpected system failures.

Product features:

  • Bus type: PXI Hybrid
  • Number of banks: 1
  • Number of channels: 4
  • Switching bandwidth: 2.7 GHz
  • Characteristic impedance: 50 ohms
    • li> Final conclusion: Yes
  • Maximum insertion loss: -2 dB
  • Relay type: electromechanical
  • Maximum switching voltage (AC): 30 V.
  • Maximum continuous current (AC): 0.5 A
