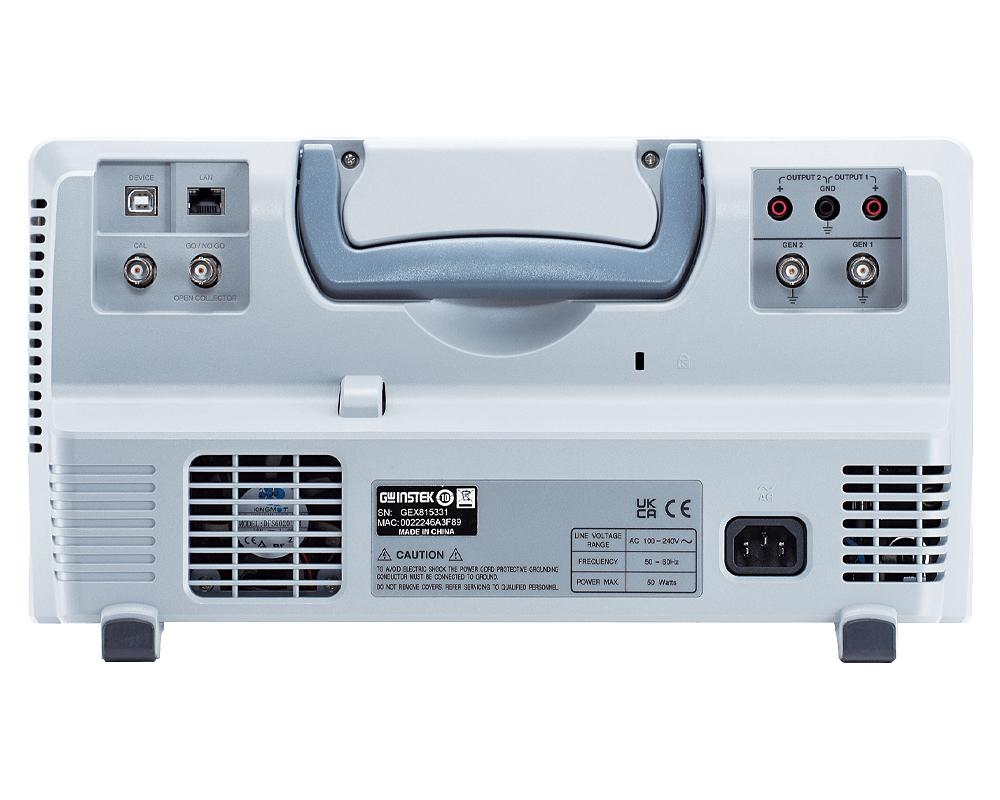

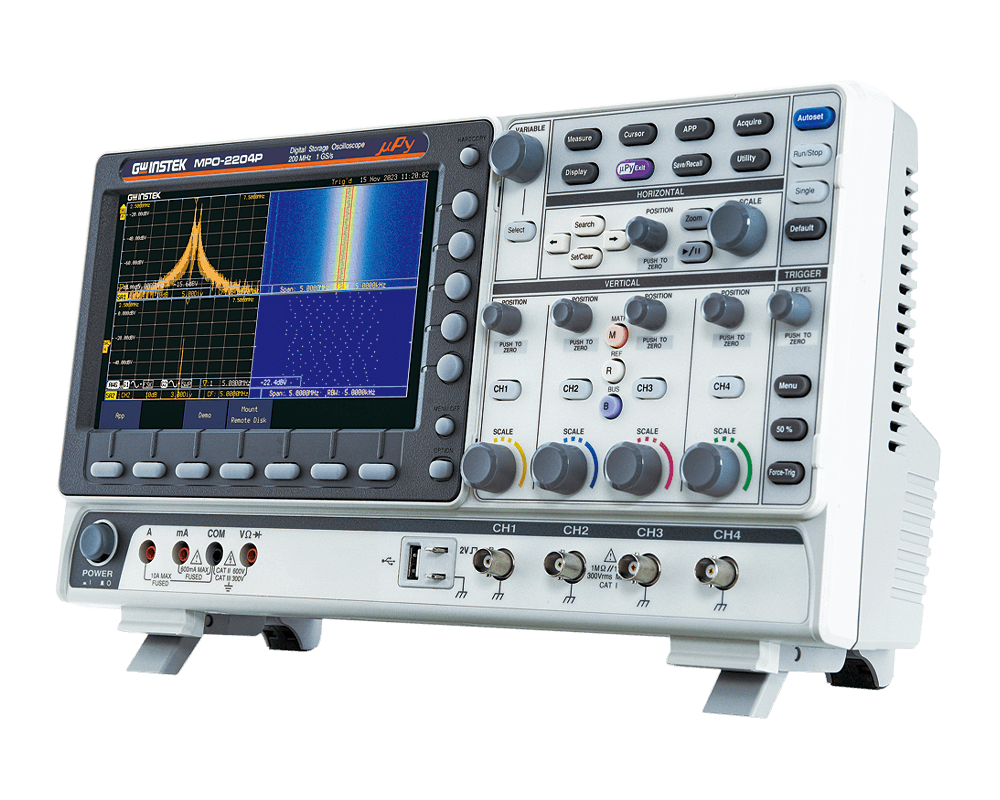

GW Instek MPO-2204P | Multi-function oscilloscope, 200 MHz, 4 channel, including spectrum analyzer, AWG, DMM & DC power supply
Manufacturer number: MPO-2204P
On Request
GW Instek MPO-2204P | Programmable multi-function oscilloscope, 200 MHz, 4 channels, including spectrum analyzer, 2 channel AWG with 25 MHz, 5,000 digits DMM and 2 channel DC power supply 1 - 20 V.
- 2 / 4 channel multifunctional oscilloscopes with 100 / 200 MHz bandwidth
- Python scripts for control for automation purposes < li>Two-channel spectrum analyzer with spectrogram
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
- Data logging function up to 1000 Hours
- Network storage function
- Includes spectrum analyzer
- Includes 25 MHz 2-channel AWG < br/>
- Includes 5,000 digit DMM
- 2 channel DC power supply, 1 V - 20 V continuously adjustable (0.1 V steps) < /ul>
Technical Data
Article number: | MPO-2204P |
---|---|
Bandwidth (MHz): | 200 |
Counter: | Yes |
DVM: | Yes |
Dimensions (L x W x H) (mm): | 127,3 x 384 x 208 |
Function generator: | Yes |
Interfaces: | USB, LAN, Go/NoGo BNC |
Model: | MPO-2204P |
Number of channels: | 4 |
Samplerate: | 1 GSa/s |
Screen size: | 20,32 cm |
Screen type: | 800 x 480, WVGA TFT |
Signal acquisition rate: | 120.000 wfms/s |
Special features: | 2-channel DC power supply 1 V - 20 V, AWG, Spectrum Analyzer, Python Scripts |
Storage depth: | 10 MPts |
Triggertypes: | Edge, pulse width, Runt, Rise/Fall, and Bus |
Vertical resolution: | 8-bit |
Warranty (years): | 2 |
Weight (kg): | 3 |
Documents & Downloads
Description
MPO-2204P | Multi-function oscilloscope, 200 MHz, 4 channel, including spectrum analyzer, AWG, DMM & DC power supply
The programmable multifunctional oscilloscope MPO-2000 GW Instek is a real all-rounder. It includes a spectrum analyzer, an arbitrary signal generator, a digital multimeter and a DC power supply. In addition to the 5-in-1 multi-function architecture, the multi-function oscilloscope is characterized by its innovative Python scripting function, which allows you to program a small automated test system by setting up a single device test or a multi-test without a PC - a true multi-function programmable Oscilloscope, hence the name MPO.
The MPO-2000 series is available in a basic version (MPO2000-B) with a bandwidth of 100 MHz and a professional version (MPO2000-P ) with a bandwidth of 200 MHz. The main difference is that the Professional version has larger program memory and more system resources, so that longer curve data can be processed.
The Basic version contains the included executable demo programs (including programs with USB Device Control and GUI) as well as third-party Python programs. Additionally, the Professional version offers advanced bus decoding features including FlexRay, USB-PD and I2S. A large number of bus decoding functions are included in the standard configuration, making MPO-2000 even more competitive.

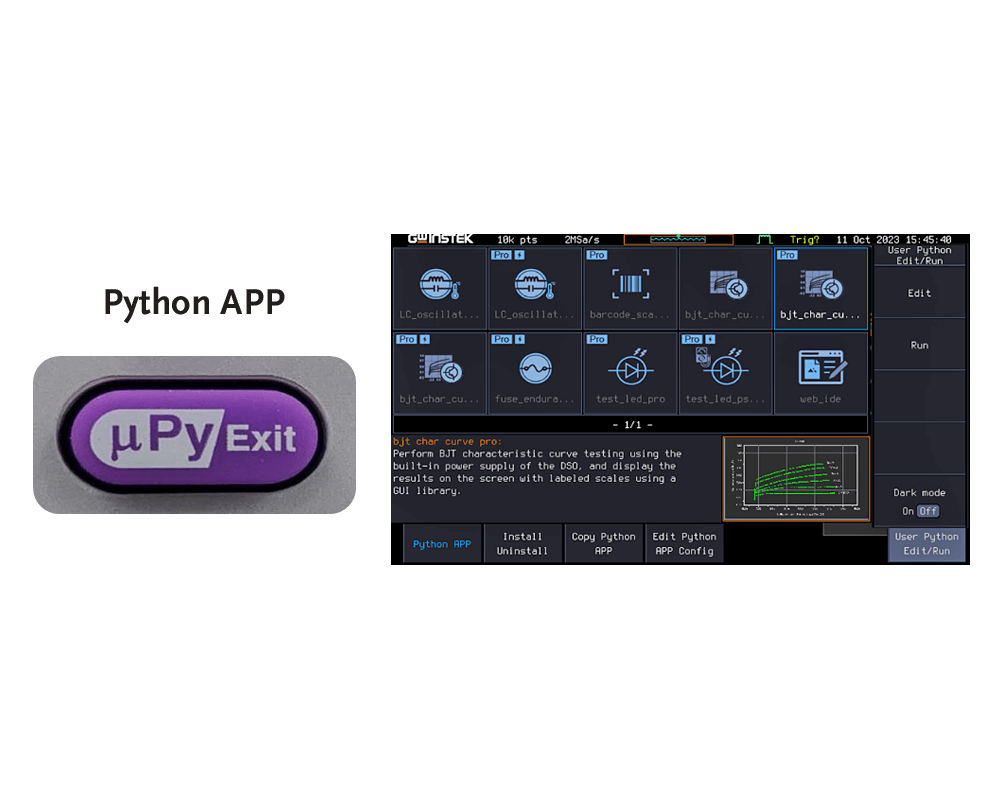

The Python APP currently installed on the MPO-2000 includes the following categories: BJT output characteristic, LC -Oscillator frequency and temperature characteristic, fuse endurance test, LED bias characteristic and barcode scanner measurement application.
The MPO-2204P variant presented here is the Pro version of the MPO -2000 oscilloscope with a bandwidth of 200 MHz with 4 channels. You also get the MPO-2000 as a Pro version with 2 channels (MPO-2202P) and as a Basic version (MPO-2102B / MPO-2104B).
Alternate products (3 products )
Recommendations (13 products )
About the Manufacturer
Good Will has been listed on the Taiwan Stock Exchange since 2000. Development and production focus on high quality and low cost measuring instruments for production, laboratory and education. Headquartered in Taipei, Good Will has subsidiaries in China, America, Japan, Korea and Malaysia. The products are sold in over 80 countries.
