GW Instek MFG-2120MA | Function generator, 1-channel, arbitrary 20MHz, 10Vss, modulation, power 20dB, USB

Manufacturer number: MFG-2120MA

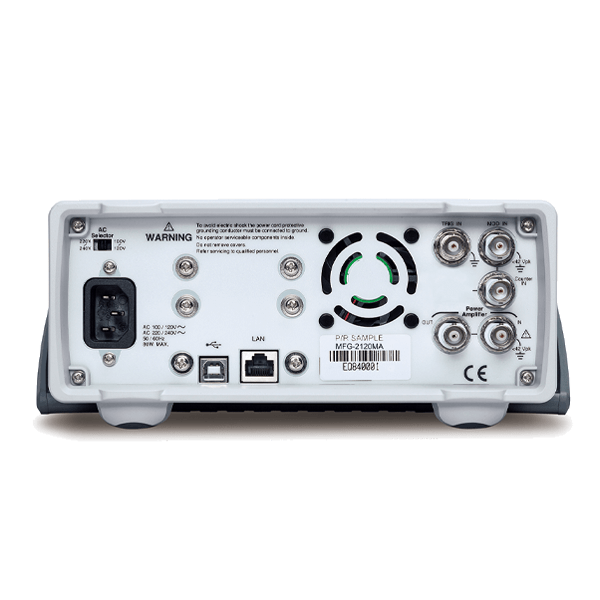

GW Instek MFG-2120MA
GW Instek MFG-2120MA
GW Instek MFG-2120MA
GW Instek MFG-2120MA
Delivery time upon request

CHF 558.00

plus VAT. CHF 603.20 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

GW Instek MFG-2120MA | Multi-channel function generator: 20 MHz 1-channel arbitrary function generator and function generator (sine, square, sawtooth, ramp), as well as 25 MHz pulse generator, 20W / 20dB power amplifier, modulation / sweep / burst and frequency counter. USB interface.

  • 3 output channels for simultaneous measurement applications
  • Channel 1: Arbitrary function generator 20 MHz
    - Arbitrary functions: 1 µHz to 20 MHz, 2 arbitrary channels with equivalent performance
    - Standard functions: sine, rectangle, triangle, ramp and noise
    - Output voltage: 1 mVpp to 10 Vpp (against 50 Ω), 2 mVpp to 20 Vpp (open circuit)
  • Channel 2: pulse generator with a frequency range from 1 µHz to 25 MHz
    - Duty cycle 0.01% to 99.99%
    - Output voltage: 1 mVpp to 2.5 Vpp (against 50 Ω), 2 mVpp to 5 Vpp (open circuit)
  • Channel 3: Power amplifier 5 Hz to 100 kHz
    - 20 dB amplitude amplification; maximum output power: 20 W / 12.5 Vpp / 1.6 A
    - Maximum input voltage: 1.25 Vpp
  • Accurate arbitrary functions with 200 MSa / s sampling rate, 14 bit resolution and 16,000 points
  • Memory depth; 66 predefined curve shapes
  • Sweep, burst, trigger and modulation functions (AM, FM, PM, FSK, PWM)
  • Integrated frequency counter 5 Hz to 150 MHz, 8 bit
  • Informative and clear 4.3-inch color display (10.9 cm screen diagonal)
  • Interfaces: USB host / device
  • Earth-insulated design (housing and input / output terminals)
  • Power supply: AC 100 V ~ 240 V; 50 ~ 60 Hz
  • Dimensions: W 266 x H 107 x D 293 mm
  • Weight: approx.2.5 kg
    Delivery accessories: BNC cable (2x), quick start guide, power cord, CD-ROM with PC software and manual, free download: Arbitrary Waveform Editing Software
    Warranty: 2 years

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 3.24 MB

Description

MFG-2120MA | Function generator, 1-channel, arbitrary 20MHz, 10Vss, modulation, power 20dB, USB

The GW Instek MFG2120MA is a multi-channel function generator for generating arbitrary signals up to 20 MHz. For the standard signals, the function generator delivers a maximum frequency of 60 MHz (sine), 25 MHz for rectangular curves and 1 MHz for triangular and sawtooth curves.

The arbitrary function generator delivers accurate arbitrary curves with a sampling rate of 200 MSa / s, a repetition rate of 100 MHz, a 14 bit resolution and a memory for 16,000 data points.

The arbitrary signals (66 predefined waveforms) can be edited and edited using the device keyboard. CSV files from MATLAB and Excel can also be uploaded. With the oscilloscopes of the GDS series you can record your own curves and then transfer them to the generator. With the MFG PC software (free download) you can easily create and edit complex arbitrary waveforms, even with mathematical functions.

With the built-in 25 MHz pulse generator, the edge rise and fall times can be set. The pulses can be used as trigger signals.

This function generator is ideal for science, research & development, production, quality control and training.
