GW Instek GVM-9102 | Voltmeter / Multimeter, 6 1/2 Digits, 2 kV, USB, LAN, RS-232C, Digital I/O

Name: GVM-9102 | Voltmeter / Multimeter, 6 1/2 Digits, 2 kV, USB, LAN, RS-232C, Digital I/O
Brand: GW Instek
SKU: GVM-9102
Availability: InStock

Manufacturer number: GVM-9102

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

GW Instek GVM-9102 | Voltmeter / Multimeter, 6 1/2 Digits, DC Voltage Measurement up to 2,400 V, USB, LAN, RS-232C, Digital I/O, GPIB Optional.

Technical Data

Accuracy voltage measurement DC:	0,01 %
Article number:	GVM-9102
Dimensions (L x W x H) (mm):	301,8 x 266,9 x 107
Display:	4.3" graphic
Interfaces:	USB, RS-232, LAN, Optional: GPIB
Measurements per second:	10000
Model:	GVM-9102
Number of positions:	6.5
Weight (kg):	3.3
max. Measuring range DC (V):	2400
min. Measuring range DC (mV):	20000

Description

GVM-9102 | Voltmeter / Multimeter, 6 1/2 Digits, 2 kV, USB, LAN, RS-232C, Digital I/O

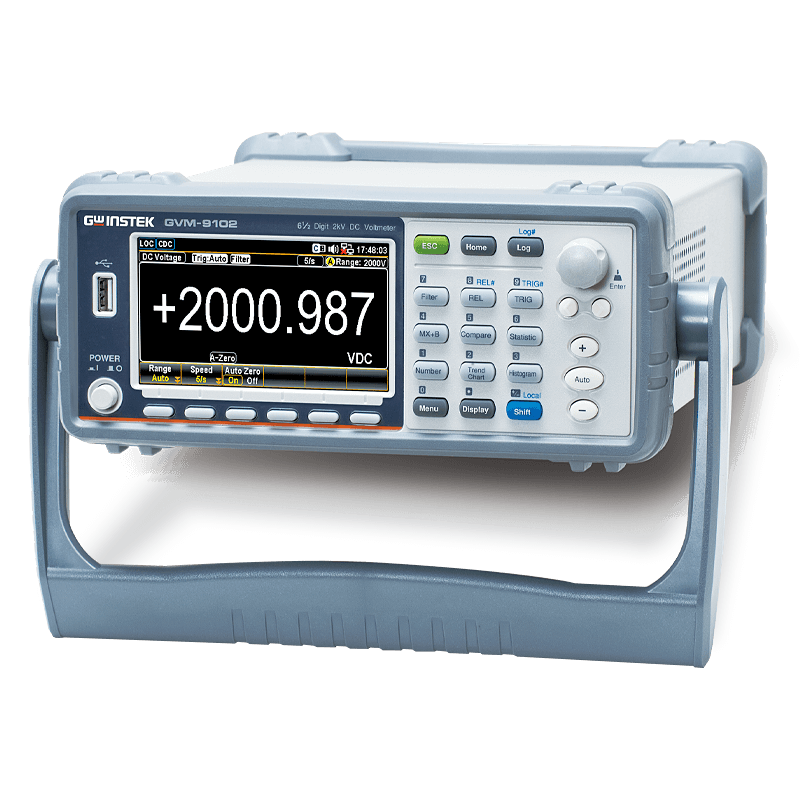

The GVM-9102 from GW Instek is a high-precision 6 ½-digit voltmeter designed for DC voltage measurements up to 2,400 V DC. With its high measurement accuracy and fast sampling rate, it is ideal for testing and analyzing energy storage devices, photovoltaic systems and DC power supplies.

The multimeter combines digital precision with graphical display and ease of use, making it a particularly valuable measuring instrument in R & D laboratories, production lines and system integration. Thanks to its versatility, it can be used both as a desktop device and in automated test systems.

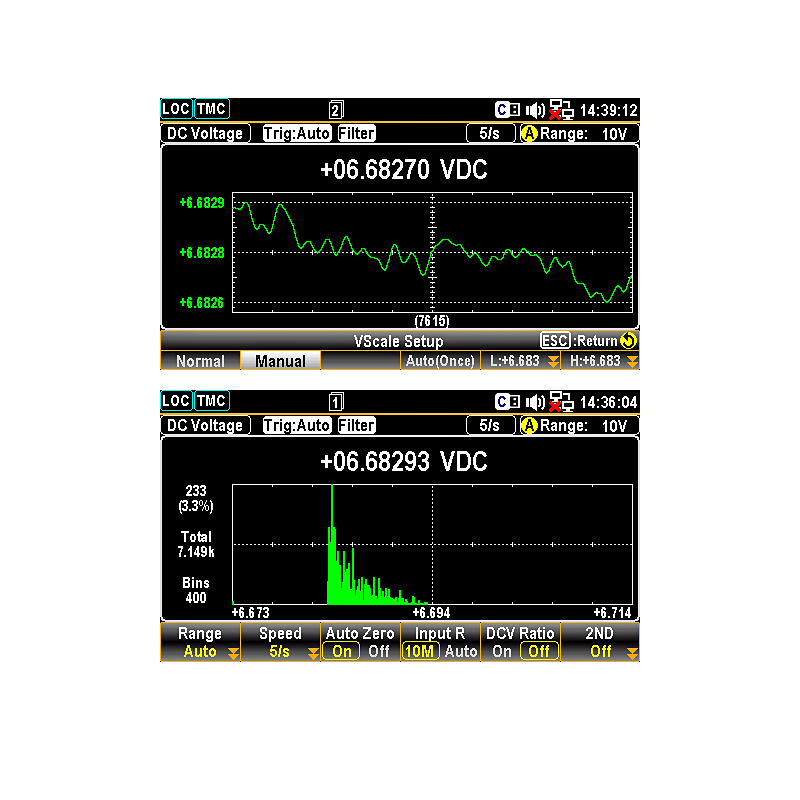

The GVM-9102 has a 4.3-inch TFT color display that can show bar charts, trend curves and histograms in addition to the classic numerical display. This enables visual and intuitive analysis of measurement results in real time. The integrated memory capacity of 100k data records supports long-term monitoring and statistical evaluations.

Functions such as automatic range selection, softkeys for numerical input, a variety of mathematical operations and a multilingual user interface make operation particularly user-friendly. Thanks to extensive interfaces - including USB, RS-232, LAN and optional GPIB - the device can be easily integrated into existing systems.

Product features:

Measuring accuracy: ±0.01%
Measuring range: up to 2.000 V DC (max. 2,400 V input protection)
Sampling rate: up to 10,000 measurements/second
Display: 4.3" TFT color display (WQVGA 480x272)
Mathematical functions: dB, dBm, comparison, MX+B, percent, 1/X
Statistical functions: Min, Max, Average, Peak-to-peak, Standard deviation

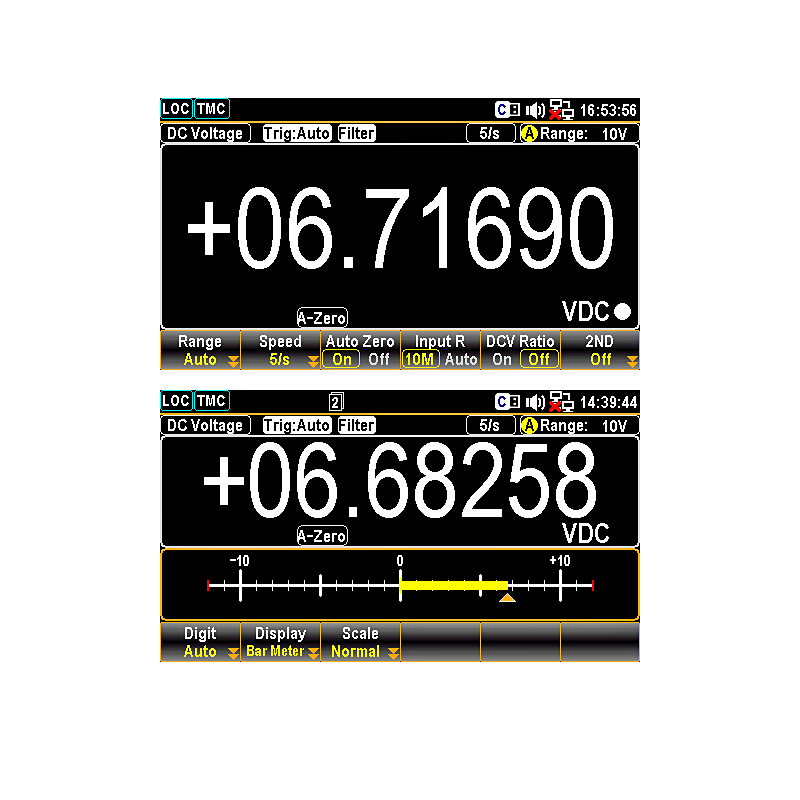

Display modes: number display, bar chart, trend chart, histogram
Memory: 100k internal memory locations

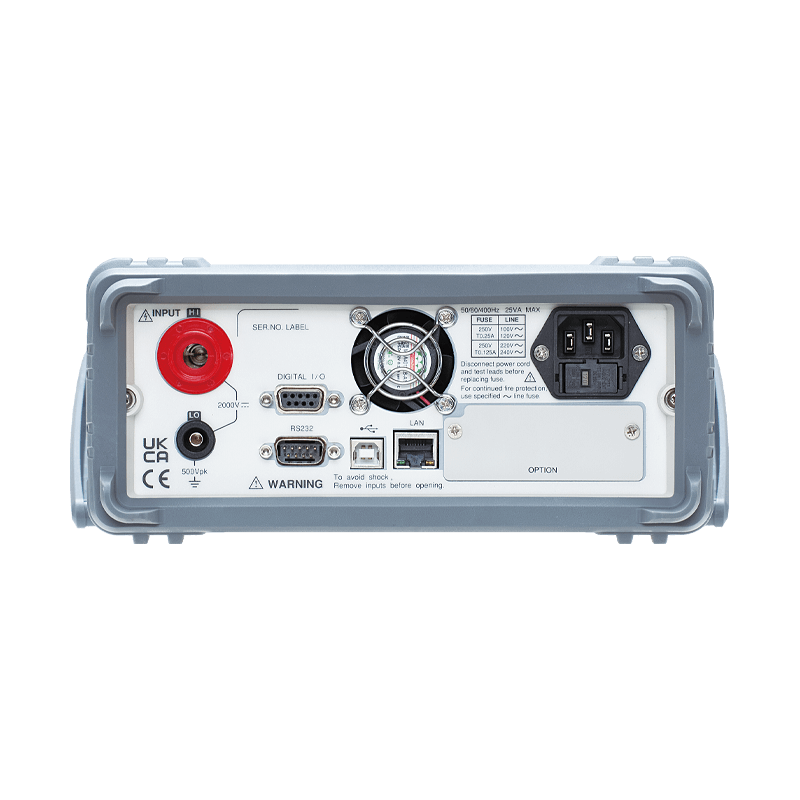

Interfaces: USB (host/device), RS-232C, LAN, digital I/O
Optional interface: GPIB (retrofittable)
Power supply: AC 100-240 V, 50/60/400 Hz
Dimensions (with bumpers): 107 x 266.9 x 301.8 mm (H x W x D)
Weight: 3.30 kg
Operating temperature: 0-55 °C at full accuracy
Warranty: 3 years
