GW Instek GPP-3650LG | DC power supply, 3 channel with load function, 2 x 36V/5A, 1 x 5V/5A, 385W, RS-232, USB, LAN, GPIB

Manufacturer number: GPP-3650LG

GW Instek GPP-3650LG | DC power supply, 3 channels with load function, 2 x 36V/5A, 1 x 5V/5A, 385W, RS-232, USB, LAN, GPIB.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

GPP-3650LG | DC power supply, 3 channel with load function, 2 x 36V/5A, 1 x 5V/5A, 385W, RS-232, USB, LAN, GPIB

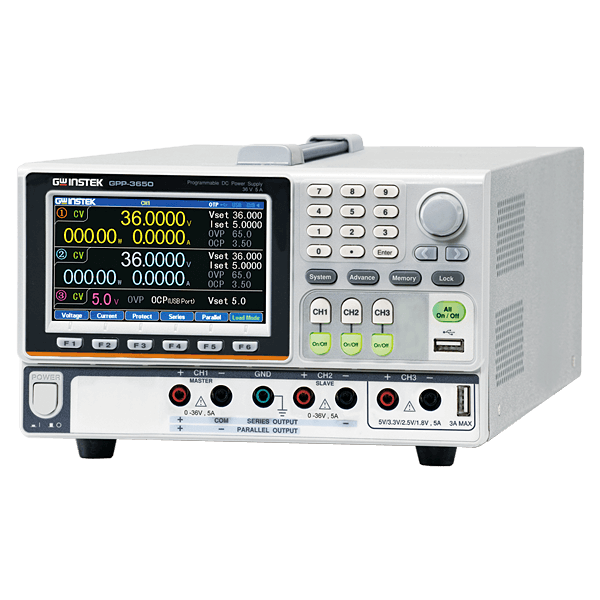

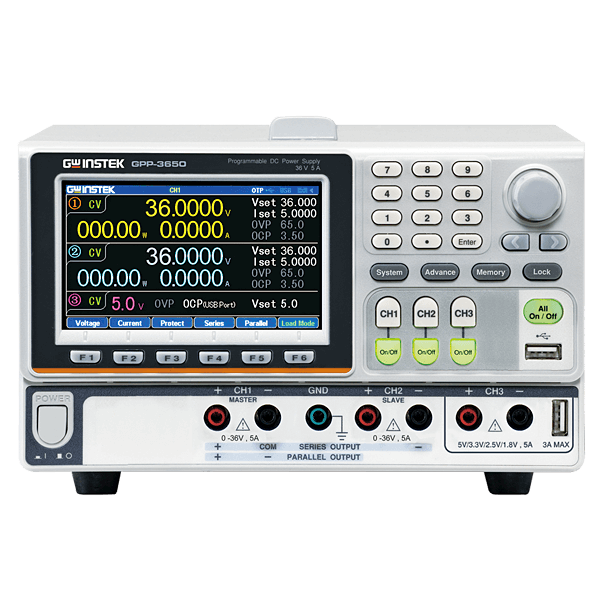

The programmable DC power supply GW Instek GPP-3650 power supply has 3 channels with integrated load function and is characterized by its flexibility and high performance. With a maximum output of 385 W, the power supply offers two channels with a variable output voltage of 0 to 36 V and an output current of 0 to 5 A, as well as a third channel with fixed voltages of 1.8 V, 2.5 V, 3.3 V and 5 V, each with a current of up to 5 A.

The power supply is characterized by very low noise, which is ≤1 mVrms and ≤2 mArms, and an extremely fast transient response time of less than 100 µs, which enables a precise and stable voltage supply. The high precision is further supported by a setting and readback accuracy of 1 mV/0.1 mA and 0.1 mV/0.1 mA respectively.

For safety, the power supply offers comprehensive protection mechanisms against overcurrent, overvoltage and overheating, which are implemented by the built-in hardware. For data acquisition and monitoring, the GPP-3650 offers advanced functions such as output monitoring and a recording function that records the voltage and current parameters with a minimum interval of one second.

The power supply is designed to be particularly user-friendly and has a 4.3-inch TFT LCD display that clearly shows both setting and measured values and output waveforms. It enables communication via USB, RS-232 and LAN. This variant has the factory-installed GPIB interface. You can also get the GPP-3650 without a GPIB interface (item no. GPP-3650L).

The GW Instek GPP-3650 power supply is ideal for use in research and development departments as well as in quality assurance within the electronics industry, where a precise and reliable power supply is essential. Overall, this power supply offers a combination of advanced technology, high user-friendliness and comprehensive features, making it an excellent choice for a wide range of applications.

Product features:

  • Maximum power of 385 W
  • Two channels with 0 to 36 V and 0 to 5 A output
  • Third channel with fixed voltages of 1.8 V, 2.5 V, 3.3 V and 5 V at 5 A each
  • Integrated load function
  • Very low noise (≤1 mVrms, ≤2 mArms)
  • Fast transient response time of less than 100 µs
  • High setting and readback accuracy (1 mV/0.1 mA or 0.1 mV/0.1 mA)
  • Comprehensive protection mechanisms against overcurrent, overvoltage and overheating
  • 4.3 inch TFT LCD display for clear display of setting and measurement values as well as output waveforms
  • Communication options via USB, RS-232 and LAN
  • Includes factory-installed GPIB interface
