GW Instek GPP-3610H | Power supply, DC, 1 channel, 36 V/10 A, 360 W

Manufacturer number: GPP-3610H

GW Instek GPP-3610H | Power supply, DC, 1 channel, 36 V/10 A, 360 W.

  • Programmable 1-channel DC power supply
  • Programming resolution: 1mV/0.2mA
  • Readback resolution: 0.1mV/ 0.2mA
  • Power output: 36V/10A
  • Load function: up to 100W
  • Built-in maximum constant voltage load ( CV): 36.5V
  • Built-in maximum constant current load (CC): 10.2A
  • Built-in maximum constant resistance load (CR): 1kΩ
  • Output recorder function
  • Over-voltage protection, over-current protection and over-temperature protection
  • Delay function, output monitoring function
  • Sequential Output function and 8 built-in template waveforms
  • Intelligent temperature-controlled fans

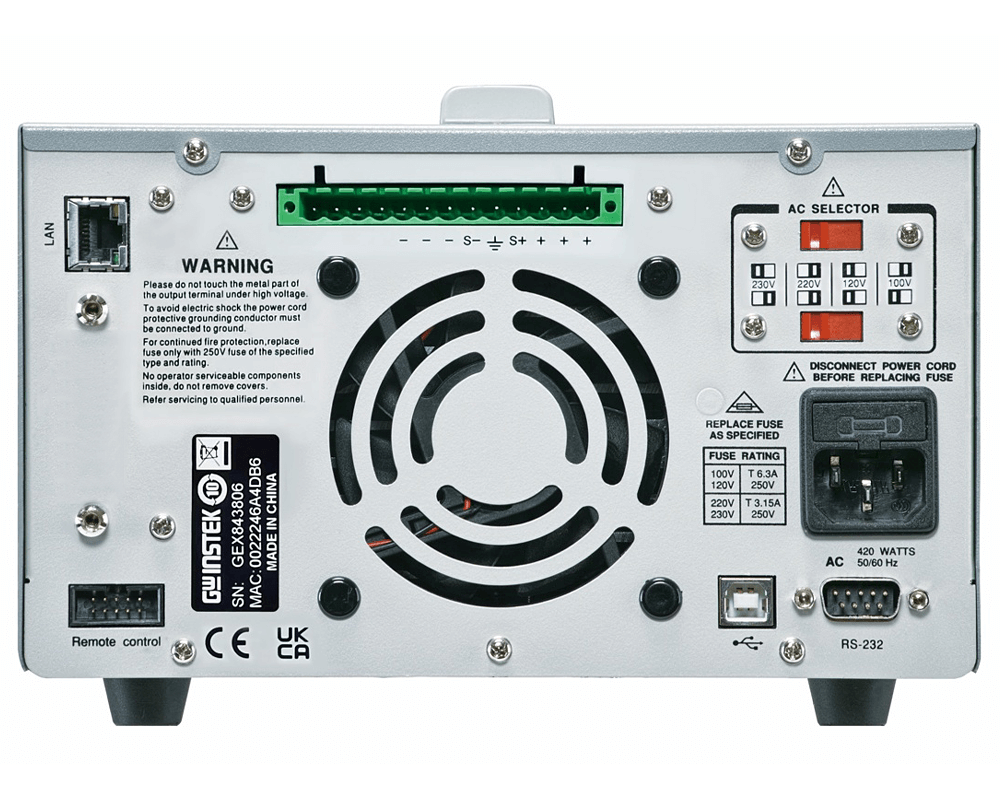

  • Standard interface: RS-232, USB, Ext I/O

  • Optional interface (factory option): LAN / LAN & GPIB

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

GPP-3610H | Power supply, DC, 1 channel, 36 V/10 A, 360 W

The GW Instek GPP-3610H is a programmable 1-channel DC power supply from the GPP series, which is characterized by its high programming resolution of 1 mV/0.2 mA and a readback resolution of 0.1 mV/0.2 mA distinguishes. It offers a variety of display modes including channel setting values, readings and waveform display.

With a power output of 36V/10A, the GPP-3610H is designed with a load function of up to 100W. It has a built-in maximum constant voltage (CV) load of 36.5V, a maximum constant current load (CC) of 10.2A and a maximum constant resistance load (CR) of 1kΩ.

< p>The GPP series provides an output recorder function, which can record the voltage/current of the output process in the internal memory. The results can be saved as a (.REC) or (.CSV) file and transferred to a USB stick. The saved *.CSV can later be exported to Excel for analysis.

The GPP-3610H uses hardware to realize over-voltage protection, over-current protection and over-temperature protection. It has a delay function as well as an output monitoring function.

With the GPP series output monitoring function, users can set monitoring conditions according to their needs, generate an alarm or stop the output during the measurement process, stop the measurement and protect the customer's DUT.

Both the GPP-3610H and GPP-7250 offer the sequential output function, which allows users to not only edit the power output waveform but also a sequence of constant voltage (CV) or constant current (CC) load waveform.

Intelligent, temperature-controlled fans effectively reduce the noise level.

The GPP-3610H is also optionally available with LAN or LAN & GPIB interface (factory option).

Accessoires (1 product )

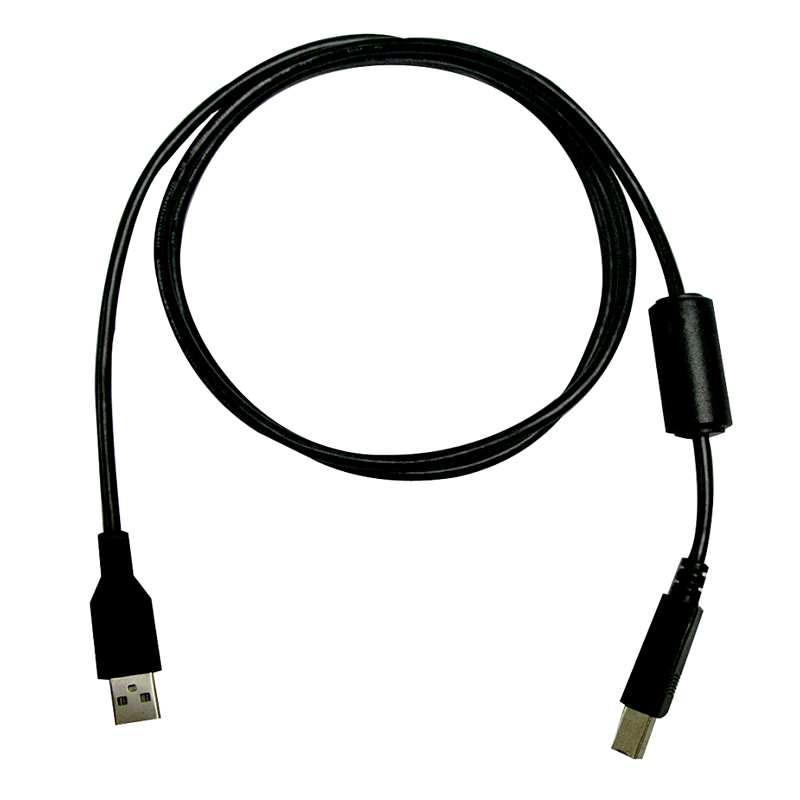

GW Instek GTL-246
USB cable type A to type B 1.2m for GDS / GLA / GSP / GPD / GLC9000 / AFG2000 / 3000 / PEL
Delivery time upon request
CHF 11.00

Alternate products (3 products )

GW Instek GPP-3610H-GPIB
Power supply, DC, 1 channel, 36 V/10 A, 360 W, LAN & GPIB
Delivery time upon request
CHF 1,086.30 CHF 1,207.00

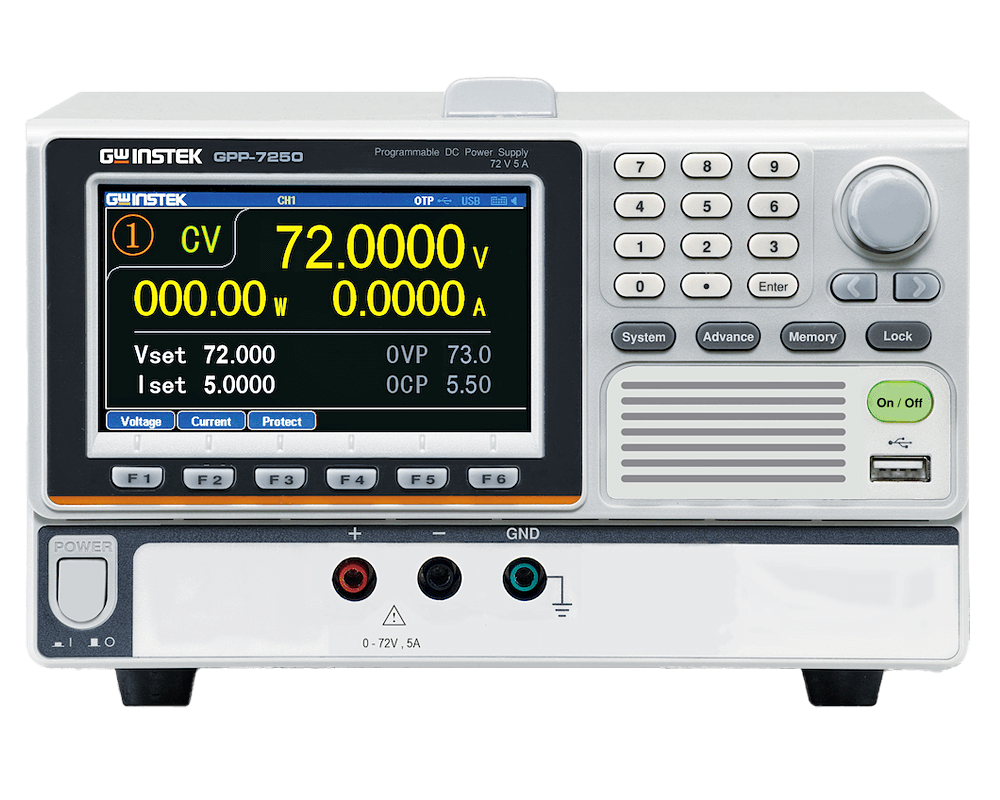

GW Instek GPP-7250
