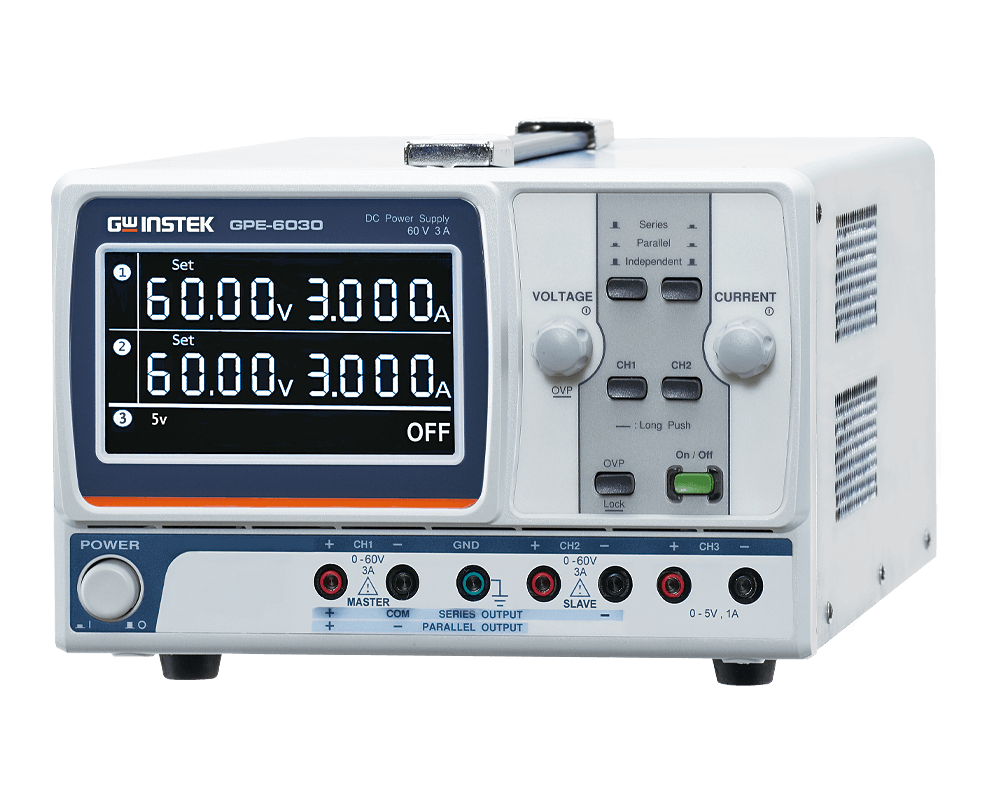

GPE-6030 | DC power supply, 3 channel, linear, 2x60V / 2x3A / 5V / 5A / 385W

The high-resolution linear DC power supplies GPE-3060 / GPE-6030 from GW Instek deliver an output power of 385 watts and have three independent, isolated output channels. In addition to the independent output of the individual channels, you can set the power supplies to automatic series and parallel connection. This allows the output of channels 1 and 2 to be controlled to 30 V / 12 A (parallel connection with GPE-3060) or 120 V / 3 A (series connection GPE-6030).

In terms of high programming resolution, the GPE-3060 offers 10 mV / 2 mA and the GPE-6030 20 mV / 1 mA. The power supplies use a new hybrid power supply that can save 13% of power consumption compared to conventional linear power supplies and whose volume and weight are significantly reduced.

The power supply is available in two versions:

The GPE-3060 offers 0 to 30 V / 0 to 6 A for channel 1 & 2, while the GPE-6030 supports 0 to 60 V / 0 to 3 A. Both models have a 3rd channel with 1.8V / 2.5V / 3.3V / 5.0V at 5A.

Product Features:

3 independent, isolated outputs:

GPE-3060: CH1/CH2: 0 ~ 30V / 0 ~ 6A, CH3: 1.8V, 2.5V, 3.3V, 5.0V at 5A
GPE-6030: CH1/CH2: 0 ~ 60V / 0 ~ 3A, CH3: 1.8V, 2.5V, 3.3V, 5.0V at 5A

Series / Parallel connection
High programming resolution of 10 mV / 1 mA and measurement resolution of 30 mV / 10 mA
Output On/Off function
Easy-to-use analog control interface
Protection mechanisms such as OV, OL

Alternate products (1 products )

Alternate products (1 product )

New

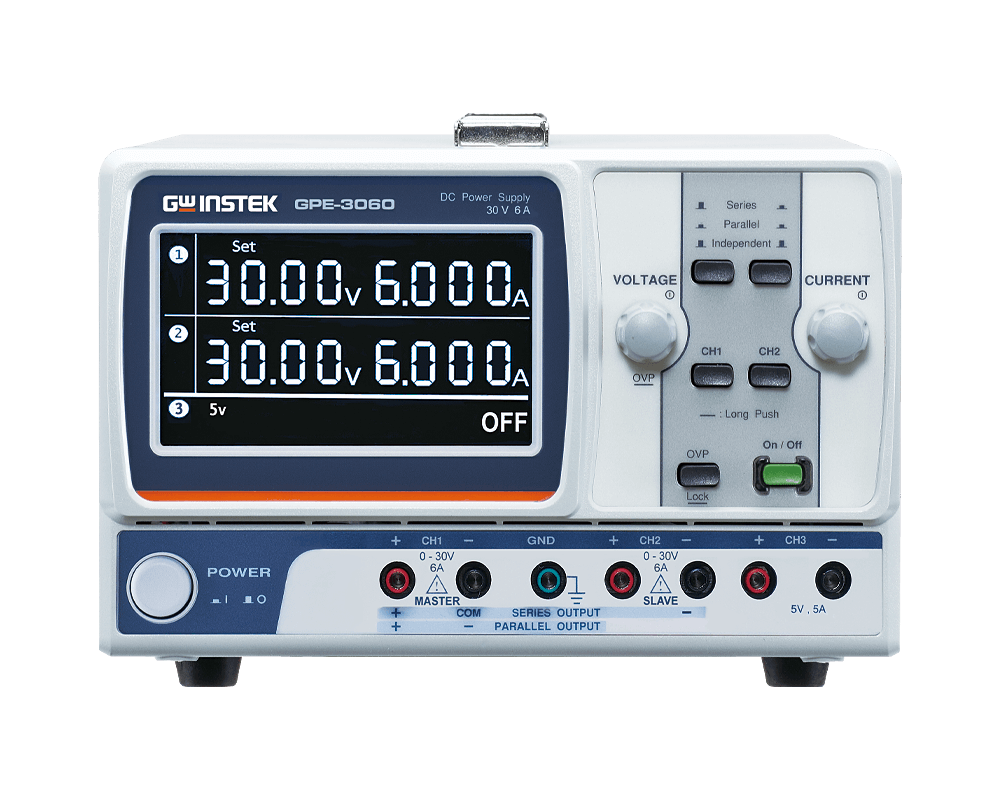

GW Instek GPE-3060
