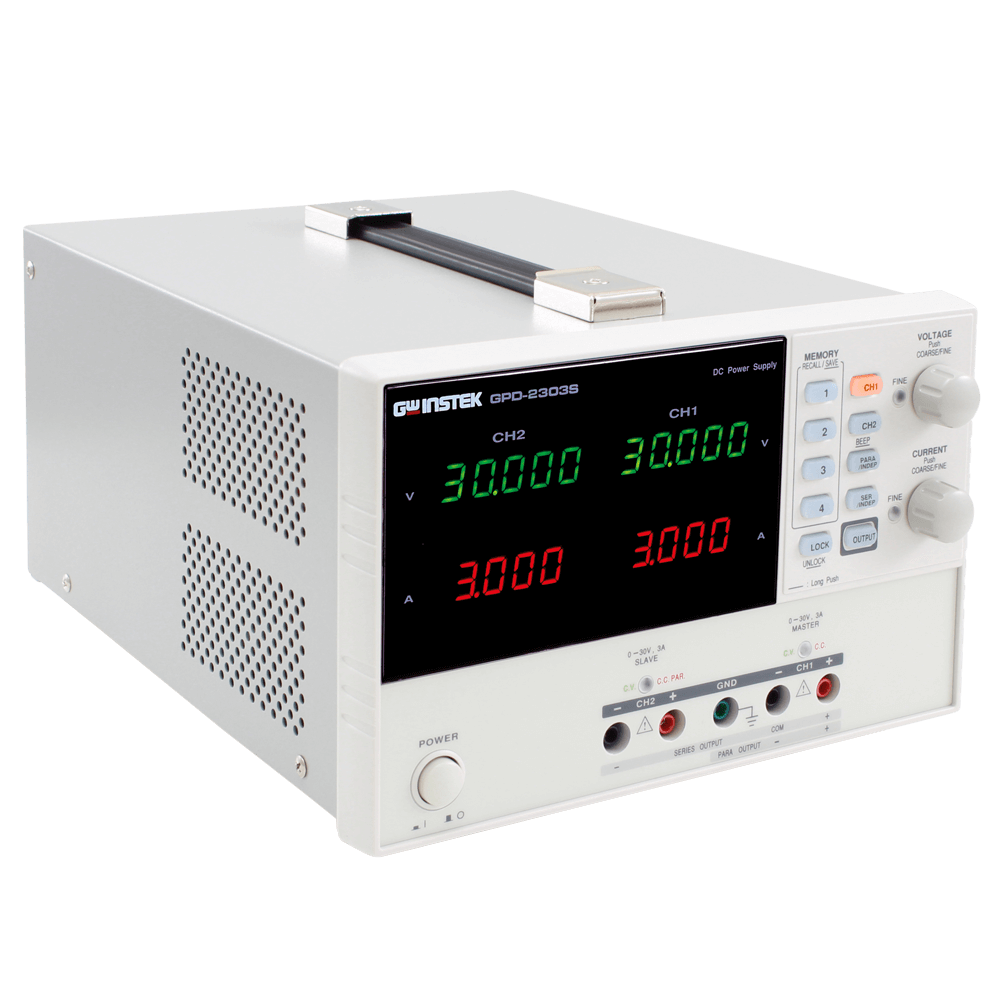

GW Instek GPD-2303S | Power supply unit, DC, 2 channels, linear 30V / 3A, 180W, USB

Manufacturer number: GPD-2303S

GW Instek GPD2303S / power supply, DC, 2 channel, linear 2x 30V / 3A, 180W, USB

  • Two independent and isolated channels
  • Output voltage DC: 0 - 30 V (each for both channels)
  • Output current DC: 0 - 3 A (each for both channels)
  • Four-part LED display to show voltage and current per channel: 3 digits after the decimal point
  • Minimum resolution: 1 mv or 1 mA

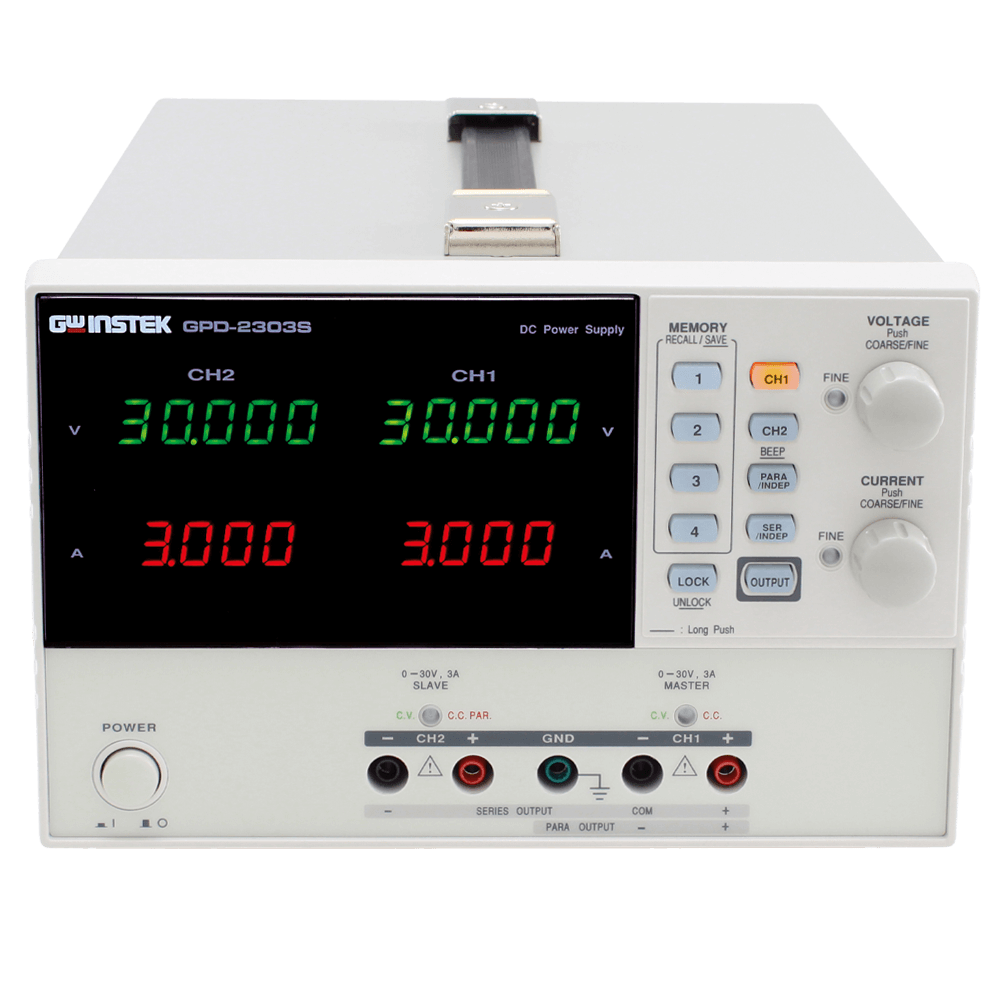

  • Digital front panel setting with rotary knob and button with displays
  • Coarse / fine adjustment
  • Four parameter sets can be saved and called up directly
  • Protection against unintentional adjustment of the setting values
  • Output switching on and off
  • Series and parallel connection of the two outputs possible

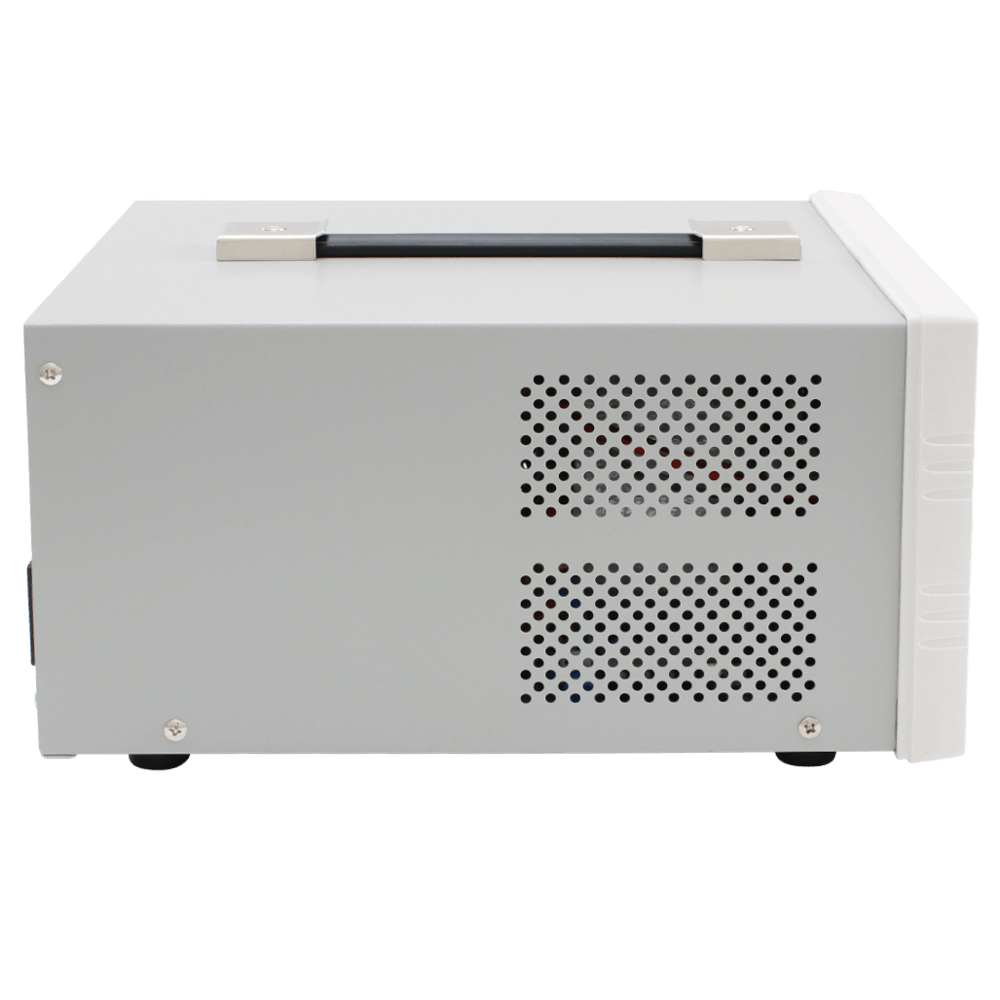

  • Integrated and speed-controlled fan with very low noise
  • Interface: USB
  • PC software and USB driver
  • Labview driver
  • Dimensions: W 210 mm x H 130 mm x D 265 mm
  • Weight: approx. 7 kg

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

GPD-2303S | Power supply unit, DC, 2 channels, linear 30V / 3A, 180W, USB

The GPD-x303S series power supplies are based on the experience and technology that GW INSTEK has accumulated over decades of power supply development. The linearly controlled devices of the series enable control and parameter settings via the front panel as well as via the USB interface. The large, bright LED display with additional LED indicators speaks for reliable reading of the output or setting values. The output voltage or the output current can be set very finely. In addition, a memory set of 4 parameters facilitates the quick setting of a previously saved parameter set.

High resolution: With a setting accuracy of 1 mV or 1 mA through a coarse / fine setting, stable and precise voltage and current values can be set with the GPD-x303 series. With this series, influences of small deviations in the supply voltage or current on the DUTs (Device Under Test) to be tested can be determined.

Accessoires (3 products )

PMK 972-405-100
Alligator clip, 4mm safety socket, 1000V, Cat II, black
2 in stock. Ready to ship in 1 business day
CHF 7.00
PMK 934-062-100
Test lead, stackable, 100cm, black MLN 100/1-SW
Delivery time upon request
CHF 8.00
PMK 972-405-101
Alligator clip, 4mm safety socket, 1000V, Cat II, red
2 in stock. Ready to ship in 1 business day
CHF 7.00

Alternate products (7 products )

GW Instek SPD-3606
Power supply unit, DC, 3 channels 2x 30 (60) V / 6 (3) A, 0.1-5V / 3A, 375 watts
Delivery time upon request
CHF 749.00
GW Instek GPS-4303 DC power supply, 4-channel
3 in stock. Ready to ship in 1 business day
CHF 419.00
GW Instek GPS-1850D
Power supply unit, DC, 1 channel, linear 18V / 5A, 90W, digital display
Delivery time upon request
CHF 226.00

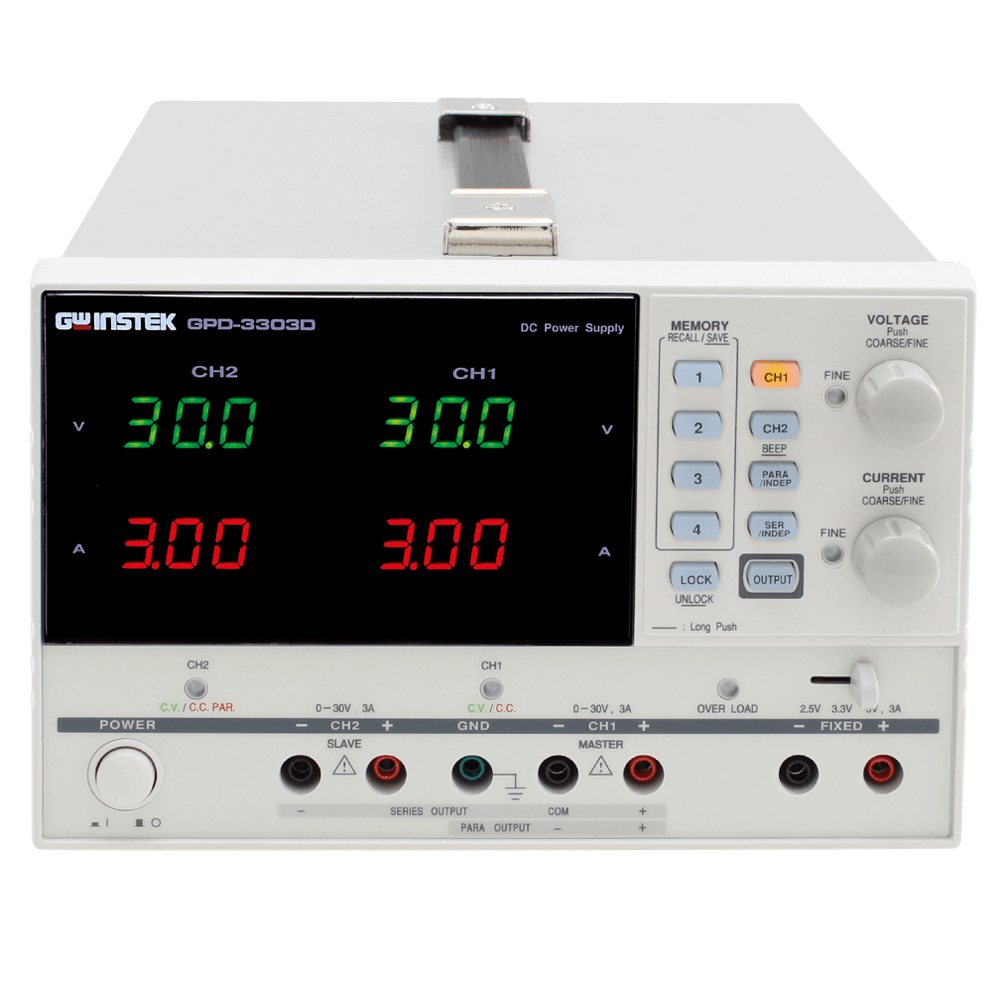

GW Instek GPD-3303D
Power supply, DC, 3 channel, linear 30V / 3A, 195W, USB
Delivery time upon request
CHF 561.00
GW Instek GPS-3303
Power supply unit, DC, 3 channel, linear 2x 30V / 3A, 1x 5V / 3A fix, 195W
Delivery time upon request
CHF 388.00

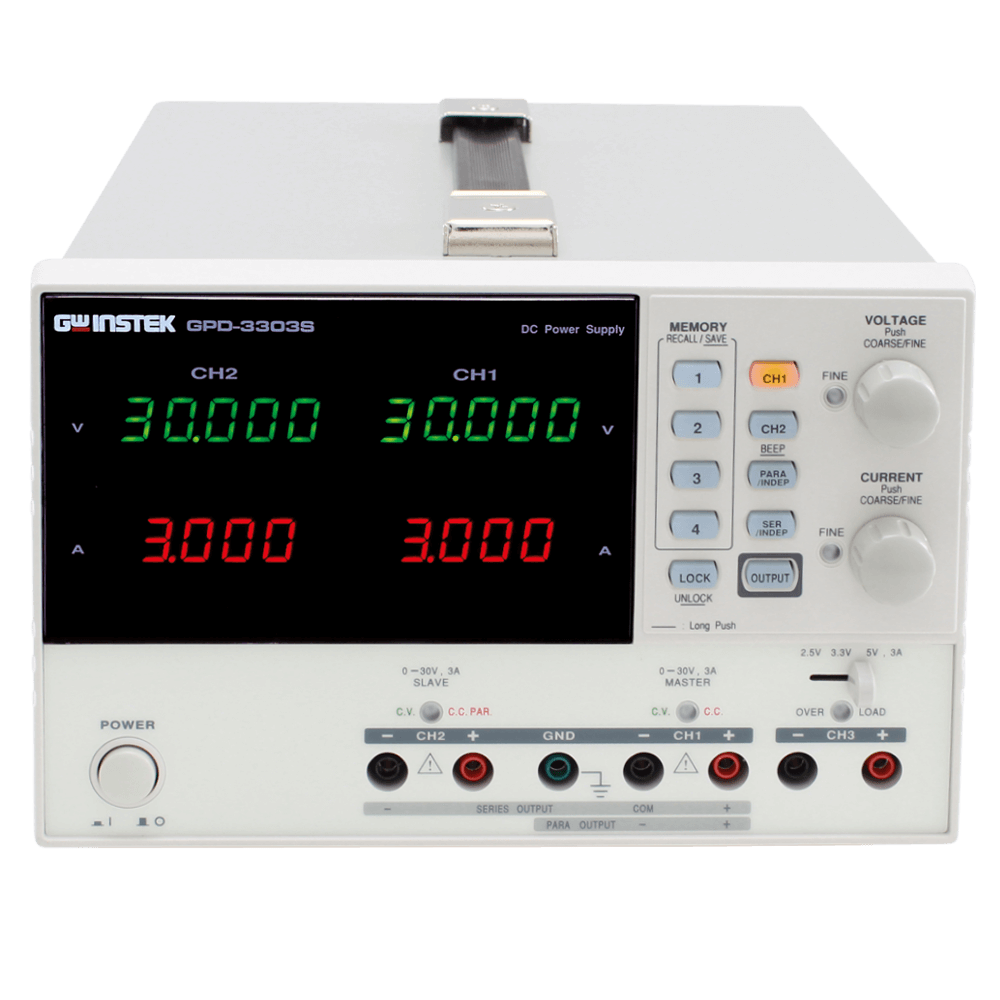

GW Instek GPD-3303S
Power supply, DC, 3 channel, linear 30V / 3A, 195W, USB
Delivery time upon request
CHF 602.00

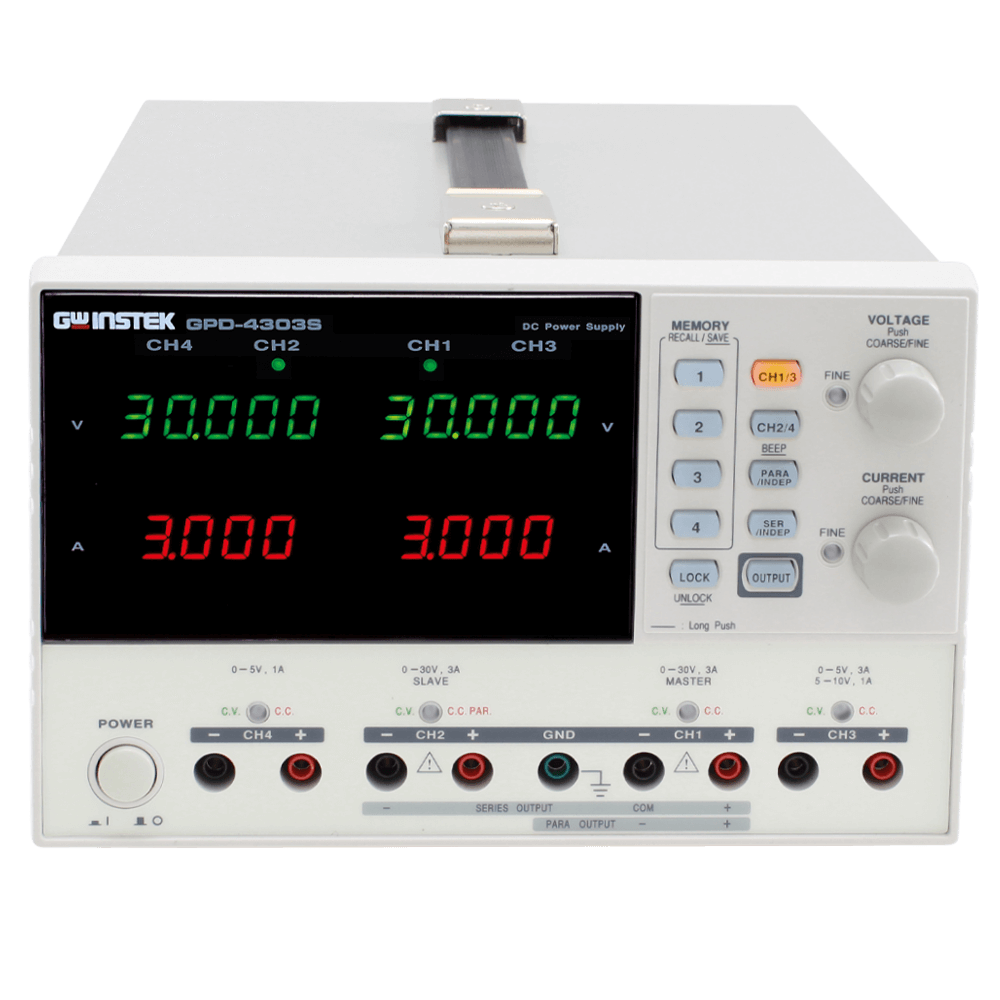

GW Instek GPD-4303S
