GW Instek GDS-2074E | Oscilloscope, 4 channels, 70 MHz, 1 GSa / s, 120,000 wfm / s, 10 MPts, USB, LAN

Manufacturer number: GDS-2074E

GW Instek GDS2074E / 4-channel digital memory oscilloscope with 70 MHz bandwidth, 1 GSa / s sampling rate, 10 MPts memory and segmented memory.

  • Analog bandwidth: 70 MHz
  • Channels: 4
  • Standard 10 MPts memory
  • VPO (Visual Persistence Oscilloscope) Waveform Display Technology for more signal information similar like with analog oscilloscopes
  • Signal acquisition rate: 120,000 Wfm / s
  • 1GSa / s real-time sampling rate
  • Low noise floor for small signal measurement
  • Vertical sensitivity: 1 mV / div ... 10 V / div
  • Bandwidth limitation can be switched on 20 MHz
  • Input impedance selection 1 MΩ II 16 pF
  • Time base (/ div) 1 ns to 100 s
  • Acquisition modes: normal, averaging, peak detect, single
  • Measuring system: 36 automatic measurements
  • High and low pass digital filter functions
  • 29,000 sections for segmented memory and waveform search functions
  • Data logging function tracks signal changes up to 100 hours
  • Trigger types: edge, pulse width, video, runtime, rise and fall time, alternate, time out, event delay (1 ~ 65,535 events), time delay (duration; 4 ns ~ 10 s)
  • I²C / SPI / UART / CAN / LIN serial bus trigger and decoding function
  • Signal processing: +, -, x, +, FFT, FFTrms, User Defined Expression
  • FFT 1MPts (Higher Frequency Domain Resolution Measurement)
  • Display: 8 inches (20.32 cm diagonal) WVGA TFT LCD display / 800x480px
  • Storage: Graphics (BMP, PNG), CSV, setups, 32 MB internal memory
  • Interfaces: 1 x LAN, 1 x USB host, 1 x USB device
  • Software: PC software OpenWave software, LabView driver - free download
  • Weight: 2.8 kg
  • Dimensions: W384 x H208 x D127 mm

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

GDS-2074E | Oscilloscope, 4 channels, 70 MHz, 1 GSa / s, 120,000 wfm / s, 10 MPts, USB, LAN

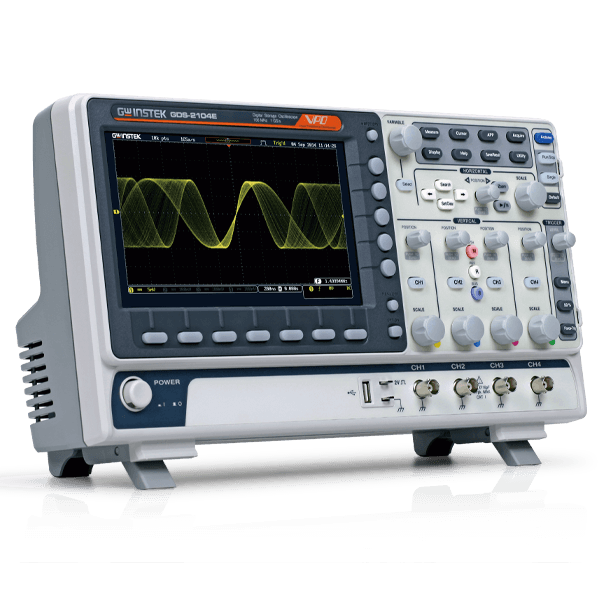

The GDS-2000E series oscilloscope offers a bandwidth of 70 MHz and a real-time sampling rate per channel of 1 GSa / s. The display and the 1 mV / div vertical resolution enable the GDS-2000E series to measure complex and weak signals and to present the clear measurement results.

The oscilloscopes of the GDS-2000E series offer a memory depth of unbelievable 10 Mpts as standard to get the signal completely and to analyze it.

With the standard segmented memory function, the acquisition memory is max. 29,000 segments divided in order to optimally use the memory depth of 10 Mpts available to you. It can be triggered on waveforms that are of particular interest and saved in the segmented memory (you fill a segment with each trigger event). This increases the storage effectiveness enormously.

Lieferumfang

  • Power cord, operating instructions, 10: 1 probe per channel, CD with documentation
  • 3 year guarantee
