GW Instek GDM-8255A | Multimeter, table, VFD display dual, 5 1/2 digits 120,000 digits, TRMS, 1000 V, 10 A, USB, RS232

Manufacturer number: GDM-8255A

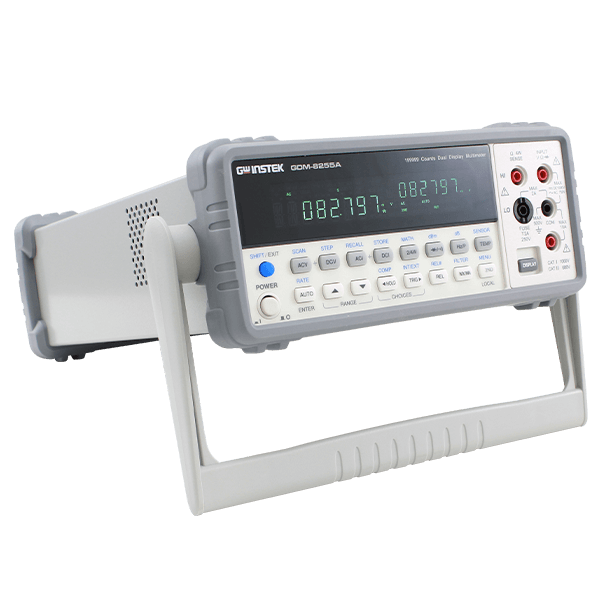

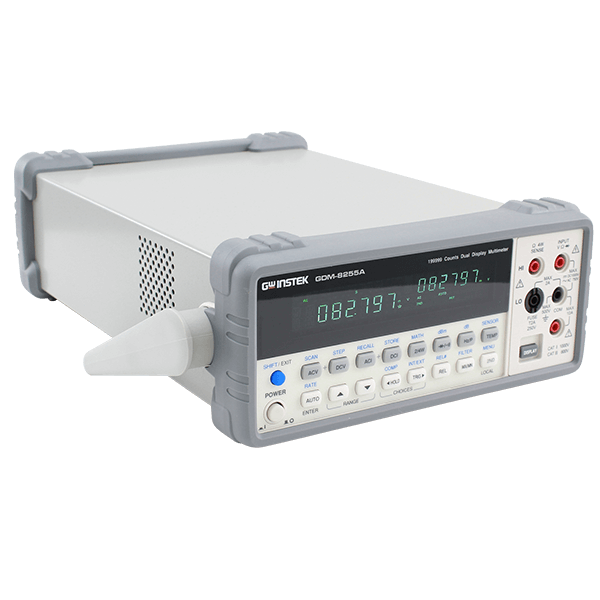

GW Instek GDM-8255A | 5½-digit (199,999 digits) digital multimeter with 2 measured value displays.

  • 5½-digit (199,999 digits) display
  • Accuracy with DC voltage measurement: 0.012%
  • True RMS AC, AC + DC
  • 9 measurement functions and 10 further derived measurement functions
  • 2-wire / 4-wire resistance measurement
  • Maximum measuring ranges for voltage: 1000 V and for current: 10 A.

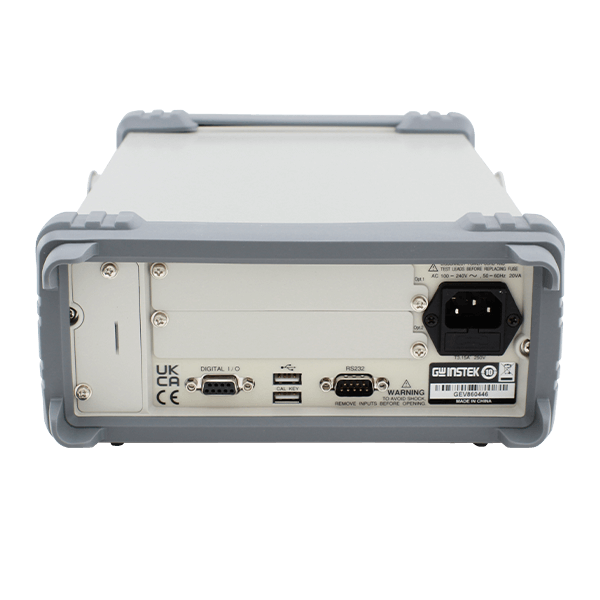

  • Interfaces: RS232, USB, digital I / O
  • Free software (DMM-VIEWER), LabVIEW driver
  • Optionally available: scanner card for 16 channels with 2-wire measurements
  • Dimensions: width 265 mm x height 107 mm x depth 350 mm
  • Weight: 2.6 kg
  • Warranty: 3 years

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

GDM-8255A | Multimeter, table, VFD display dual, 5 1/2 digits 120,000 digits, TRMS, 1000 V, 10 A, USB, RS232

The 5 ½-digit GDM-8255A digital multimeter from GW Instek hides some measuring functions that are not available with classic multimeters.

The GDM8255A offers a number of standard measurements that can be shown simultaneously on the dual display. Another measurement value can be shown and observed with the second display. If display 1 shows either ACV or DCV or ACI or DCI or resistance (2-wire measurement) or frequency or period of a measurement, the values of ACV or DCV or ACI or DCI can be shown in the second display or frequency or period of another measured value are displayed simultaneously.

Additional measurement functions such as dB / dBm, max / min, comparisons, relative measurements, four-wire resistance measurements, frequency and period as well as temperature measurements are part of the measurement scope as well as mathematical calculations with the measured values are possible.

The accuracy of this device for direct voltage measurements is 0.021% with short measuring times.

Via the interfaces USB, RS232 and a 9-pin I / O interface, the device for ATE (Automatic Test Equipment) purposes can be controlled via the PC or the measured values can be transferred from it. The optionally available scanner card GDM SC1 extends the maximum measurable number of channels to 16 values (for two-wire measurements) or 8 values (for four-wire measurements), which can be measured with a GDM-8255A. The scanner card is inserted directly into the measuring device.
