GW Instek DAQ-908 | 20-channel actuator/general purpose switch, SPDT relay, 300V/1A actuator for DAQ-9600 data logger

Manufacturer number: DAQ-908

GW Instek DAQ-908 | 20-channel switching module, SPDT relay, 300V/1A actuator for data logger DAQ-9600.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

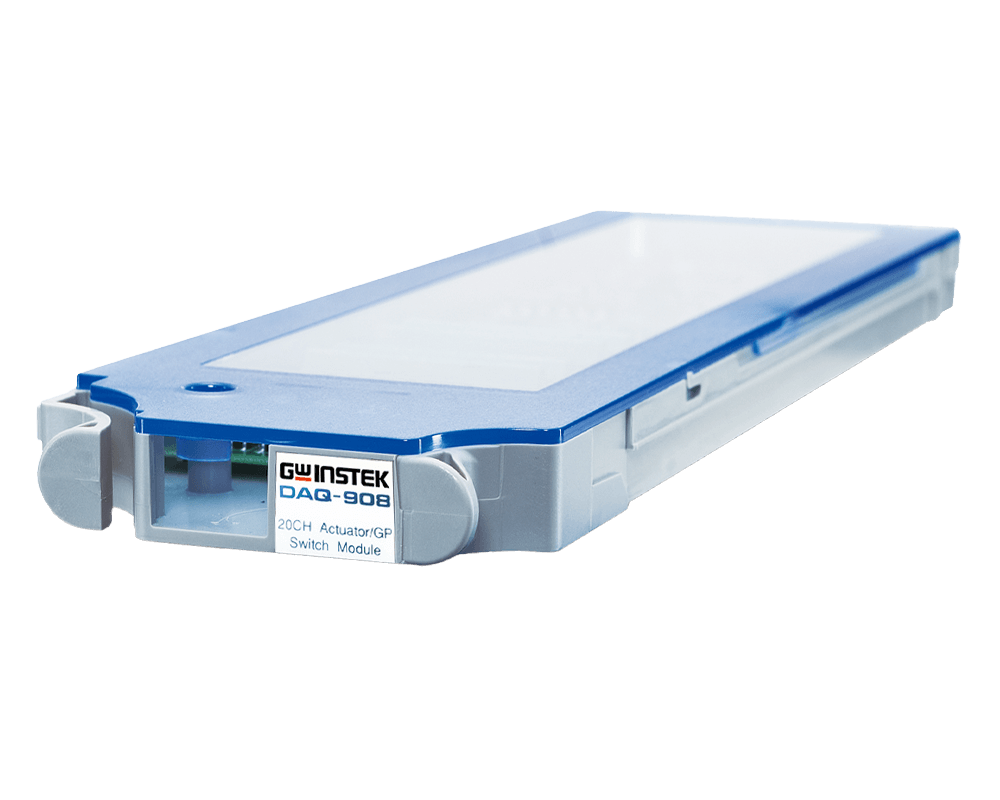

DAQ-908 | 20-channel actuator/general purpose switch, SPDT relay, 300V/1A actuator for DAQ-9600 data logger

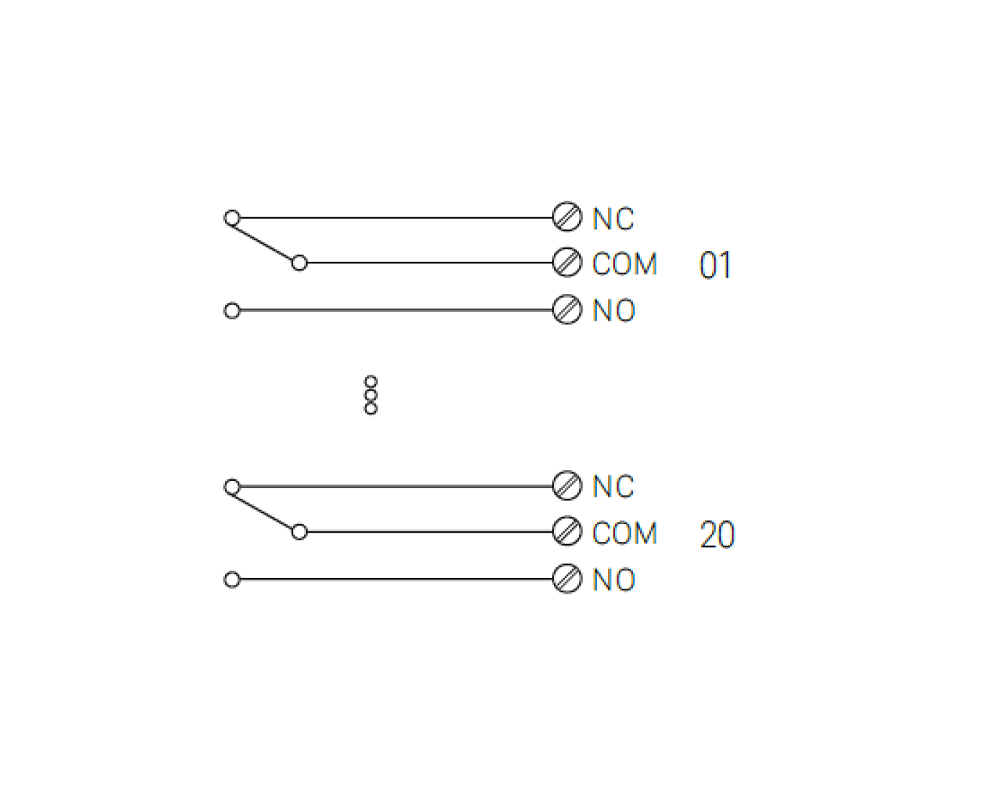

The DAQ-908 is a universal switching module with 20 independent SPDT (Single Pole Double Throw) relays that can be used for various applications such as power cycling of devices under test (DUTs), control of indicator lights and status indicators. The DAQ-908 can also activate external power relays and solenoid valves. In combination with matrix and multiplexer modules, application-specific switching systems can be configured. The DAQ-908's contacts support voltages up to 300 V and currents up to 1 A, allowing power up to 50 W to be switched - ideal for numerous power switching applications. The modular structure of the DAQ-9600 offers three module slots and six optional modules, including universal modules (DAQ-900/DAQ-901), a multifunction module (DAQ-903), a matrix module (DAQ-904), the switching module (DAQ-908) and a high voltage and high current module (DAQ-909). You can freely combine the modules and adapt them to the respective measurement requirements. As a digital multimeter (DMM) is integrated, the slot remains free, offering maximum flexibility to expand the channels to up to 60 two-wire channels, 120 single-ended channels or 96 matrix crosspoints.

Accessoires (2 products)

DAQ-9600
GW Instek
DAQ-9600
Datenlogger- / Schaltsystem, Mainframe, Grundgerät, 3 Slots, USB, LAN
3 in stock. Ready to ship in 1 business day
CHF 1,773.00
DAQ-9600-GPIB
GW Instek
DAQ-9600-GPIB
Datenlogger- / Schaltsystem, Mainframe, Grundgerät, 3 Slots, USB, LAN, GPIB
Delivery time upon request
CHF 2,222.00

Alternate products (3 products)

DAQ-900
GW Instek
DAQ-900
20-Channel Universal Multiplexer Module (Solid State Relay) for Data Logger DAQ-9600
4 in stock. Ready to ship in 1 business day
CHF 735.00
DAQ-901
GW Instek
DAQ-901
20 + 2-channel universal multiplexer module (Armature Relay) for DAQ-9600 data logger
Delivery time upon request
CHF 500.00
DAQ-909
GW Instek
DAQ-909
8 + 2-channel high voltage/current multiplexer module for DAQ-9600 data logger
5 in stock. Ready to ship in 1 business day
CHF 622.00

About the Manufacturer

GW Instek
GW Instek was founded in 1975 as Good Will Co. Ltd in Taiwan. Since the beginning, the company has specialized in the development and production of electronic test and measurement equipment. The first product focus was power supplies. Today, Good Will has more than 300 different products from the fields of oscilloscopes, spectrum analyzers, signal generators, digital multimeters and LCR measuring instruments in its program.

Good Will has been listed on the Taiwan Stock Exchange since 2000. Development and production focus on high quality and low cost measuring instruments for production, laboratory and education. Headquartered in Taipei, Good Will has subsidiaries in China, America, Japan, Korea and Malaysia. The products are sold in over 80 countries.
