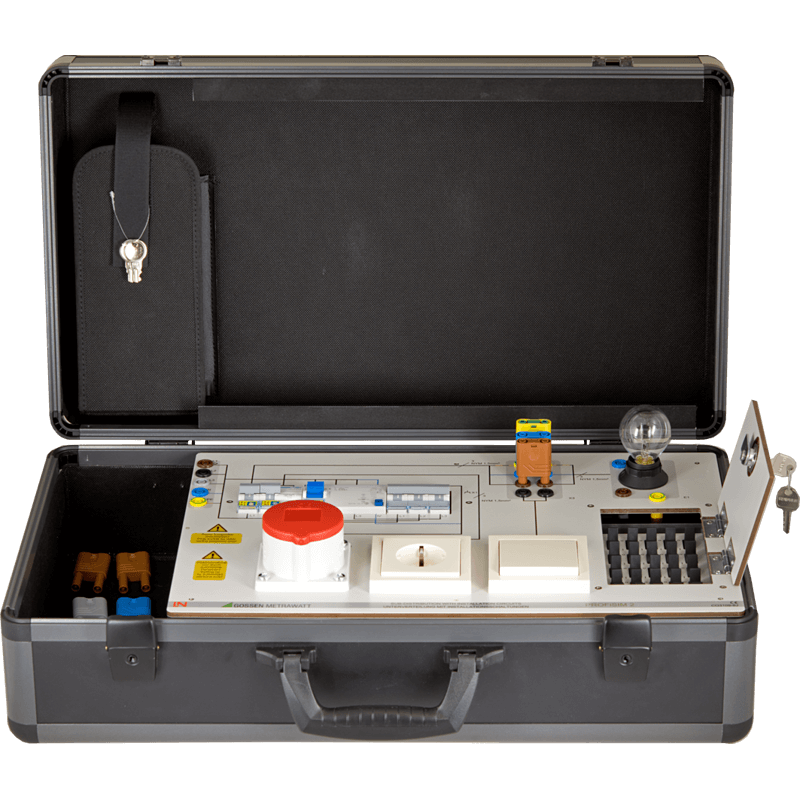

Gossen Metrawatt M560B | PROFiSIM 2, installation board with the possibility of simulating errors for measurements

Manufacturer number: M560B

Gossen Metrawatt M560B | PROFiSIM2 installation board "sub-distribution with installation circuits" for fault simulation for measurements according to IEC 60364.6 and EN 50110 (DIN VDE 0100-600, 0105-100).

  • House connection with main earthing rail
  • Simulation of errors over 25 switches
  • Single and double fault circuit
  • Lockable fault simulator
  • Desk-shaped housing
  • Use as a tabletop device or in an experiment frame

Target groups

Target group teaching staff (qualified electricians):

  • Teacher
  • Trainer
  • instructor
  • Laboratory manager

Target group learners:

  • trainee
  • college student
  • apprentice

Test contents:

  • Replica of a small sub-distribution with 3 circuits
  • Testing of various protective devices
  • Main earthing rail with all the important equipotential bonding lines and strip earthing
  • Troubleshooting installation circuits
  • Preparation of measurement reports according to DIN VDE 0100

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

M560B | PROFiSIM 2, installation board with the possibility of simulating errors for measurements

The installation board represents a compact house feed with main earthing rail for a consumer system including a fault simulator. It is preferably used for all training measures and project work on the subject of "testing a system according to DIN VDE 0100-600". The board contains all the necessary components for a house feed with extended main earthing rail to implement test and fault options.

Accessoires (1 product )

Gossen Metrawatt Z560A
PROFiSIM case with logo and inside pocket for transporting the installation boards
Ready to ship in 5 to 10 business days
CHF 373.00

Alternate products (1 product )

Gossen Metrawatt M560A
PROFiSIM 1, installation board with the possibility of simulating errors for measurements
Delivery time upon request
CHF 3,034.50
