Gossen Metrawatt M514R | PROFITEST REMOTE test adapter for PROFITEST MTECH +, MXTRA and PRIME

Manufacturer number: M514R

Gossen Metrawatt M514R
Gossen Metrawatt M514R
Gossen Metrawatt M514R
Gossen Metrawatt M514R
Gossen Metrawatt M514R
Gossen Metrawatt M514R
Ready to ship in 5 to 10 business days

CHF 1,434.00

plus VAT. CHF 1,550.15 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M514R | PROFITEST REMOTE, 3-phase test adapter for measuring loop and network impedance as well as insulation resistance.

  • Measurement category CAT III 300V
  • Measurement of the loop and network impedance ZL-PE and ZL-N
  • Measurement of the insulation resistance RISO with up to 500 V DC
  • Connection to the test device via 3-pole PRO-SCHUKO test adapter or via 4 mm safety sockets L, N and PE
  • Control of the test adapter via the connected test device
  • Connection to the system via 4 mm safety sockets L1, L2, L3, N and PE
  • Data communication via interface
  • No offset determination necessary due to 4-wire measurement
  • Signaling of the line connection via LED
  • Dimensions (WxHxD): 275 mm x 105 mm x 120mm
  • Weight: approx. 1.1 kg (test adapter without cable)

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.35 MB
Userguide
pdf | 0.25 MB

Description

M514R | PROFITEST REMOTE test adapter for PROFITEST MTECH +, MXTRA and PRIME

The 3-phase test adapter PROFITESTB REMOTE M514R can be used with the test devices PROFITEST MTECH + IQ, MXTRA IQ and PRIME to measure loop and network impedance as well as insulation resistance.

The flexible application options of the PROFITEST Remote Adapter enable it to be used in a wide variety of application areas. With the accessories that are perfectly tailored to the requirements, 1- and 3-phase systems can be tested in compliance with standards quickly and without the hassle of changing the measuring lines. Each measuring circuit is fused separately for protection. The power supply via the interface enables the PROFITEST Remote to be used independently of the mains.

Product Features:

  • Use with PROFITEST MTECH + IQ, MXTRA IQ and PRIME
  • Measurement of the loop and network impedance ZL-PE and ZL-N
  • Measurement of the insulation resistance RISO with up to 500 V DC
  • No plugging required during measurement
  • It is not possible to swap the phases during the measurement
  • Time savings when testing electrical systems
  • Connection to the test device via 3-pole PRO-SCHUKO test adapter or via 4 mm safety sockets L, N and PE
  • Control of the test adapter via the connected test device
  • Connection to the system via 4 mm safety sockets L1, L2, L3, N and PE
  • Data communication via RS232 interface
  • No offset determination necessary due to 4-wire measurement
  • Signaling of the line connection via LED
  • High reliability through separate protection of each measuring circuit
  • Mains-independent use is possible, 5V supply via interface

Lieferumfang

  • Test adapter (M514R)
  • Interface cable RS232
  • operation manual

Accessoires (4 products )

Gossen Metrawatt M536M
Bundle
Gossen Metrawatt M536M
Profitest MXTRA IQ test device, professional package with case and software
Delivery time upon request
CHF 5,235.00
Gossen Metrawatt M535L
Gossen Metrawatt M535L
Profitest MTECH+ IQ basic device VDE 0100 stationary test device
1 in stock. Ready to ship in 1 business day
CHF 2,625.00
Gossen Metrawatt M536T
Bundle
Gossen Metrawatt M536T
Profitest MXTRA IQ test device, MED package with case and software
Delivery time upon request
CHF 3,922.00
Gossen Metrawatt M536P
Bundle
Gossen Metrawatt M536P
Profitest MTECH+ IQ master package VDE 0100 stationary test device
Delivery time upon request
CHF 3,628.00

Alternate products (1 product )

Gossen Metrawatt Z525F
Gossen Metrawatt Z525F
METRALINE PRO-TYPE EM 1-/3-phase test adapter for e-charging points
Ready to ship in 5 to 10 business days
CHF 562.00

Recommendations (3 products )

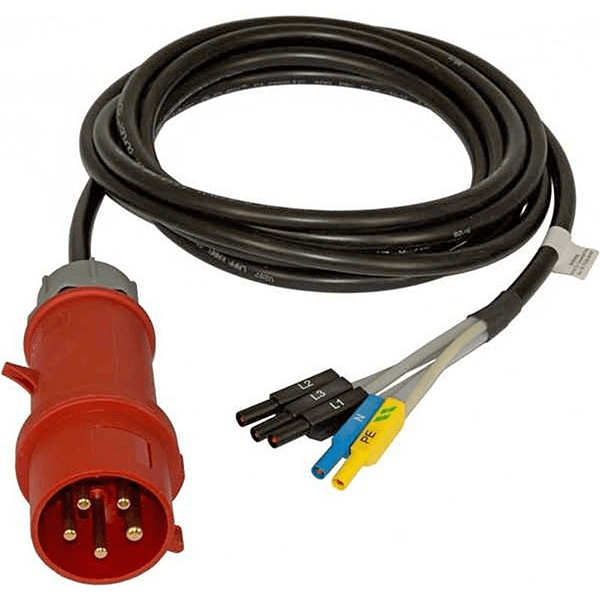

Gossen Metrawatt Z570B
