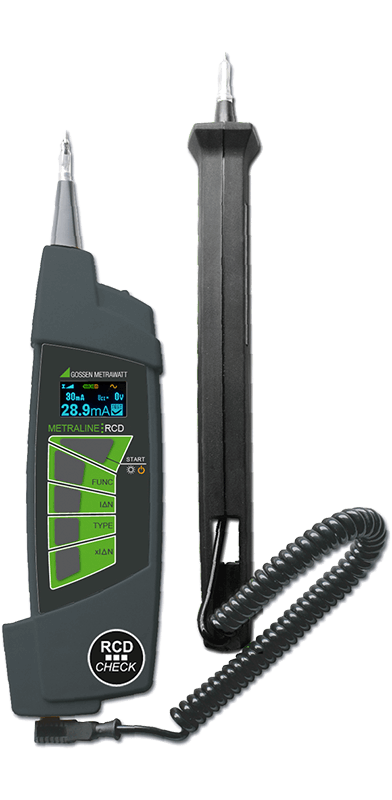

Gossen Metrawatt M507B | METRALINE RCD / CHECK, VDE0100 FI test device, type A

Manufacturer number: M507B

Gossen Metrawatt M507B
Ready to ship in 5 to 10 business days

CHF 625.00

plus VAT. CHF 675.62 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M507B | METRALINE RCD-CHECK RCD tester that tests the properties of an RCD (RCD circuit breaker).

  • Digital display, colored backlit OLED display
  • LED for measuring point lighting
  • Patented fixation of the measuring tips
  • Compact and robust - for rough service operations and laboratory use
  • Testing residual current devices (RCD circuit breakers)
  • Measuring the contact voltage without triggering the switch. The contact voltage related to the nominal residual current is measured with 1/3 of the nominal residual current.
  • Tripping test with nominal residual current, measurement of the tripping time
  • Special tests of systems or RCD circuit breakers
  • Testing of systems or RCD protective circuits with increasing fault current with display of the tripping current
  • Testing of RCD circuit breakers IΔN = 10, 30, 100, 300 and 500 mA
  • Testing of RCD circuit breakers with 1/2 IΔN, 1 IΔN, 2 IΔN, 5 IΔN up to 100 mA nominal current)
  • Testing of RCD circuit breakers with half-waves (pulsating direct current) to determine the tripping time and the tripping current
  • Check special RCD circuit breakers
  • selective S, type AC (not approved in Germany), type A
  • Measuring line voltage and fault loop impedance
  • Measurement category CAT III / 300 V
  • Degree of protection housing IP 43
  • Dimensions approx. 260 x 70 x 40 mm
  • Weight about 0.36 kg with batteries

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 0.23 MB

Description

M507B | METRALINE RCD / CHECK, VDE0100 FI test device, type A

In detail, it is a matter of measuring the contact voltage, the switch-off time and the switch-off current in RCDs of types A, AC, S and more recently also of mixed frequency type F.

Lieferumfang

  • 1 test device with a mobile measuring tip including 4 batteries (AAA), 1 bag, 1 brief operating instructions, 1 CD-ROM with operating instructions in the available languages, 1 factory calibration certificate

Accessoires (2 products )

Gossen Metrawatt Z507A
Gossen Metrawatt Z507A
METRALINE wide-range charger
Ready to ship in 5 to 10 business days
CHF 121.00
Gossen Metrawatt Z507B
Gossen Metrawatt Z507B
Batteries METRALINE 4 batteries (AAA) for METRALINE
Ready to ship in 5 to 10 business days
CHF 37.00

Alternate products (2 products )

Gossen Metrawatt M507C
Gossen Metrawatt M507C

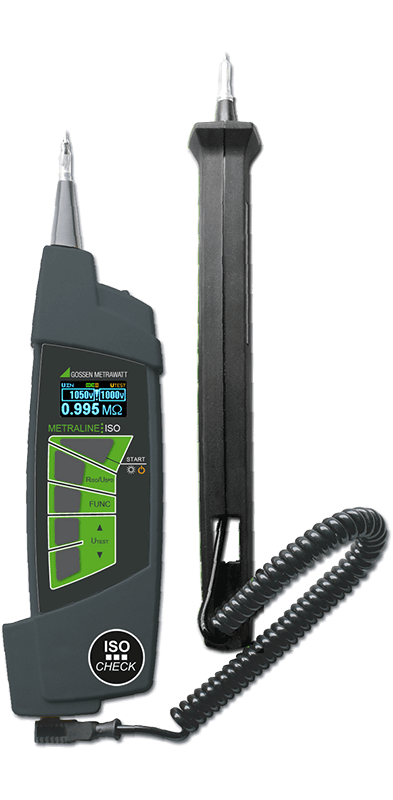

METRALINE ISO / CHECK, VDE0100 insulation measuring device
Ready to ship in 5 to 10 business days
CHF 625.00
Gossen Metrawatt M507A
Gossen Metrawatt M507A

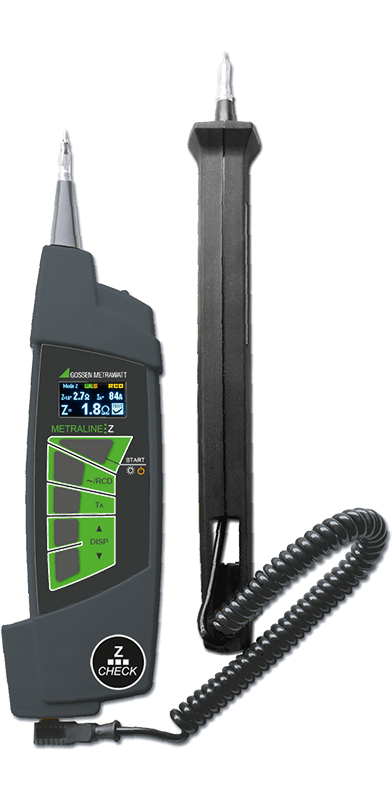

METRALINE Z / CHECK, VDE0100 loop resistance tester
Ready to ship in 5 to 10 business days
CHF 625.00

Recommendations (8 products )

Gossen Metrawatt M507A
Gossen Metrawatt M507A
METRALINE Z / CHECK, VDE0100 loop resistance tester
Ready to ship in 5 to 10 business days
CHF 625.00
Gossen Metrawatt M507C
Gossen Metrawatt M507C
METRALINE ISO / CHECK, VDE0100 insulation measuring device
Ready to ship in 5 to 10 business days
CHF 625.00
Gossen Metrawatt METRAHIT ISO
Gossen Metrawatt METRAHIT ISO

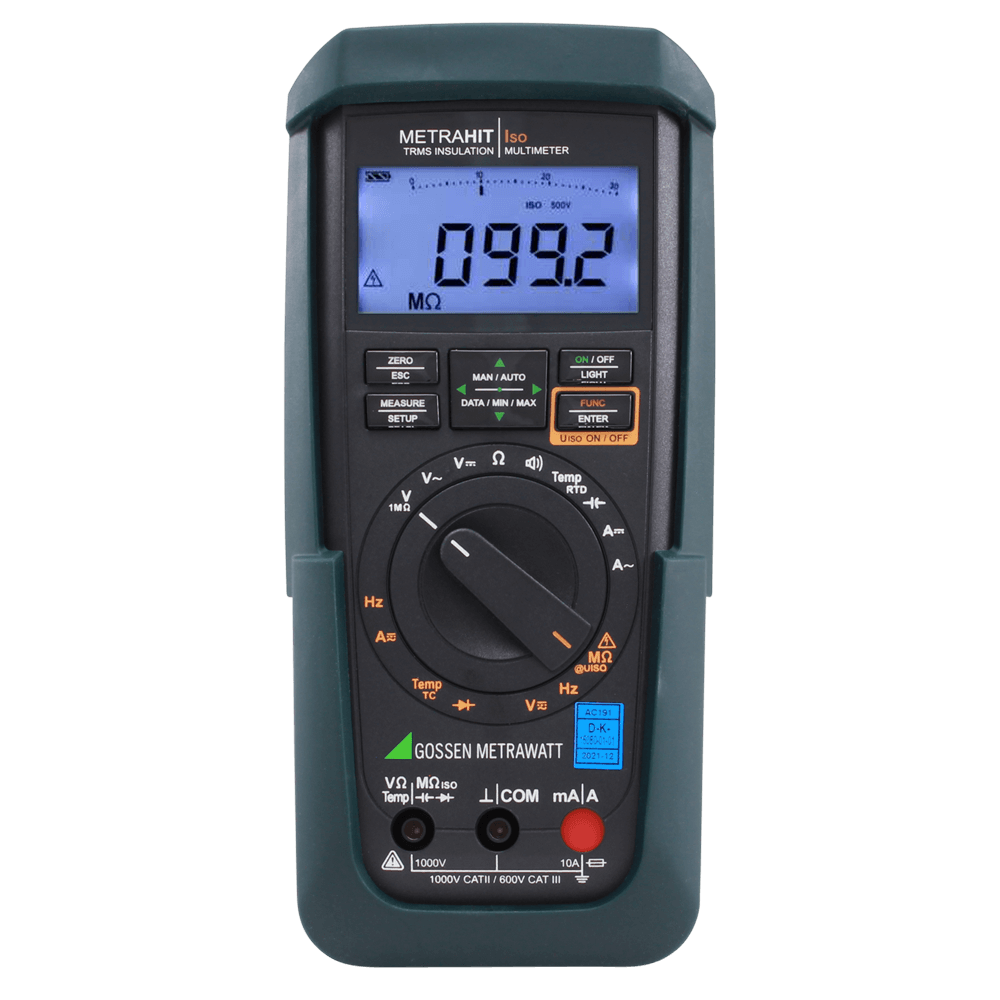

Multimeter, TRMS, 3 ¾, IP54, integr. Insulation measurement (M246B)
