Gossen Metrawatt M312J | Metraclip 85 clamp meter TRMS, 600A AC / 900A DC

Name: M312J | Metraclip 85 clamp meter TRMS, 600A AC / 900A DC
Brand: Gossen Metrawatt
SKU: M312J
Price: 594.0 CHF
Availability: OutOfStock

Manufacturer number: M312J

Ready to ship in 5 to 10 business days

CHF 594.00

plus VAT. CHF 642.11 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Gossen METRAclip 85 multiple measuring clamp for current, voltage and frequency, 600 V CAT IV.

Electrical safety according to IEC 61010
True RMS measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Power measurement (W, VA, var and PF)
Starting and overcurrent measurements (True Inrush)
Frequency measurement
Automatic measuring range switching
Relative and differential measurements
Ad storage (DATA HOLD)
Data acquisition (MIN, MAX, PEAK)
Continuity test, acoustic signal
Resistance measurement
Diode test
Temperature measurement - thermocouple type K
Connection of sensors and. Sensors with voltage output
LCD / digits with blue backlighting 6,000 digits 4-digit display
Automatic switch-off Auto-Power-Off
Protection class housing: IP54, jaws: IP40
Forceps opening max. Ø 34 mm
Dimensions H x W x D: 222 mm x 78 mm x 42 mm
Weight about 340 g

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±1,5 % / ±1,0 %
Article number:	M312J
Current measuring range AC/DC:	150 mA - 600 A / 0 A - 900 A
Dimensions (L x W x H) (mm):	222 x 78 x 42
Diode test / continuity test:	Yes / Yes
Direction of rotation:	No
Enclosure (mm):	34
Frequency measuring range:	5 Hz - 20 kHz
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	GMC Metraclip 85
Number of positions:	4
Power factor:	Yes
Power measurement (active / apparent / reactive):	No / 5VA - 900kVA / 5var - 900kvar
Resistance measuring range:	0 Ω - 60 kΩ
Resolution current measurement AC/DC:	10 mA / 10 mA
Temperature measuring range:	-60 °C - +1200 °C
Weight (kg):	0.34

Documents & Downloads

Datasheet

pdf | 1.05 MB

Description

M312J | Metraclip 85 clamp meter TRMS, 600A AC / 900A DC

The multiple measuring clamp METRAclip 85 is suitable for measurements in service and industrial applications, for troubleshooting in electrical installations as well as for the repair of electric vehicles.

Lieferumfang

Multiple measuring clamp
2 measuring cables red and black (length 1.6 m), each with touch-protected plug, CAT IV 1000 V / 15 A
Type K thermocouple sensor with banana plugs
9 V battery
Carrying bag with wrist strap
test protocol
Brief instructions printed in the languages D / GB / F / E / I
Operating instructions in the languages D / GB / F / E / I on mini CD-ROM

Alternate products (7 products)

Teledyne FLIR
CM78 multiple measuring clamp 1000 A

Delivery time upon request

CHF 492.00

Chauvin Arnoux

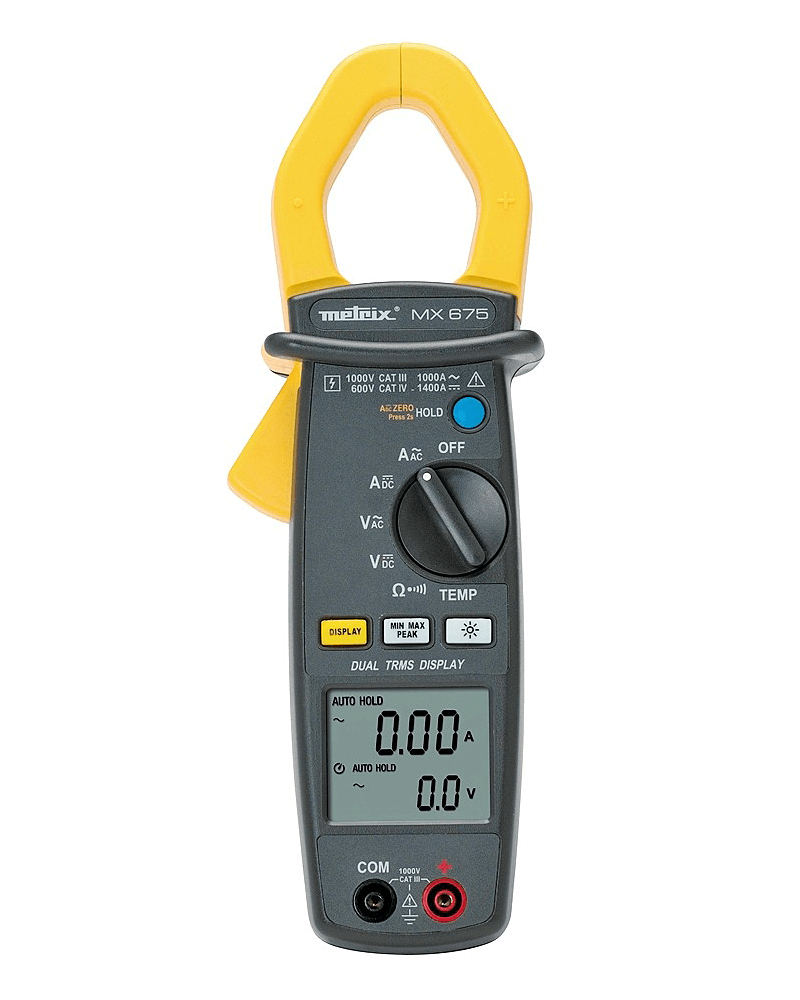

MX0675
