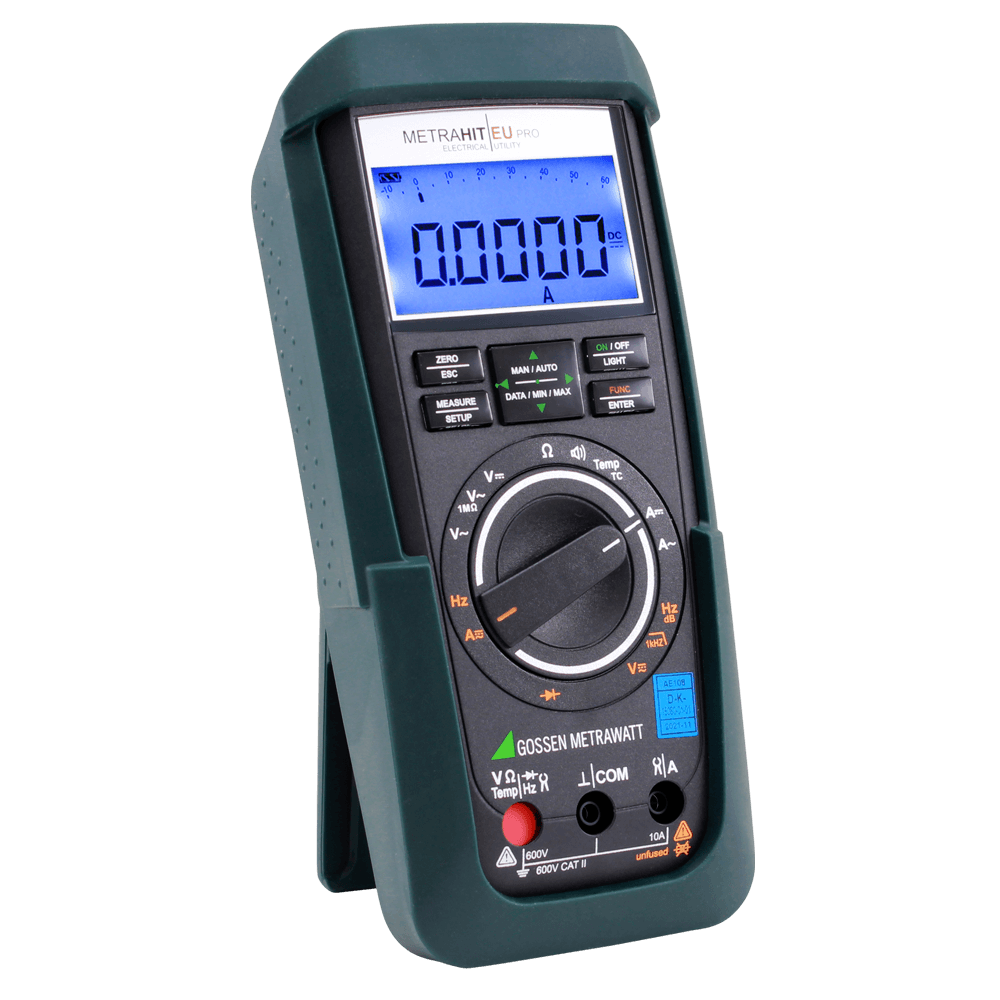

Gossen Metrawatt M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case
Manufacturer number: M252A
or choose one of the following options:
Gossen Metrawatt M252A | 4 6/7-digit special multimeter METRAHIT EU Pro (formerly ESPECIAL) with 21 multimeter functions.
- Resolution ± 60,000 digits, 4 6/7 digits
- System connection through infrared interface
- PC communication capable with METRAwin10
- 3 sockets with automatic socket lock ABS (patented)
- TRMS AC and AC / DC function
- Voltage measurement with a basic accuracy of ± 0.05% (VDC)
- Automatic and manual measuring range selection
- Automatic storage of measured values
- 21 mutimeter functions
- Infrared interface for data exchange and parameterization to the PC (optional: IR-USB adapter and METRAwin10 software)
- TRMS voltage measurement AC and AC + DC, bandwidth up to 20 kHz
- TRMS current measurement AC and AC + DC, bandwidth up to 5 kHz
- dB measurement function
- Adjustable clip factor for measurement with current clamp sensors or current clamp transformers
- Large, light blue illuminated display with extra large digits (15 mm) and analog bargraph for dynamic processes
- separate battery and fuse compartment
- Protection against dust and water according to protection class IP 52
- Measurement category 1000V CAT III and 600V CAT IV
- Made in Germany
- DAkkS calibration certificate included
- Warranty 3 years
Technical Data
Analogue segment display: | Yes |
---|---|
Article number: | M252A |
Backlight: | Yes |
Basic precision: | 0,05 % |
Capacity measuring range: | No |
Current measuring range AC/DC: | 6A - 10A / 6A - 10A |
Data memory / logger: | No / No |
Dimensions (L x W x H) (mm): | 200 x 87 x 45 |
Diode test / continuity test: | Yes / Yes |
Display Hold / Auto-Hold: | Yes / Yes |
Display resolution: | 60000 |
Electrical safety: | CAT III 1000 V, CAT IV 600 V |
Frequency measuring range: | No |
Interfaces: | None |
Min. / Max. Recording: | Yes / Yes |
Model: | Metrahit ESPECIAL |
Number of positions: | 4.85 |
Resistance measuring range: | 600 Ω - 60 MΩ |
Special features: | including DakkS calibration certificate |
Temperature measurement ( PT100 / Type K / Type J): | Type K |
True effective measurement TRMS: | Yes |
Voltage measuring range AC/DC: | 600 mV - 1000 V / 600 mV - 1000 V |
Warranty (years): | 3 |
Weight (kg): | 0.35 |
Documents & Downloads
Description
M252A | Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case
The special multimeter is ideally suited for connection to current transformers in order to prevent any danger from the interruption of these circuits during operation - system-compatible with IR interface, ± 60,000 digits resolution - 21 multimeter functions.
Lieferumfang

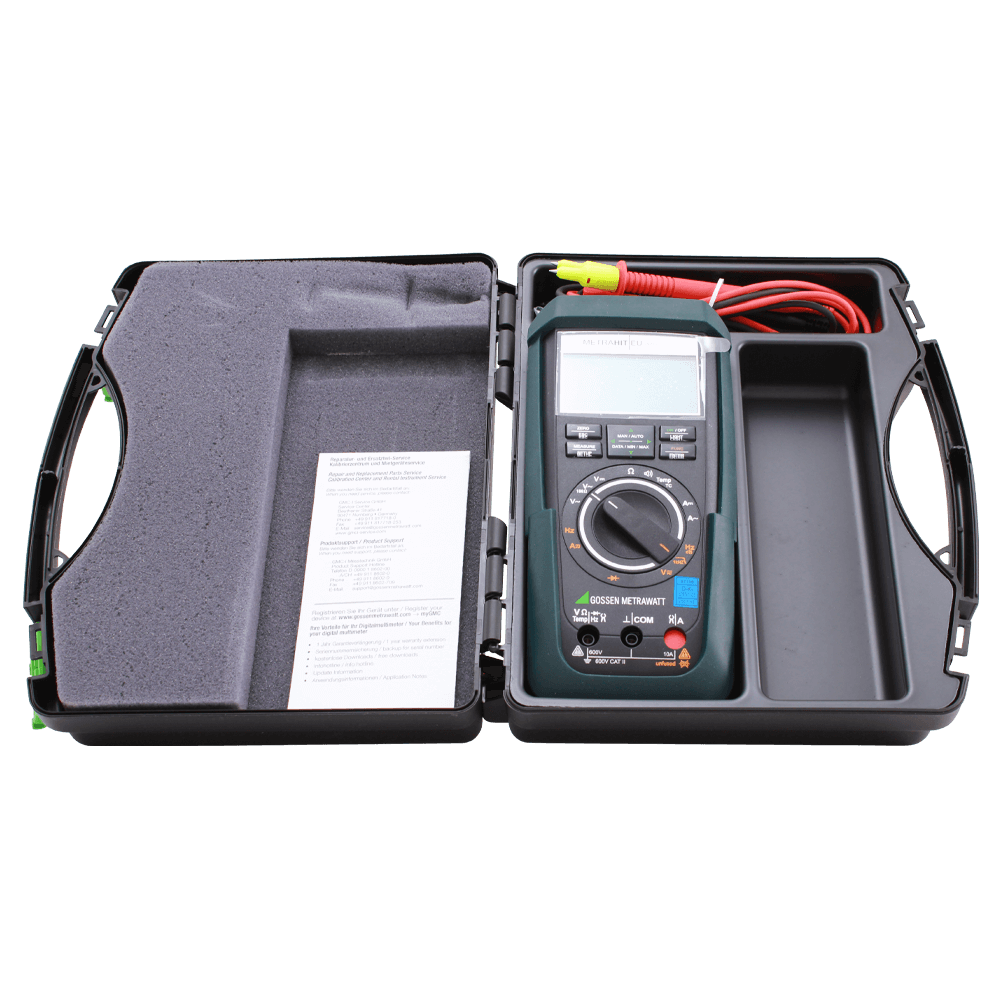

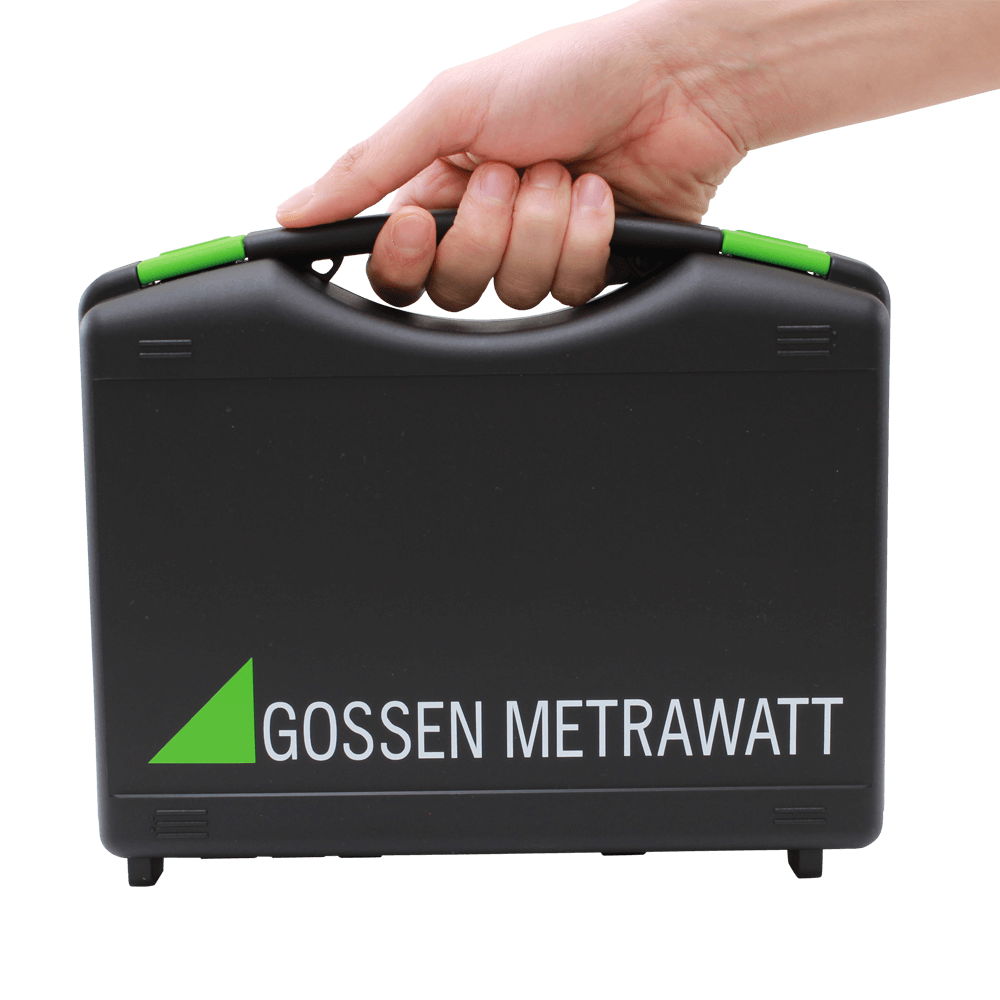

- Multimeter set with HC20 hard case
- Measuring cable set KS17-2
- Protective rubber cover
- Two 1.5 V AA batteries
- Brief operating instructions
- CD-ROM with operating instructions (D & GB)
- DAkkS (DKD) calibration certificate
