Gossen Metrawatt M250T | TRMS multimeter METRAHIT PM TUNE, 60,000 digits, 4 6/7 digits

Manufacturer number: M250T

Gossen Metrawatt M250T
Gossen Metrawatt M250T
Gossen Metrawatt M250T
Gossen Metrawatt M250T
Ready to ship in 5 to 10 business days

CHF 1,010.00

plus VAT. CHF 1,091.81 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M250T | TRMS multimeter METRAHIT PM TUNE, 60,000 digits, 4 6/7 digits.

  • 26 multimeter functions
  • Resolution ±60,000 digits, 4 6/7 digits
  • Basic accuracy ±0.05% (VDC)
  • Voltage ACTRMS, voltage AC+DC TRMS, voltage DC, level dB, relative value ΔREL, frequency (Hz, MHz), duty cycle, resistance, diode test, continuity test, capacity, current ACTRMS, current AC+DCTRMS, temperature with Pt 100/1000 sensors and K thermocouples
  • Autorange current measurement from 10 nA to 10 A (16A) via a socket and a fuse
  • Clip function for TRMS current measurement with sensors and converters
  • Additional filter function and voltage measurement with reduced input resistance to limit interference, e.g. when measuring frequency converters
  • Automatic and manual measuring range selection
  • Zero setting ZERO
  • Automatic measurement storage DATA / MIN / MAX
  • 2 MB data memory for 61,600 measured values for long-term measurements as a data logger
  • Infrared interface for communication with the PC
  • Large, light blue illuminated display with extra large numbers (15mm) and analog bargraph for dynamic processes
  • separate battery and fuse compartment
  • Power supply connection for battery-independent operation
  • Patented automatic bushing lock ABS
  • Measuring category 600 V CAT IV, 1000 V CAT III
  • Rubber protective cover to protect against shock and impact

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.72 MB

Description

M250T | TRMS multimeter METRAHIT PM TUNE, 60,000 digits, 4 6/7 digits

The high-end TRMS tuning multimeter METRAHIT PM TUNE from Gossen Metrawatt has a digital display with 60,000 digits, an integrated data logger (61,600 measured values) and an IR interface.

The devices in the METRAHIT Professional Multimeter (PM) series, which also include the METRAHIT PM TUNE, are extremely robust and reliable digital multimeters made of impact-resistant plastic that were developed for professional use.

The METRAHIT PM TUNE offers an increased update rate of the digital display, which reacts directly and without delay to changed settings, for example on a potentiometer.

The multimeter offers a variety of functions that cover a wide range of demanding measurement tasks. These include TRMS AC, AC+DC measurement up to 100 kHz for voltage and current, data logger for 61,600 measured values and an IR interface to the PC. In addition, it offers automatic measuring range selection and measurement storage.

The METRAHIT PM TUNE corresponds to CAT IV up to 600V and CAT III up to 1000V. It is ideal for balancing work on electrical circuits in a variety of industrial applications. In addition, it can be used universally in electrical engineering, in the areas of electrical installation, laboratory, telecommunications, training, etc.

Lieferumfang

  • multimeter
  • 1 pair of safety test leads (1.5 m) with 4 mm test tips, 1000 V CAT III, 600 V CAT IV (KS17-2)
  • 1 pair of gripping clamps in red and black (KY-2)
  • Hard case HC20
  • 2 x 1.5V AA type batteries
  • 1 x short operating instructions in German/English
  • 1 x CD-ROM, contents: operating instructions in German and English
  • 1 x DAkkS calibration certificate
  • 1 x Rubber Protective Case

Accessoires (10 products )

Gossen Metrawatt Z216C
Gossen Metrawatt Z216C
USBXTRA interface adapter IR / USB for Metrahit X-TRA
1 in stock. Ready to ship in 1 business day
CHF 300.00
Gossen Metrawatt GTZ3240000R0001
Gossen Metrawatt GTZ3240000R0001
Metrawin 10 / Metrahit software for multimeters (Z3240)
Ready to ship in 5 to 10 business days
CHF 241.00
Gossen Metrawatt GTZ3409000R0001
Gossen Metrawatt GTZ3409000R0001
Z3409 temperature sensor -40 .. + 600 ° C, Pt100
Ready to ship in 5 to 10 business days
CHF 174.00
Gossen Metrawatt Z102A
Gossen Metrawatt Z102A
TF220 temperature sensor PT1000 -50 to + 220 ° C, wire sensor
Ready to ship in 5 to 10 business days
CHF 94.00
Gossen Metrawatt GTZ3408000R0001
Gossen Metrawatt GTZ3408000R0001
TF550 temperature sensor -50 ° .. + 550 ° C, Pt100
Ready to ship in 5 to 10 business days
CHF 233.00
Gossen Metrawatt GTZ3301000R0003
Gossen Metrawatt GTZ3301000R0003
F829 Carrying case suitable for MetraHit and MetraMax multimeters
1 in stock. Ready to ship in 1 business day
CHF 105.00
Gossen Metrawatt Z115A
Gossen Metrawatt Z115A

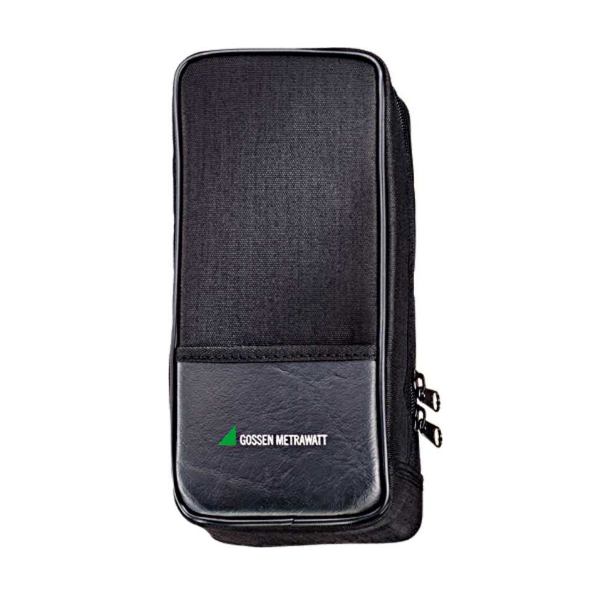

Hitbag belt pouch for Metrahit and Metraport
Ready to ship in 5 to 10 business days
CHF 87.00
Gossen Metrawatt GTZ3302000R0001
Gossen Metrawatt GTZ3302000R0001
F836 Ever-ready case with cable compartment
Ready to ship in 5 to 10 business days
CHF 107.00
Gossen Metrawatt Z113A
Gossen Metrawatt Z113A
HC20 hard case 275 x 229 x 83 mm
Ready to ship in 5 to 10 business days
CHF 78.00
Gossen Metrawatt Z113B
Gossen Metrawatt Z113B
HC30 hard case 394 x 294 x 106 mm
Ready to ship in 5 to 10 business days
CHF 123.00

Recommendations (15 products )

Gossen Metrawatt Z202B
Gossen Metrawatt Z202B
CP330 Current Clamp, 4 mm, 300 A DC - 20 kHz, U-Out
Ready to ship in 5 to 10 business days
CHF 536.00
Gossen Metrawatt Z203B
Gossen Metrawatt Z203B
CP1100 Current Clamp, 4 mm, 1000A DC - 20 kHz, U-Out
Ready to ship in 5 to 10 business days
CHF 489.00
Gossen Metrawatt Z201B
Gossen Metrawatt Z201B
CP30 current probe, 4 mm, 30 A DC - 20 kHz, U-Out
Ready to ship in 5 to 10 business days
CHF 629.00
Gossen Metrawatt Z204A
Gossen Metrawatt Z204A

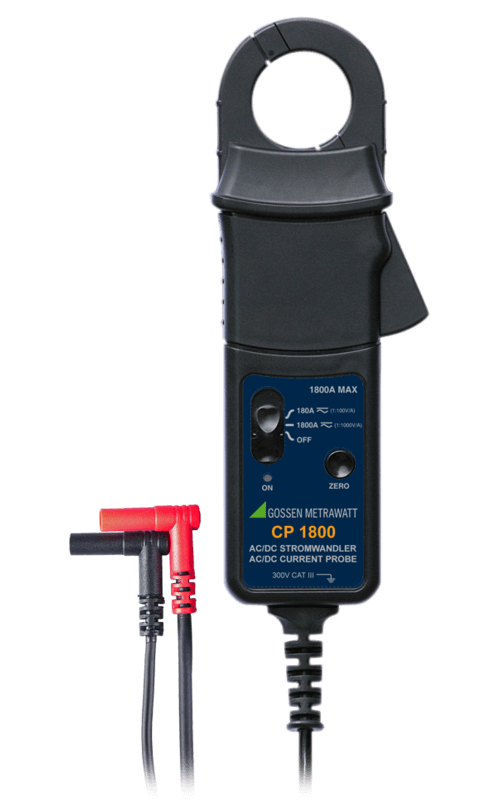

CP1800 current probe, 4 mm, 1250A DC - 20 kHz, U-Out
