Gossen Metrawatt METRAHIT PM XTRA (formerly EXTRA) | Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Name: METRAHIT PM XTRA (formerly EXTRA) | Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)
Brand: Gossen Metrawatt
SKU: M250A
Price: 971.0 CHF
Availability: OutOfStock

Manufacturer number: M250A

Gossen Metrawatt METRAHIT PM XTRA (formerly EXTRA)

Ready to ship in 5 to 10 business days

CHF 971.00

plus VAT. CHF 1,049.65 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M250A | 4 6/7-digit high-end TRMS digital multimeter Metrahit Extra with 26 multimeter functions.

Resolution ± 60,000 digits, 4 6/7 digits
System connection through infrared interface
PC communication capable with METRAwin10
3 sockets with automatic socket lock ABS (patented)
TRMS AC and AC / DC function
Voltage measurement with a basic accuracy of ± 0.05% (VDC)
Automatic and manual measuring range selection
Automatic storage of measured values
26 multimeter functions
Datalogger function with a data memory of 2048 kB, ie for up to 61,600 measured values
Infrared interface for data exchange and parameterization to the PC (optional: IR-USB adapter and METRAwin10 software)
Power supply connection for a battery-independent permanent supply
TRMS voltage measurement AC and AC + DC, bandwidth up to 100 kHz
TRMS current measurement AC and AC + DC, bandwidth up to 10 kHz
dB measurement function
Adjustable clip factor for measurement with current clamp sensors or current clamp transformers
Large, light blue illuminated display with extra large digits (15mm) and analog bargraph for dynamic processes
separate battery and fuse compartment
Protection against dust and water according to protection class IP 52
Measurement category 1000V CAT III and 600V CAT IV
Made in Germany
DAkkS calibration certificate included
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M250A
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	60 nF - 60 µF
Current measuring range AC/DC:	600µA - 10A / 600µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	59999
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	600 Hz - 1 MHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit PM XTRA
Number of positions:	4.85
Resistance measuring range:	600 Ω - 6 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 1000 V / 600 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Description

METRAHIT PM XTRA (formerly EXTRA) | Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

High-end TRMS digital multimeter, system-compatible with data storage and IR interface, ± 60,000 digits resolution - 26 multimeter functions

Lieferumfang

Multimeter set with HC20 hard case
Measuring cable set KS17-2
Protective rubber cover
Two 1.5 V AA batteries
Brief operating instructions
CD-ROM with operating instructions (D & GB)
DAkkS (DKD) calibration certificate

Accessoires (22 products )

Gossen Metrawatt Z117A

HIT CLIP, for Metrahit magnetic holder, Velcro fastening

Ready to ship in 5 to 10 business days

CHF 68.00

Gossen Metrawatt Z202B

CP330 Current Clamp, 4 mm, 300 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 536.00

Gossen Metrawatt Z208B

WZ11B current probe, 4 mm, 200 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 324.00

Gossen Metrawatt Z216C

USBXTRA interface adapter IR / USB for Metrahit X-TRA

1 in stock. Ready to ship in 1 business day

CHF 300.00

Gossen Metrawatt Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 236.00

Gossen Metrawatt Z219C

WZ12C current probe, 4 mm, 150 A 48 Hz - 400 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 294.00

Gossen Metrawatt Z104C

GH X-TRA protective cover, rubber for MetrahitBase / Pro / XTra / Tech

1 in stock. Ready to ship in 1 business day

CHF 55.00

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

CHF 69.00

Gossen Metrawatt Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

CHF 78.00

Gossen Metrawatt Z201B

CP30 current probe, 4 mm, 30 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 629.00

Gossen Metrawatt Z203B

CP1100 Current Clamp, 4 mm, 1000A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 489.00

Gossen Metrawatt GTZ3240000R0001

Metrawin 10 / Metrahit software for multimeters (Z3240)

Ready to ship in 5 to 10 business days

CHF 241.00

Gossen Metrawatt GTZ3409000R0001

Z3409 temperature sensor -40 .. + 600 ° C, Pt100

Ready to ship in 5 to 10 business days

CHF 174.00

Gossen Metrawatt Z225A

Z3512A current probe, 4 mm, 1000A 10 Hz - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

CHF 776.00

Gossen Metrawatt Z207E

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

CHF 734.00

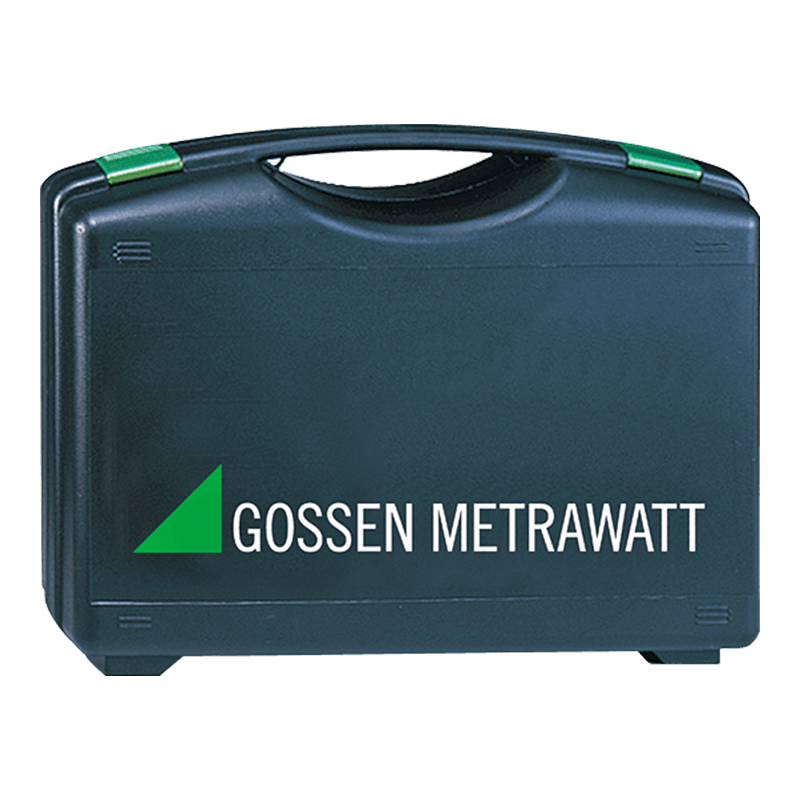

Gossen Metrawatt Z113B
