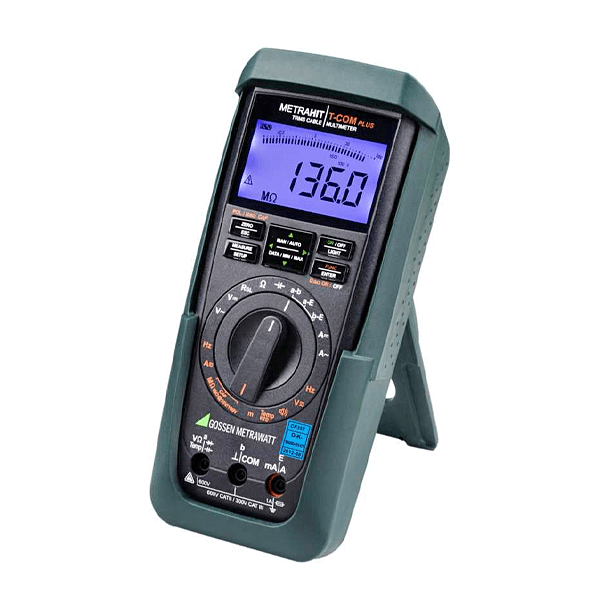

Gossen Metrawatt METRAHIT T-COM PLUS | Cable multimeter, TRMS, 3 ¾, IP54, incl. DAkkS (M246S)

Name: METRAHIT T-COM PLUS | Cable multimeter, TRMS, 3 ¾, IP54, incl. DAkkS (M246S)
Brand: Gossen Metrawatt
SKU: M246S
Price: 1283.0 CHF
Availability: OutOfStock

Manufacturer number: M246S

Delivery time upon request

CHF 1,283.00

plus VAT. CHF 1,386.92 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M246S | METRAHIT T-COM PLUS - cable multimeter for measuring on symmetrical copper cable systems with signature analysis.

Insulation resistance measurement (test voltage 10 and 100 V) with simultaneous
External voltage detection (at 100 V) and polarity change for diode test
Interference-proof capacitance measurement and cable length measurement
Galvanic signature analysis
Line symmetry test by quick switching
Multifunction multimeter (V, Ω, F, Hz, diode test, continuity buzzer, mA, A)
RMS value measurement TRMS AC and AC + DC for current and voltage
Low pass filter switchable 200 Hz / -3 dB
direct current measurement 100 nA ... 1 A
Precision temperature indicator ° C, ° F for Pt100 / Pt1000 sensors
3-digit display, 3 100 digits, lighting can be switched on, analog display: linear or logarithmic for insulation measurement
Acoustic signal for: continuity test, dangerous voltages, overload limits exceeded
Storage of min / max values and Auto DATA Hold
Data storage and internal clock, power supply adapter socket
Housing in IP54, dust and splash-proof, rubber protective cover as standard
Bidirectional infrared interface for data exchange with PC
DAkkS calibration certificate included
Manufacturer guarantee: 3 years for material and manufacturing defects, 1 ... 3 years for calibration (depending on the application)

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M246S
Backlight:	Yes
Basic precision:	0,2 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 1A / 300µA - 1A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	3100
Electrical safety:	CAT II 600 V, CAT III 300 V
Frequency measuring range:	300 Hz - 300 kHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit T-COM Plus
Number of positions:	3.75
Resistance measuring range:	300 Ω - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt100 / Pt1000
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 600 V / 300 mV - 600 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 0.78 MB

Description

METRAHIT T-COM PLUS | Cable multimeter, TRMS, 3 ¾, IP54, incl. DAkkS (M246S)

The METRAHIT T-COM PLUS cable multimeter is a portable, robust and field-compatible measuring device.

It is used to carry out measurements to determine sources of error in cable systems. It measures all cable and system relevant parameters such as voltage, current, resistance, insulation and loop resistance, capacitance and cable length.

A single-wire interruption or contact with an unwired wire (capacitive asymmetry) can be recognized by changing the polarity with the fast logarithmic bar graph display.

Lieferumfang

M246S: Cable multimeter with protective rubber cover, ever-ready case F836, cable set
