Gossen Metrawatt METRAHITE ISO AERO | Multimeter, TRMS, 4 ¾, IP54, incl. Insulation measurement (M246M)

Name: METRAHITE ISO AERO | Multimeter, TRMS, 4 ¾, IP54, incl. Insulation measurement (M246M)
Brand: Gossen Metrawatt
SKU: M246M
Price: 1423.0 CHF
Availability: OutOfStock

Manufacturer number: M246M

Ready to ship in 5 to 10 business days

CHF 1,423.00

plus VAT. CHF 1,538.26 VAT plus shipping costs

or choose one of the following options:

Product inquiries % Additional offers for this product

Gossen Metrawatt M246M | METRAHIT ISO AERO TRMS multimeter and insulation measuring device for avionics service, ± 30,000 digits.

Insulation resistance measurement up to 3.1 GΩ with external voltage detection
- Test voltages: 10, 50, 100, 250, 500 V
Multimeter functions (V, Ω, F, Hz)
RMS value measurement TRMS AC / AC + DC for current / voltage up to 10 kHz
Low pass filter can be activated, 1 kHz / -3 dB in the V AC range
Direct current measurement 100 nA ... 10 A
Current measurement via clip-on current sensor clip, the transmission factor from 1 mV: 1 mA to 1 mV: 1 A is adjustable and is taken into account in the display
Precision temperature indicator ° C, ° F for Pt100 / Pt1000 sensors and thermocouple type K
Diode measurement (IK = 1 mA, U flow up to 5.1 V) and continuity test
4-digit display, ± 30,000 digits, lighting can be switched on
Acoustic signaling for: continuity test, dangerous contact voltages and exceeding overload limits
Storage of min / max values
Measurement data storage and internal clock, power supply adapter socket
Housing in IP54, dust and splash-proof, rubber protective cover
Bidirectional infrared interface for data exchange with PC
Windows software as an accessory for processing and graphically displaying measured values via the RS232 interface

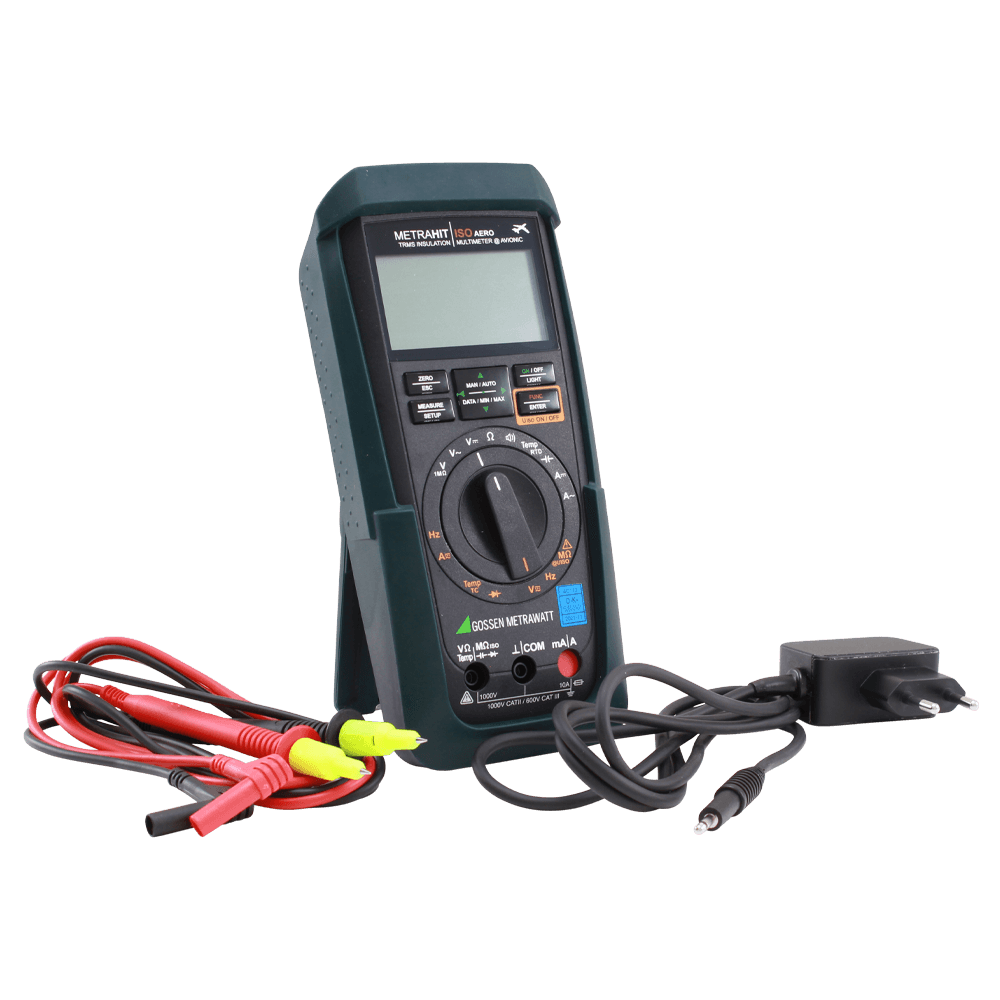

Set consisting of METRAHIT TRMS multimeter special version for avionic service and insulation measuring device (10/50/100/250/500 V) with protective rubber cover, cable set KS17-2, including power supply NA-XTRA with wide-range input 90 ... 250 V, warranty 3 Years and DAkkS calibration certificate

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M246M
Backlight:	Yes
Basic precision:	AC 1 % / DC 0,15 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 10A / 300µA - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	30000
Electrical safety:	CAT II 1000 V, CAT III 600 V
Frequency measuring range:	300 Hz - 300 kHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit ISO AERO
Number of positions:	4.75
Resistance measuring range:	300 Ω - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 1000 V / 300 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 0.72 MB

Description

METRAHITE ISO AERO | Multimeter, TRMS, 4 ¾, IP54, incl. Insulation measurement (M246M)

The multimeter METRAHIT ISO AERO is a portable, robust and field-compatible measuring device. Special version for the avionic service with special low-voltage insulation measurement and data hold function.

Optional Avionic service case with special test and measurement accessories for aviation technology, consisting of test leads, terminals, adapters and connections for MIL connectors in a water and pressure-tight hard case - see under Accessories: AERO Master Test Kit I (Z246A).
