Gossen Metrawatt METRAHITE COIL | Multimeter, TRMS, 3 ¾, IP54, integr. Insulation & short circuit measurement (M246C)

Name: METRAHITE COIL | Multimeter, TRMS, 3 ¾, IP54, integr. Insulation & short circuit measurement (M246C)
Brand: Gossen Metrawatt
SKU: M246C
Price: 1384.0 CHF
Availability: OutOfStock

Manufacturer number: M246C

Ready to ship in 5 to 10 business days

CHF 1,384.00

plus VAT. CHF 1,496.10 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M246C | 3 stell-digit TRMS insulation multimeter METRAHIT COIL with short-circuit measurement.

Insulation resistance measurement with external voltage detection
Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Multi-function multimeter (V, Ohm, F, Hz)
RMS value measurement TRMS AC / AC + DC for current / voltage up to 10 kHz
Low pass filter can be activated, 1 kHz / -3 dB in the V AC range
Direct current measurement 100 nA ... 10 A
Current measurement via clip-on current sensor clip
the transmission factor of 1 mV: 1 mA to 1 mV: 1 A is adjustable and is taken into account in the display
Precision temperature indicator ° C, ° F
for Pt100 / Pt1000 sensors and thermocouple type K
Diode measurement (IK = 1 mA, U flow up to 5.1 V) and continuity test
3-digit display, 3100 digits, lighting can be switched on
Acoustic signaling for: continuity test, dangerous contact voltages and exceeding overload limits
Storage of min / max values
Measurement data storage and internal clock, power supply adapter socket
Housing in IP54, dust and splash-proof, rubber protective cover
Bidirectional infrared interface for data exchange with PC
Windows software as an accessory for processing and graphically displaying measured values via the RS232 interface
DAkkS (DKD) calibration certificate included
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M246C
Backlight:	Yes
Basic precision:	AC 1 % / DC 0,15 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 10A / 300µA - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	30000
Electrical safety:	CAT II 1000 V, CAT III 600 V
Frequency measuring range:	300 Hz - 300 kHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit COIL
Number of positions:	4.75
Resistance measuring range:	300 Ω - 30 MΩ
Special features:	including DakkS calibration certificate, winding short circuit measurement
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 1000 V / 300 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 0.72 MB

Description

METRAHITE COIL | Multimeter, TRMS, 3 ¾, IP54, integr. Insulation & short circuit measurement (M246C)

The METRAHIT Coil multimeter is a portable, robust and field-compatible measuring device. It is suitable for servicing household appliances, machines (e.g. forklift trucks) and systems (e.g. photovoltaics). The device has an internal mains-independent power supply.

METRAHIT COIL in conjunction with the COIL TEST ADAPTER enables short-turn measurements. By comparing the measurement results, asymmetries in the motor windings can be identified and conclusions can be drawn about a possible conclusion.

Lieferumfang

1 insulation multimeter METRAHIT COIL
1 protective rubber cover
1 pair of safety test leads with 4 mm test probes, 1000 V CAT II, 600 V CAT III (KS17-2)
1 short instruction manual German / English
1 instruction manual in German and English (on CD-ROM)
1 DAkkS calibration certificate
2 batteries 1.5 V, type AA inserted in the device
1 COIL TEST ADAPTER for the short-turn measurement

Accessoires (5 products )

Gossen Metrawatt Z117A

HIT CLIP, for Metrahit magnetic holder, Velcro fastening

Ready to ship in 5 to 10 business days

CHF 68.00

Gossen Metrawatt Z207M

Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Ready to ship in 5 to 10 business days

CHF 653.00

Gossen Metrawatt Z225A

Z3512A current probe, 4 mm, 1000A 10 Hz - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

CHF 776.00

Gossen Metrawatt Z110J

KY95-3 crocodile clip (1 pair rt + sw) for KS17-2 1000V / CAT III 16A

2 in stock. Ready to ship in 1 business day

CHF 52.00

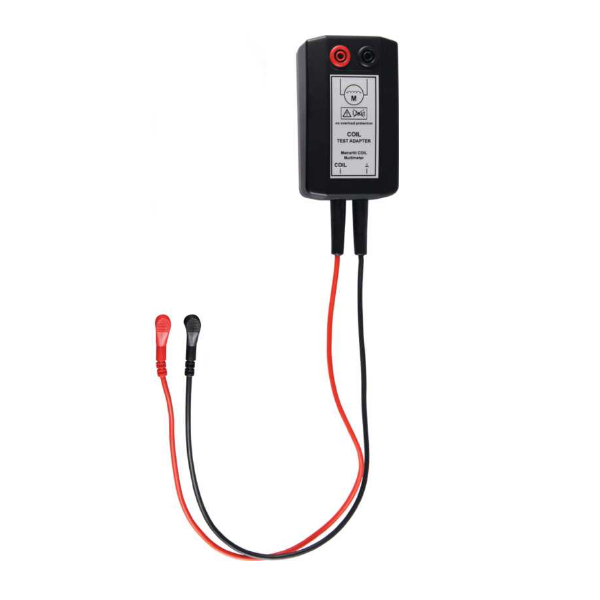

Gossen Metrawatt Z270F

Coil adapter 50mH for interturn fault detection for inductivities

Delivery time upon request

CHF 209.00
