Gossen Metrawatt M244B | Metrahit CAL Pack calibrator with MetraHit X-TRA multimeter, DAkkS

Name: M244B | Metrahit CAL Pack calibrator with MetraHit X-TRA multimeter, DAkkS
Brand: Gossen Metrawatt
SKU: M244B
Price: 2310.0 CHF
Availability: OutOfStock

Manufacturer number: M244B

Delivery time upon request

CHF 2,310.00

plus VAT. CHF 2,497.11 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

METRAHIT CAL Pack (M244B) consisting of the METRAHIT CAL hand calibrator and the METRAHIT X-TRA hand multimeter in a HC30 hard case, including cable sets, batteries and DAkkS calibration certificates.

Universal calibrator, simulator
mA, mV ... V, 5 ... 2000 O, ° C / ° F
Pt100 / 1000, Ni100 / 1000, thermocouple J, L, T, U, K, E, S, R, B, N
Frequency and pulse group generator: 1 Hz ... 1000 Hz
Ramps and stair functions
easy handling
Interface and optional calibration software METRAwin90-2
Transmitter simulator: sink 0 ... 24 mA
DAkkS (DKD) calibration certificates included
Robust and EMC-compliant construction
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M244B
Backlight:	Yes
Basic precision:	AC 1 % / DC 0,09 %
Capacity measuring range:	10 nF - 1000 µF
Current measuring range AC/DC:	10mA-10A / 10mA-10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	11999
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	100 Hz - 1 MHz
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit CAL Pack Kalibrator
Number of positions:	4.5
Resistance measuring range:	100 Ω - 40 MΩ
Special features:	including DakkS calibration certificate and Metrahit CAL
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	100 mV - 1000 V / 100 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Documents & Downloads

Datasheet

pdf | 0.38 MB

Description

M244B | Metrahit CAL Pack calibrator with MetraHit X-TRA multimeter, DAkkS

The Gossen METRAHIT CAL calibrator serves as an accurate calibration and simulator for electrical quantities. It is suitable as a hand-held device for precise calibration and inspection tasks on site as well as in the test field and laboratory, in process technology, in control room and apparatus construction, in general measurement technology and many other areas.

Lieferumfang

Robust and EMC-compliant construction
3 year guarantee

Accessoires (5 products)

Gossen Metrawatt

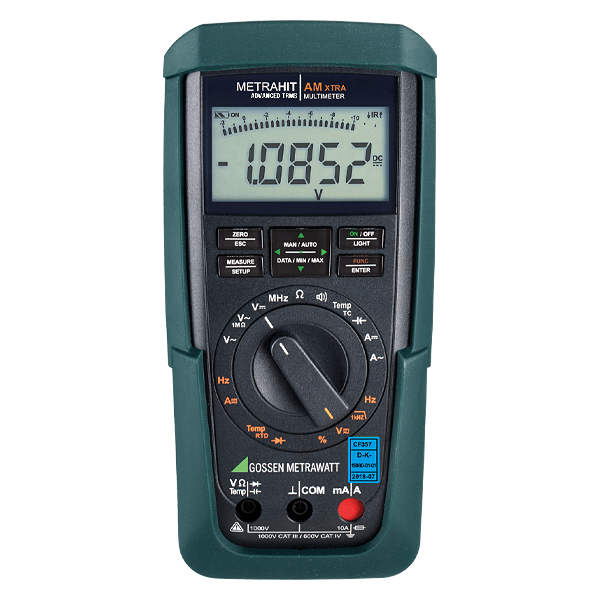

M240A
