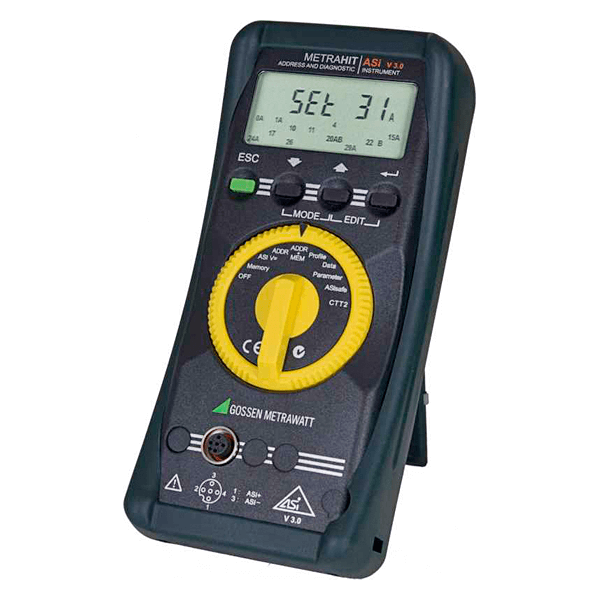

Gossen Metrawatt METRAHIT ASi v3.0 | AS-Interface addressing device / diagnostic device, for AS-i bus system (M235J)

Manufacturer number: M235J

Gossen Metrawatt METRAHIT ASi v3.0
Gossen Metrawatt METRAHIT ASi v3.0
Gossen Metrawatt METRAHIT ASi v3.0
Gossen Metrawatt METRAHIT ASi v3.0
Gossen Metrawatt METRAHIT ASi v3.0
Gossen Metrawatt METRAHIT ASi v3.0
Ready to ship in 5 to 10 business days

CHF 552.00

plus VAT. CHF 596.71 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Gossen Metrawatt M235J | METRAHIT ASi v3.0 ASi bus tester - diagnosis and addressing tool, ASi version 3.0.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 0.42 MB

Description

METRAHIT ASi v3.0 | AS-Interface addressing device / diagnostic device, for AS-i bus system (M235J)

The addressing device offers the following functions for convenient commissioning and diagnostics of an AS-i bus system:

  • Reading and setting the slave address 0 to 31 or 1A to 31A, 1B to 31B for all AS-Interface slaves
  • To avoid double addressing, addresses that have already been used can be saved and blocked
  • Measurement of the voltage on the AS-Interface cable and measurement of the operating current of an AS-i slave
  • Test of the input and output data of digital and analog slaves according to AS-Interface specification V3.0, including safety-related input slaves
  • Setting the parameters of a slave for test purposes and reading back the parameter echo
  • Reading the slave profile (IO, ID, ID2)
  • Reading out and setting the ID1 code
  • Reading the data objects identifier and diagnosis for CTT2 slaves
  • Reading out the safety code sequences of safety-related input slaves (ASIsafe)
  • Read and write the cyclic input and output channels of CTT2 slaves
  • Storage of complete network configurations (profiles of all slaves) as addressing aids

Scope of delivery: AS-Interface addressing device V 3.0 with protective rubber cover GH18, batteries and addressing cable, M12 connector on addressing connector (barrel connector)

Lieferumfang

AS-Interface addressing device V 3.0 with protective rubber cover GH18, batteries and addressing cable, M12 plug on addressing plug (hollow plug)
