Gossen Metrawatt METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)

Name: METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)
Brand: Gossen Metrawatt
SKU: M227F
Price: 4461.0 CHF
Availability: OutOfStock

Manufacturer number: M227F

Ready to ship in 5 to 10 business days

CHF 4,461.00

plus VAT. CHF 4,822.34 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Gossen Metrawatt M227F | 4 ¾ milliohmmeter METRAHIT 27EX for use in hazardous areas.

Measuring ranges: 30 mΩ, 300 mΩ, 3 Ω, 30 Ω
Resolution: 10 μΩ
Measuring method: Kelvin connection (four-wire measurement)
DATA hold memory: 1200 measured values
EX marking: Ex II 2 G EEx ia IIA T4
Type examination certificate: INERIS 05ATEX0040
DAkkS calibration certificate
Warranty: 3 years for material and manufacturing defects, 1 ... 3 years for calibration (depending on the application)

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	No
Article number:	M227F
Backlight:	Yes
Capacity measuring range:	No
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	195 x 84 x 35
Diode test / continuity test:	No / No
Display Hold / Auto-Hold:	No / No
Display resolution:	30000
Electrical safety:	CAT I 50 V
Frequency measuring range:	No
Interfaces:	None
Min. / Max. Recording:	No / No
Model:	Metrahit 27EX
Number of positions:	4.75
Resistance measuring range:	30 mΩ - 30 Ω
Special features:	including DakkS calibration certificate, 2-W/4-W measurement
Temperature measurement ( PT100 / Type K / Type J):	No
True effective measurement TRMS:	No
Warranty (years):	3
Weight (kg):	0.38

Documents & Downloads

Datasheet

pdf | 0.65 MB

Description

METRAHITE 27EX | Multimeter / milliohmmeter, 4 ¾, for hazardous areas, incl. DAkkS (M227F)

Compact 4 ¾ digit milliohmmeter for measuring low-resistance transitions in potentially explosive areas. B. contacts inside the aircraft tank (bonding test) and for general low-ohm measurements inside or outside the Ex area z. B. on the aircraft outer skin (lightning protection, "dissipation test" (Wick test))

Lieferumfang

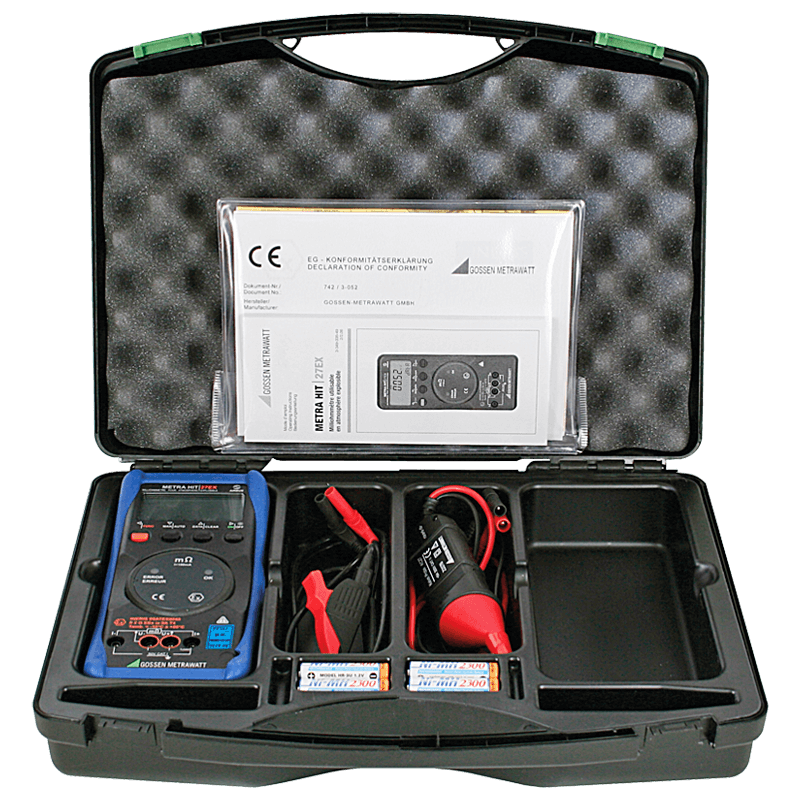

Milliohmmeter with Kelvin probe KC27, Kelvin clip KC4, 8 NiMH batteries Z206E, rubber protective cover, hard case HC30, operating instructions, DAkkS calibration certificate

Accessoires (3 products)

Gossen Metrawatt
Z216A

USB-HIT Bidirectional interface adapter IR / USB

Ready to ship in 5 to 10 business days

CHF 310.00

Gossen Metrawatt
Z115A

Hitbag belt pouch for Metrahit and Metraport

Ready to ship in 5 to 10 business days

CHF 87.00

Gossen Metrawatt
GTZ3301000R0003

F829 Carrying case suitable for MetraHit and MetraMax multimeters

1 in stock. Ready to ship in 1 business day

CHF 105.00

Recommendations (1 product)

Gossen Metrawatt
GTY3620034P0002

KS 17-2 test lead set

1 in stock. Ready to ship in 1 business day

CHF 46.00

About the Manufacturer

Gossen Metrawatt

Safety through competence. With over 100 years of experience, Gossen Metrawatt offers you unique products for measurement and testing technology as well as industrial metrology. The products stand for quality, reliability, safety and progressiveness, but also for dynamic and ergonomic design, high ease of use and unique innovative spirit.
