Gossen Metrawatt M700D | Metratester 5+ device tester test device VDE0701-0702

Name: M700D | Metratester 5+ device tester test device VDE0701-0702
Brand: Gossen Metrawatt
SKU: M700D
Price: 1029.0 CHF
Availability: InStock

Manufacturer number: M700D

2 in stock. Ready to ship in 1 business day

CHF 1,029.00

plus VAT. CHF 1,112.35 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Gossen Metrawatt M700D | METRATESTER5 + test device VDE0701-0702 with residual current measurement.

Insulation resistance 0 ... 19.99 MOhm
Differential current 0.01 .. 19.99 mA
Protective conductor resistance 0 ... 19.99 ohms
Replacement leakage current 0 ... 19.99 mA
De-energized 0 ... 1.999 mA
Mains voltage 207 V ... 253 V
Consumer current 0 ... 16.00 A
Dimensions WxHxD 190 x 140 x 95 mm
Weight about 1.3 kg

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	M700D
Automatic test sequence:	No
DIN VDE0544-4 / IEC 60974-4:	No
DIN VDE 0701-0702:	Yes
DIN VDE 0751 / IEC62353:	No
Differential power:	0,01 - 19,99 mA
Dimensions (L x W x H) (mm):	190 x 140 x 95
EN 50678 (prepared):	No
EN 50699 (prepared):	No
Earth conductor 10A:	No
Earth conductor 25A:	No
High voltage test DC:	No
Interfaces:	No
Isolation:	0,05 - 19,99 MΩ
Measured value memory:	No
Mobile:	Yes
Model:	GMC Metratester 5+
Protective earth less than 200mA:	Yes
Software included:	No
Stationary:	No
Touch Display:	No
Weight (kg):	1.3

Documents & Downloads

Datasheet

pdf | 0.32 MB

Description

M700D | Metratester 5+ device tester test device VDE0701-0702

Test device for DIN VDE 0701-0702 METRATESTER 5 Plus (M700D): Device for testing the electrical safety of electrical equipment in accordance with DIN VDE 0701-0702. Large digital LCD display, check of the mains connection by finger contact and signal lamp.

Display functions: All measured values are displayed on a large digital display so that they are easy to read. In addition, limit violations are signaled optically and partly acoustically.

Ideal for training and service / service technicians

Lieferumfang

Tester including power cord with safety plug and a permanently attached probe cable with test tip and a clip-on alligator clip
1 cable set KS17-4 for insulation and touch current measurement
1 instruction manual
1 factory calibration certificate

Accessoires (2 products )

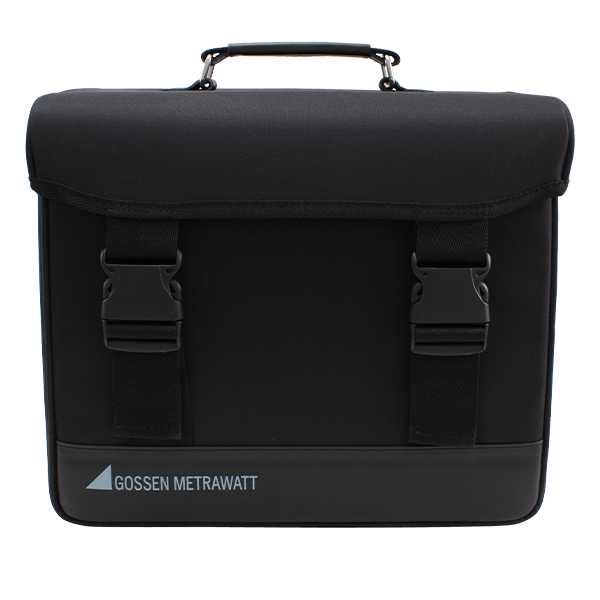

Gossen Metrawatt Z700D
