Gossen Metrawatt PROFITEST Intro | Test device, VDE 0100/0413, starter package (M503A)

Name: PROFITEST Intro | Test device, VDE 0100/0413, starter package (M503A)
Brand: Gossen Metrawatt
SKU: M503A
Price: 2157.0 CHF
Availability: BackOrder

Manufacturer number: M503A

Ready to ship in 5 to 10 business days

CHF 2,157.00

plus VAT. CHF 2,331.72 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Gossen Metrawatt PROFITEST INTRO (M503A) starter package, test device for DIN VDE 0100-600 / IEC 60364-6 tests in a set with PRO Schuko measuring adapter, PRO jumper, universal carrying case F2010, battery pack master and charger.

The tester enables tests according to the following international standards:
IEC 60364, DIN VDE 0100, DIN VDE 0105, DIN EN 61557, CEI 64-8, ÖVE / ÖNORM 8001-6, NIV / NIN, CSN 33 2000-6, NEN 1010-6, GOST R (ГОСТ Р) 50571.16- 99, IEC 61010
Measurement of RLO, ZL-PE, ZL-N, RISO, RE, ΔU, rotating field and voltage
OFFSET management RL-PE / RN-PE / RL-N
Measuring functions can be selected directly via rotary switches
RCD test type A, AC, F, B, B +, EV, MI, G / R, SRCDs, PRCDs
Display of permitted fuse types for electrical systems
Measuring the phase sequence (phase sequence, highest chained voltage)
Measurement of the touch voltage via finger contact
Connection of RFID or barcode scanners
Individual measurement memory and creation of a memory structure
Help function with connection diagrams
Bidirectional data exchange via USB, DDS-CAD, epINSTROM
Measurement category CAT III 600 V / CAT IV 300 V
International user guidance (12 languages)
ETC software (Electrical Testing Center) for creating tree structures and documentation according to ZVEH
Multiple display with dot matrix 128 x 128 dots backlit (transflective),
Dimensions: 65 mm x 65 mm
Dimensions: W 225 mm x L130 mm x H140 mm
Weight approx. 1.5 kg with batteries / NiMH batteries
Degree of protection housing IP52, test leads and connections IP40

Technical Data

All-current sensitive RCDs type B, B+:	Yes
Article number:	M503A
Automatic test sequence:	No
Check residual voltage:	No
Counter start-up:	No
DIN VDE 0100 / IEC 60364-6:	Yes
Dimensions (L x W x H) (mm):	225 x 130 x 140
Insulation measurement 50V:	Yes
Insulation measurement 100V:	Yes
Insulation measurement 250V:	Yes
Insulation measurement 325V:	Yes
Insulation measurement 500V:	Yes
Insulation measurement 1000V:	Yes
Interfaces:	USB
Measured value memory:	50000
Mobile:	Yes
Model:	Profitest INTRO, Starterpaket
Rotating field direction:	Yes
Selective, SRCDs, PRCDs, type G/R:	Yes
Software included:	ETC
Stationary:	No
Touch Display:	No
Voltage drop:	Yes
Warranty (years):	10
Weight (kg):	1.5
e-Mobility (prepared):	No

Description

PROFITEST Intro | Test device, VDE 0100/0413, starter package (M503A)

Universal, handy and robust tester for all tests of the effectiveness of protective measures in electrical systems, as required in IEC 60364-6 (DIN VDE 0100-600) and other country-specific standards as well as in the individual sections of DIN EN 61557 (VDE 0413) are defined.

Due to its intelligent, ergonomic design, intuitive operation and its sophisticated technical concept, the PROFITEST INTRO is consistently oriented to everyday tasks and makes it the ideal companion for every electrical engineer.

Lieferumfang

1 test device M503A
1 shoulder strap
1 battery pack
1 test leads (Z503L)
1 PRO Schuko measuring adapter (Z503A)
1 PRO jumper (Z503J)
1 universal carrier bag (F2010)
1 battery pack master and charger
1 factory calibration certificate
1 brief operating instructions
1 Supplement of safety information

Accessoires (19 products)

Gossen Metrawatt
GTZ3603000R0001

A3-32, 5-pole three-phase adapter for CEE sockets 32A

Ready to ship in 5 to 10 business days

CHF 378.00

Gossen Metrawatt
Z503G

PRO-PE clip, flat measuring probe for Profitest Master / PRIME

1 in stock. Ready to ship in 1 business day

CHF 91.00

Gossen Metrawatt
Z503K

PRO Schuko measuring adapter for PROFITEST INTRO

Ready to ship in 5 to 10 business days

CHF 75.00

Gossen Metrawatt
Z503O

SORTIMO L-BOXX PROFITEST INTRO insert

1 in stock. Ready to ship in 1 business day

CHF 136.00

Gossen Metrawatt
Z550C

Ever-ready case METRISO G500 / G1000 / + / INTRO

Ready to ship in 5 to 10 business days

CHF 139.00

Gossen Metrawatt
Z502F

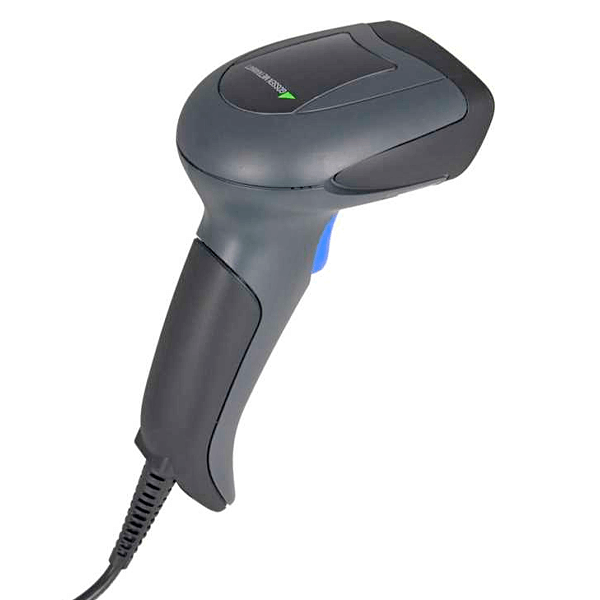

Barcode reader RS232 for Profitest Master

Ready to ship in 5 to 10 business days

CHF 905.00

Gossen Metrawatt
Z502R

Charging power supply for test device Profitest MPRO, MXRTA, METRISO

1 in stock. Ready to ship in 1 business day

CHF 138.00

Gossen Metrawatt
Z502Z

Magnetic measuring tips with touch protection set with magnetic holder

Ready to ship in 5 to 10 business days

CHF 282.00

Gossen Metrawatt
Z503D

SORTIMO L-BOXX GMC-I

Ready to ship in 5 to 10 business days

CHF 237.00

Gossen Metrawatt
Z503L

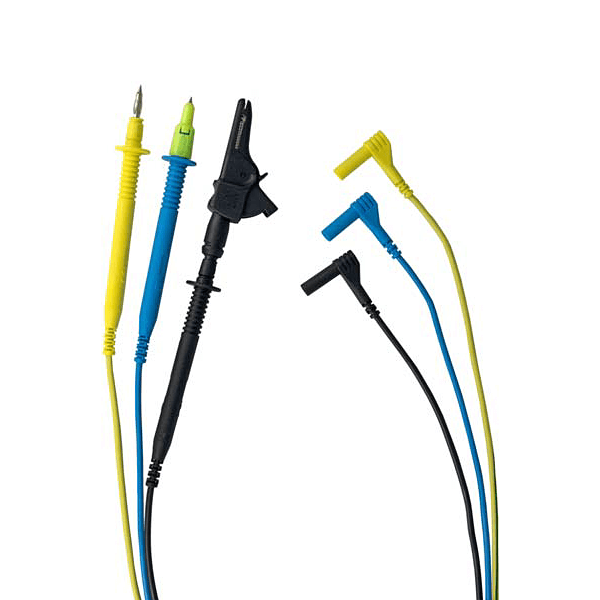

Cable set KS-PROFiTEST INTRO test leads: black, blue, yellow-green
