Gossen Metrawatt M311D | Metraclip 61 current clamp AC, 300A, 3 digits

Name: M311D | Metraclip 61 current clamp AC, 300A, 3 digits
Brand: Gossen Metrawatt
SKU: M311D
Price: 520.0 CHF
Availability: OutOfStock

Manufacturer number: M311D

Ready to ship in 5 to 10 business days

CHF 520.00

plus VAT. CHF 562.12 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Gossen Metrawatt MBD0010 | Digital leakage current clamp MetraClip61.

DATA HOLD and maximum / minimum display
Measurement of leakage currents and charging currents
Power factor measurement cosine φ
Display digitally and by bar graph
Measuring ranges 30/300 mA and 30/300 A.
Insensitive to external magnetic fields
Pliers opening 40 mm
Compact, handy and light

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	AC ±1,2 % - ±5 %
Article number:	M311D
Current measuring range AC/DC:	AC 10 mA - 300 A
Dimensions (L x W x H) (mm):	176 x 64 x 23
Diode test / continuity test:	No / No
Direction of rotation:	No
Enclosure (mm):	40
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	No / No
Model:	GMC Metraclip 61
Number of positions:	3.5
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	No
Resolution current measurement AC/DC:	AC 10 mA
Temperature measuring range:	No
Weight (kg):	0.125

Documents & Downloads

Datasheet

pdf | 0.19 MB

Description

M311D | Metraclip 61 current clamp AC, 300A, 3 digits

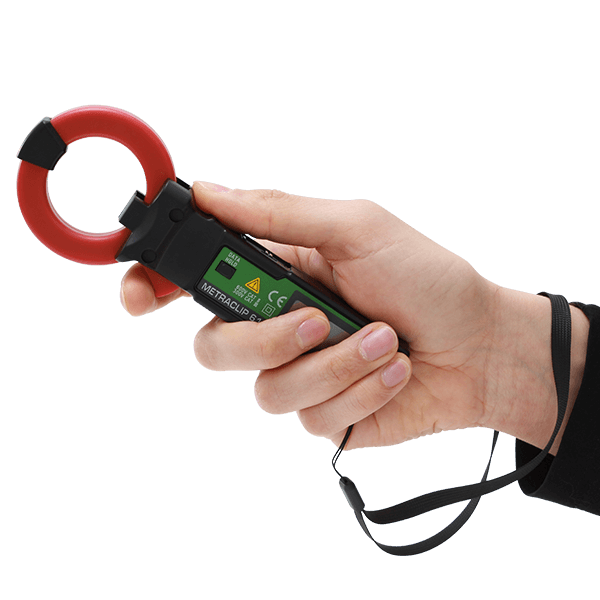

The Metraclip 61 is a digital clamp meter with a 3 1/2 digit display. The measured values are displayed digitally and by bar graph. Leakage and charge currents can be measured. The measuring range can be selected automatically or manually, two measuring ranges (30 mA / 300 mA and 30 A / 300 A) are available.

The Metraclip 61 current clamp is handy, compact and light, is sensitive to external magnetic fields and it offers a large clamp opening with a diameter of 40 mm. The current measured value can be "frozen" in the display using the DATA HOLD function. Exceeding the measuring range is signaled optically - in the display "OL".

A power saving circuit is also integrated in the Metraclip 61 clamp meter, it switches off automatically after a 10-minute break. With 2x LR44 the operating time is approx. 50 hours. If the operating voltage is too low, it is displayed immediately.
