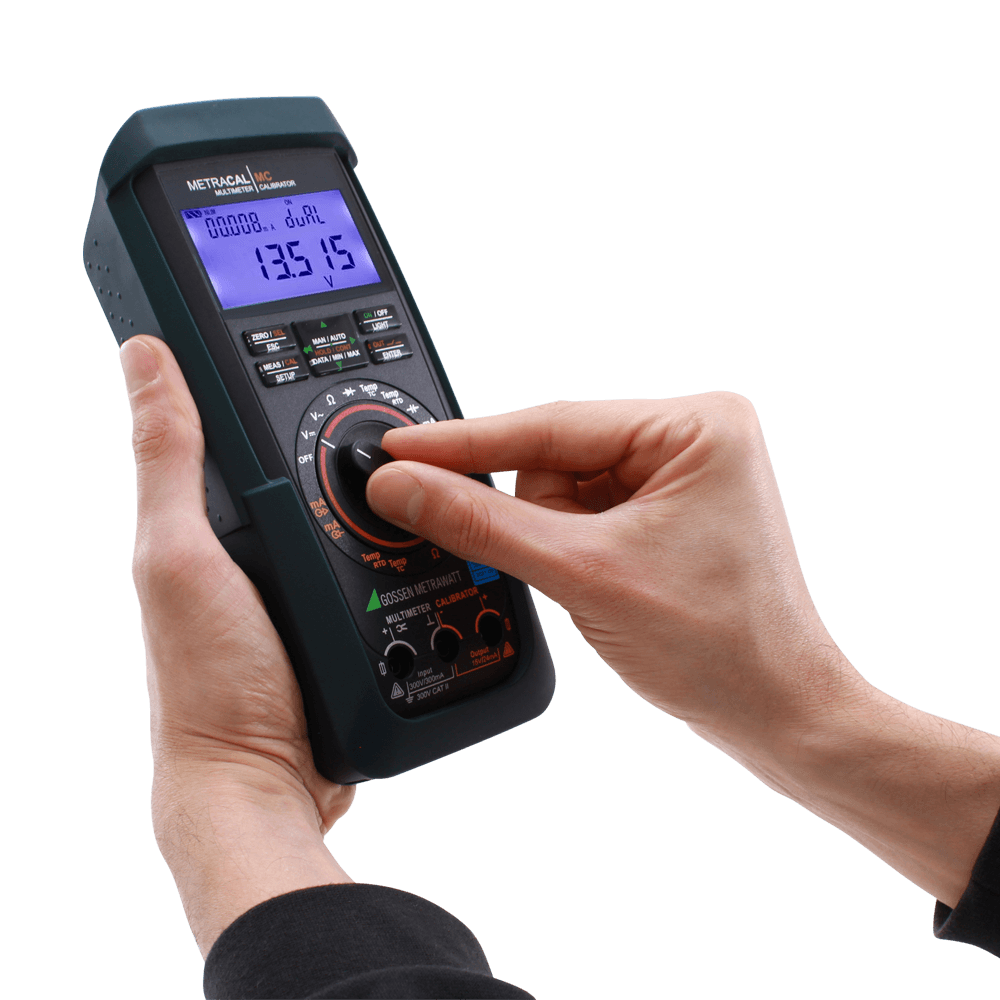

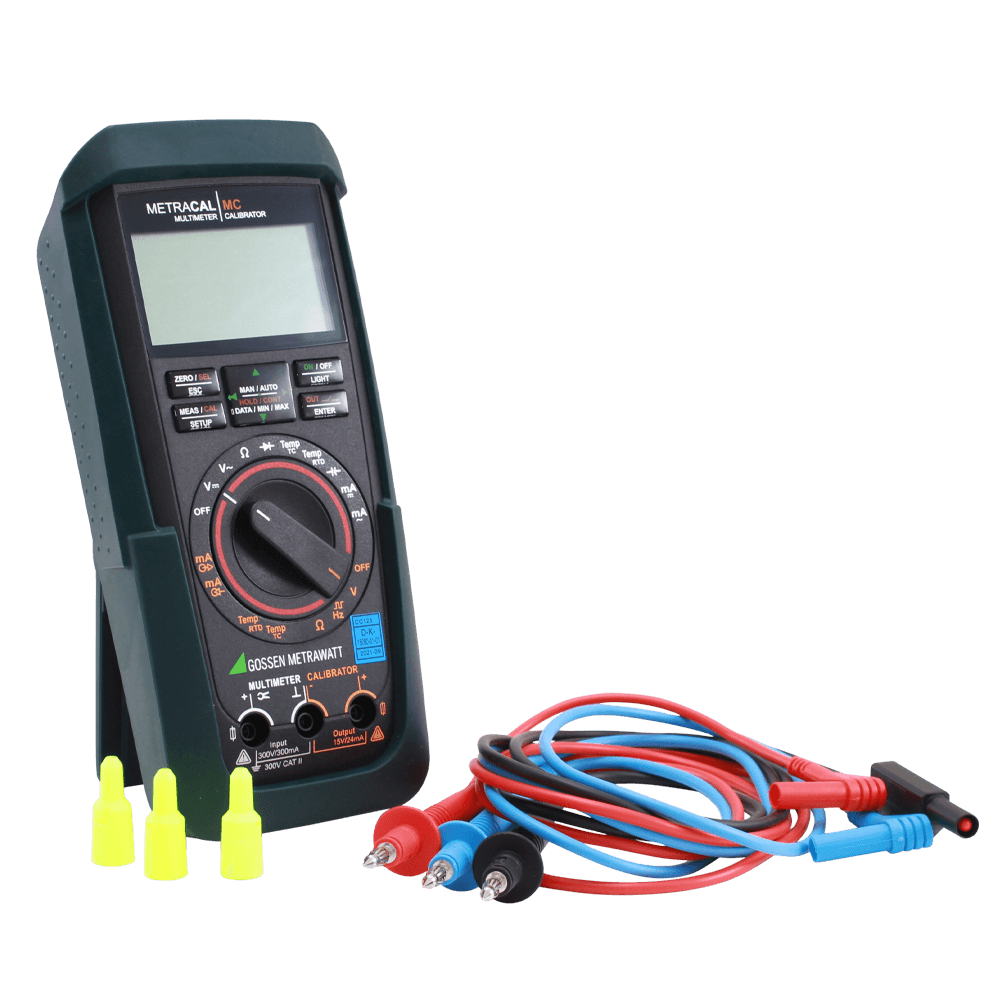

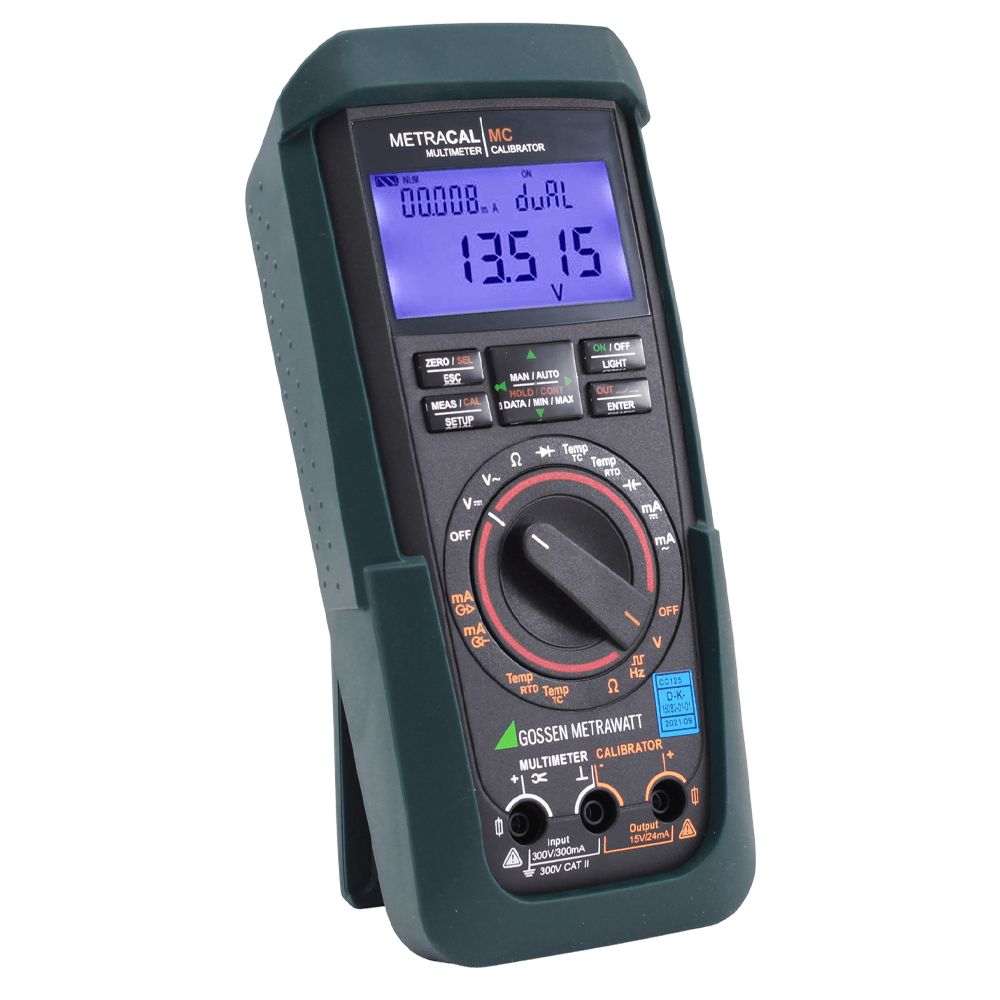

Universal calibrator, simulator and multimeter - METRAHIT METRACAL MC from Gossen Metrawatt.

Universal calibrator, simulator and multimeter
- mA / mV ... V / ° C (Pt100 / 1000, Ni100 / 1000,
- Thermocouple J, L, T, U, K, E, S, R, B, N) / 30 ... 2000 Ω
Dual mode ¡V simultaneous giving and measuring (U / I)
Measure and give in absolute and percentage (scaled)
Memory for measurement results: 16 Mbit
Frequency and pulse generator: 1 Hz ... 2 kHz
Ramps and stair functions
IR interface; optional IR-USB adapter and calibration software METRAwin 90-2 (available in 2012)
Evaluation software Metrawin10 for the multimeter function
Transmitter simulator (sink 0 ... 24 mA)
Robust and EMC-safe construction
Precision multimeter (V, A, Ω, F, Hz, ° C / F)
30,000 (60,000) digits and triple display
RMS AC measurement (TRMS) up to 1 kHz
DAkkS (DKD) calibration certificate included
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M245A
Backlight:	Yes
Basic precision:	0,15 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	0,3 mA - 300 mA / 0,3 mA - 300 mA
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	30000
Electrical safety:	CAT II 1000 V, CAT IV 600 V
Frequency measuring range:	300 Hz - 300 kHz
Min. / Max. Recording:	Yes / Yes
Model:	METRACAL MC
Number of positions:	4.75
Resistance measuring range:	300 Ω - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	60 mV - 300 V / 60 mV - 300 V
Warranty (years):	3
Weight (kg):	0.43

Description

METRACAL MC | Multimeter, TRMS, 4 ¾ & calibrator (M245A)

The extremely compact and inexpensive multifunction process calibrator impresses with its robustness, easy handling, maximum functionality, accuracy and PC system capability.
The METRAHIT METRACAL MC streamlines measurement, calibration and revision work in the chemical process, laboratory and development, in the production area of electronic transmitters and in the adjustment and calibration of measurement components.
