Gossen Metrawatt M243E | MetraHit TECH multimeter, hand 4 ½ digits, without interface

Name: M243E | MetraHit TECH multimeter, hand 4 ½ digits, without interface
Brand: Gossen Metrawatt
SKU: M243E
Price: 641.0 CHF
Availability: InStock

Manufacturer number: M243E

1 in stock. Ready to ship in 1 business day

CHF 641.00

plus VAT. CHF 692.92 VAT plus shipping costs

or choose one of the following options:

Product inquiries

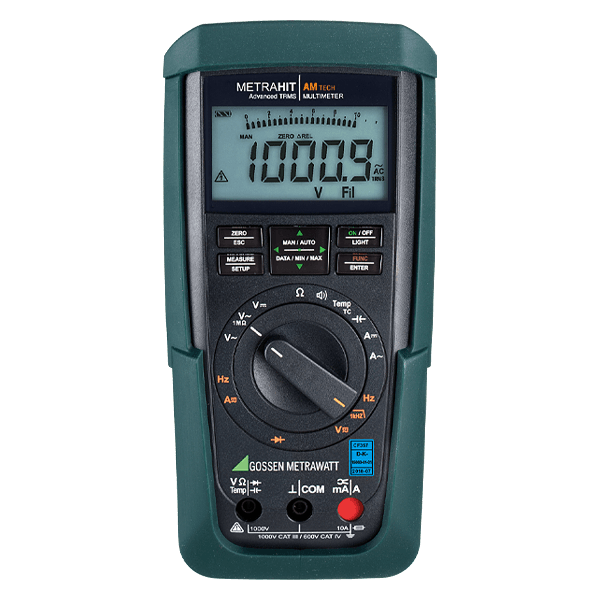

4½-digit TRMS digital multimeter MetraHit Tech with rubber protective cover from Gossen Metrawatt.

12,000 digits resolution
20 multimeter functions
AC voltage TRMS - DC voltage - AC + DC voltage
Current AC TRMS - Current DC - Current AC + DC TRMS
Frequency (Hz over voltage and current)
Temperature measurement with K thermocouples
Capacitance - continuity test - diode test - resistance
Additional adjustable transmission factor for connecting current sensors and transformers
with voltage or current output
Additional filter function and voltage measurement with reduced input resistance to limit interference, for example when measuring frequency converters
Manufacturer warranty 3 years for material and manufacturing defects, 1-3 years for calibration depending on the application

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M243E
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	10 nF - 1000 µF
Current measuring range AC/DC:	10mA-10A / 10mA-10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	11999
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	100 Hz - 100 kHz
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit TECH
Number of positions:	4.5
Resistance measuring range:	100 Ω - 40 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	100 mV - 1000 V / 100 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Description

M243E | MetraHit TECH multimeter, hand 4 ½ digits, without interface

4 ½ digit TRMS digital multimeter for rough industrial use.

Lieferumfang

Multimeter
Protective rubber cover
Test leads
battery
Brief operating instructions German / English
CD-Rom: Operating instructions German / English
DAkkS (DKD) calibration certificate
