Gossen Metrawatt M242E | Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover

Name: M242E | Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover
Brand: Gossen Metrawatt
SKU: M242E
Price: 557.0 CHF
Availability: OutOfStock

Manufacturer number: M242E

Ready to ship in 5 to 10 business days

CHF 557.00

plus VAT. CHF 602.12 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

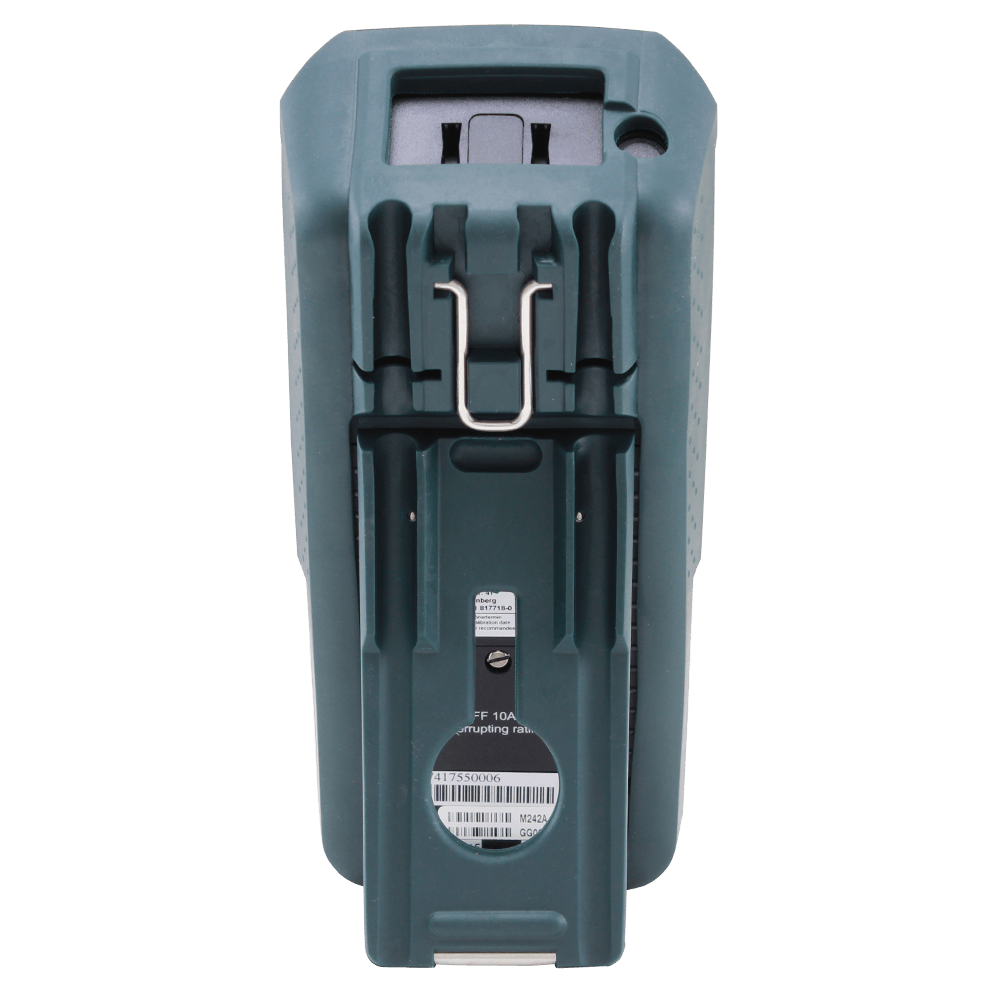

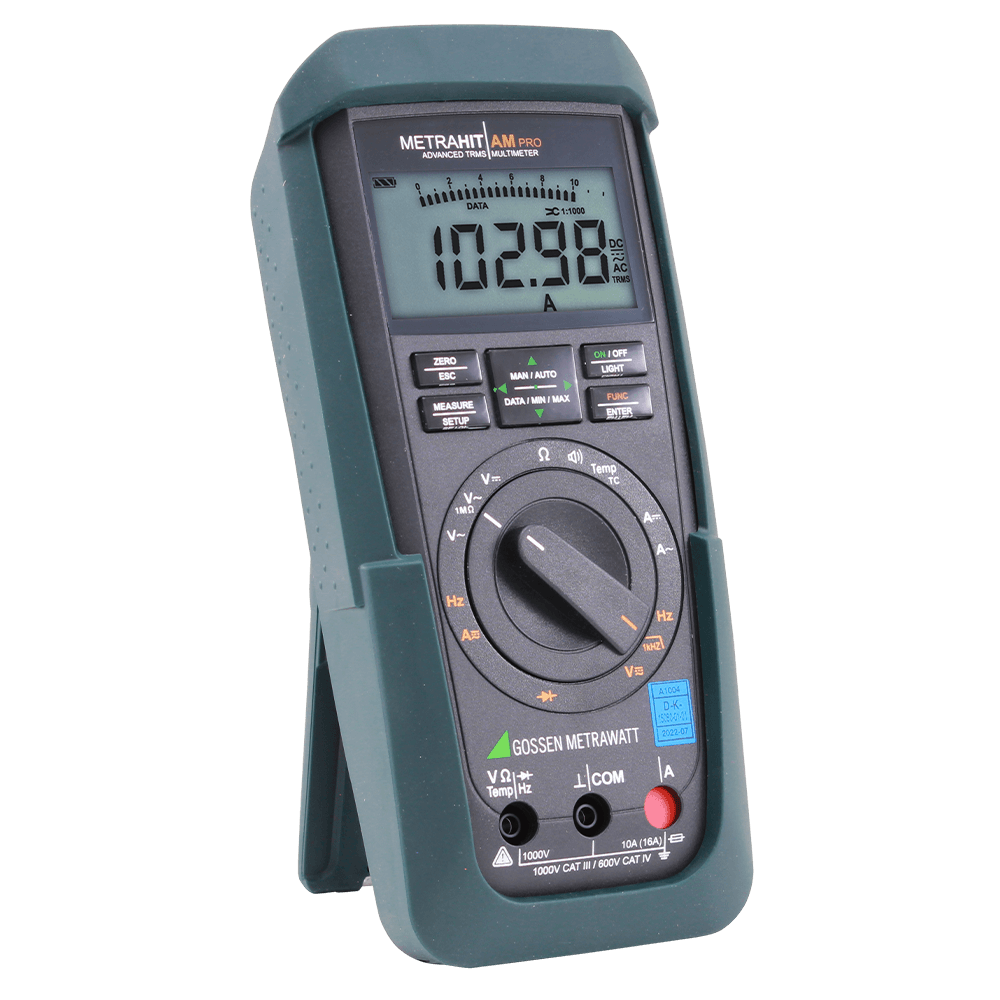

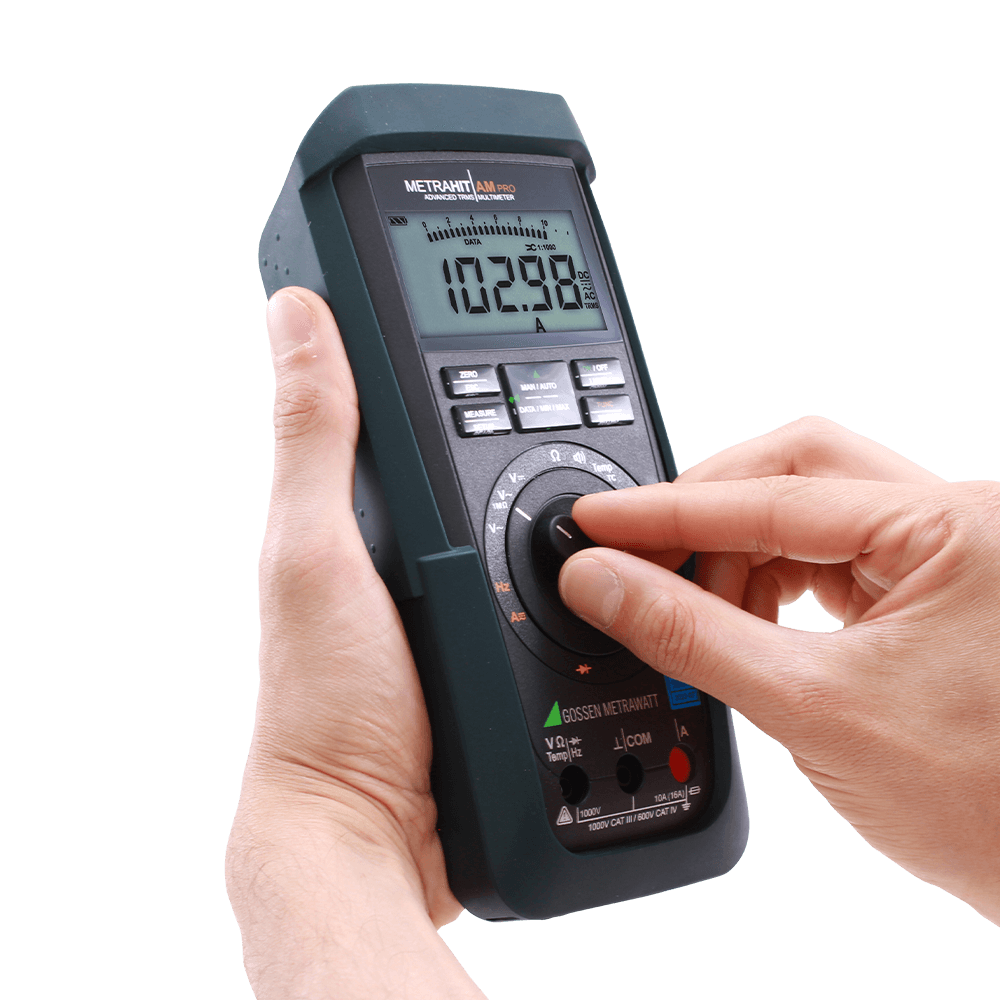

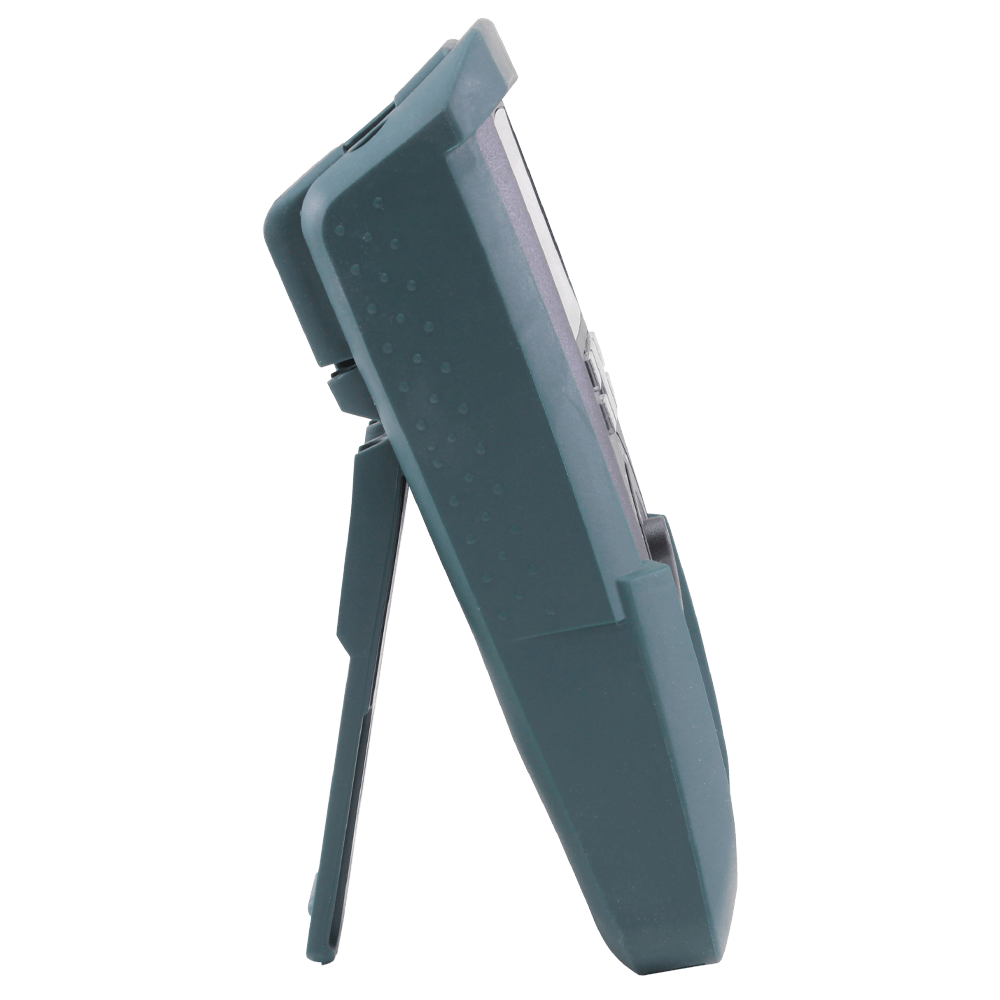

Professional 4½ digit TRMS digital handheld multimeter METRAHit PRO (M242E) with protective rubber cover from Gossen Metrawatt.

Resolution ± 12000 digits, 4½ digits
3 sockets with automatic socket lock ABS (patented)
Voltage measurement with a basic accuracy of ± 0.05% (VDC)
Auto range
Current measurement from 1 A to 10 A (16A) via a socket and a fuse
Large light blue illuminated display with extra large digits (15mm) in the display and analog bargraph for dynamic processes
separate battery and fuse compartment
dust and water protection according to protection class IP 52
Measurement category 1000V CAT III and 600V CAT IV
16 multimeter functions: voltage AC TRMS, voltage AC + DC TRMS, voltage DC, frequency (Hz), duty cycle, resistance, diode test, continuity test, current ACTRMS, current AC + DC TRMS, temperature with K-thermocouples
Additional filter function and voltage measurement with reduced input resistance to limit interference, for example when measuring frequency converters
Made in Germany
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M242E
Backlight:	Yes
Basic precision:	AC 1 % / DC 0,09 %
Capacity measuring range:	10 nF - 1000 µF
Current measuring range AC/DC:	1A-10A / 1A-10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	11999
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	100 Hz - 100 kHz
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit PRO+GH
Number of positions:	4.5
Resistance measuring range:	100 Ω - 40 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	100 mV - 1000 V / 100 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Description

M242E | Metrahit PRO + GH multimeter 4 1/2 digits, with rubber cover

The multimeters of the STARLINE generation METRAHIT PRO are absolutely robust, reliable digital multimeters with housings made of impact-resistant plastic. The devices are presented in a new design and are equipped with the very latest technology.

Lieferumfang

Multimeter
Protective rubber cover
Test leads
battery
Brief operating instructions German / English
CD-Rom: Operating instructions German / English
DAkkS (DKD) calibration certificate

Accessoires (20 products)

Gossen Metrawatt
Z207E

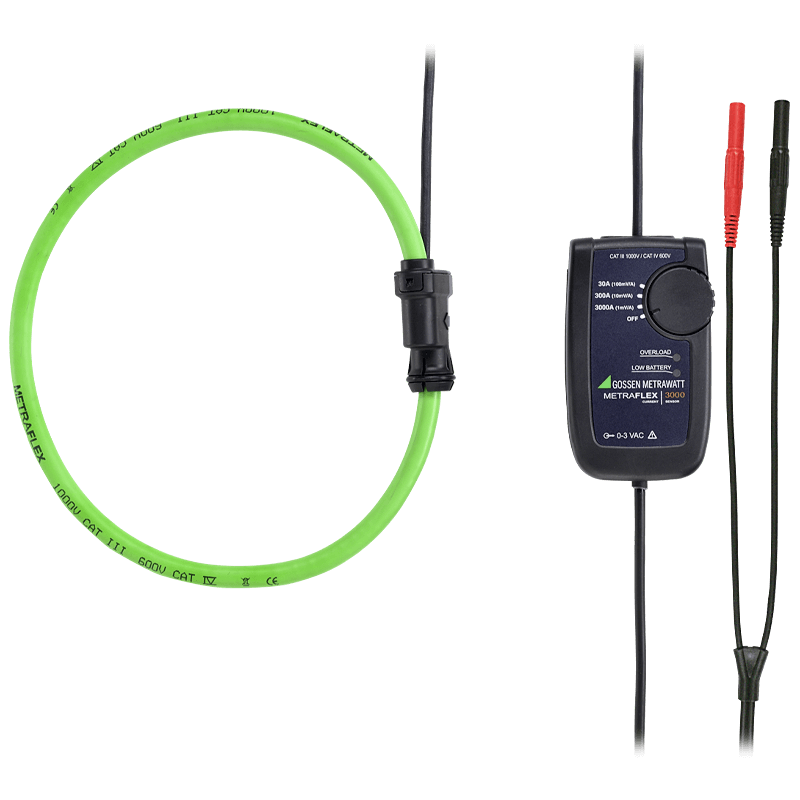

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

CHF 734.00

Gossen Metrawatt
GTZ3512000R0001

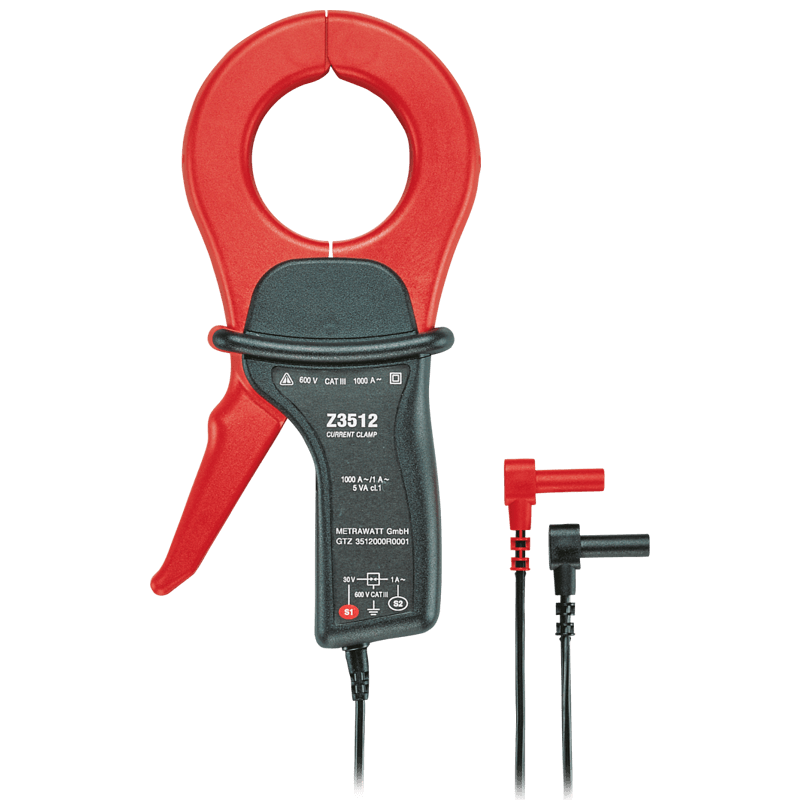

Z3512 current probe, 4 mm, 1000 A 50 Hz, I-Out

Ready to ship in 5 to 10 business days

CHF 355.00

Gossen Metrawatt
Z202B

CP330 Current Clamp, 4 mm, 300 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 536.00

Gossen Metrawatt
Z208B

WZ11B current probe, 4 mm, 200 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 324.00

Gossen Metrawatt
Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 236.00

Gossen Metrawatt
Z219C

WZ12C current probe, 4 mm, 150 A 48 Hz - 400 Hz, U-Out

Ready to ship in 5 to 10 business days

CHF 294.00

Gossen Metrawatt
Z104C

GH X-TRA protective cover, rubber for MetrahitBase / Pro / XTra / Tech

Ready to ship in 5 to 10 business days

CHF 55.00

Gossen Metrawatt
Z117A

HIT CLIP, for Metrahit magnetic holder, Velcro fastening

Ready to ship in 5 to 10 business days

CHF 68.00

Chauvin Arnoux
P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

CHF 69.00

Gossen Metrawatt
Z113A

HC20 hard case 275 x 229 x 83 mm

Ready to ship in 5 to 10 business days

CHF 78.00

Gossen Metrawatt
Z201B

CP30 current probe, 4 mm, 30 A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 629.00

Gossen Metrawatt
Z203B

CP1100 Current Clamp, 4 mm, 1000A DC - 20 kHz, U-Out

Ready to ship in 5 to 10 business days

CHF 489.00

Gossen Metrawatt
GTZ3409000R0001

Z3409 temperature sensor -40 .. + 600 ° C, Pt100

Ready to ship in 5 to 10 business days

CHF 174.00

Gossen Metrawatt
Z113B

HC30 hard case 394 x 294 x 106 mm

Ready to ship in 5 to 10 business days

CHF 123.00

Gossen Metrawatt
Z225A

Z3512A current probe, 4 mm, 1000A 10 Hz - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

CHF 776.00

Gossen Metrawatt
Z207M

Metraflex 300M, 3/30 / 300A AC current probe length = 160mm

Ready to ship in 5 to 10 business days

CHF 653.00

Gossen Metrawatt
Z110J

KY95-3 crocodile clip (1 pair rt + sw) for KS17-2 1000V / CAT III 16A

2 in stock. Ready to ship in 1 business day

CHF 52.00

Gossen Metrawatt
Z102A

TF220 temperature sensor PT1000 -50 to + 220 ° C, wire sensor

Ready to ship in 5 to 10 business days

CHF 94.00

Gossen Metrawatt
Z115B

Soft belt pouch large for a METRAHIT or METRAPort-Multi

Ready to ship in 5 to 10 business days

CHF 94.00

Gossen Metrawatt
Z115A

Hitbag belt pouch for Metrahit and Metraport

Ready to ship in 5 to 10 business days

CHF 87.00

Alternate products (10 products)

Gossen Metrawatt
METRAHIT PM XTRA (formerly EXTRA)

Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Ready to ship in 5 to 10 business days

CHF 971.00

Gossen Metrawatt
M240A

Metrahit X-TRA multimeter, hand 4 ½ digits, 12,000 digits, IR interface, DAkkS

Ready to ship in 5 to 10 business days

CHF 734.00

Gossen Metrawatt
M252A

Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Ready to ship in 5 to 10 business days

CHF 816.00

Gossen Metrawatt
M243A

Metrahit TECH multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

1 in stock. Ready to ship in 1 business day

CHF 601.00

Gossen Metrawatt
M242A

Metrahit PRO multimeter, hand 4 ½ digits, 12,000 digits, DAkks

Ready to ship in 5 to 10 business days

CHF 517.00

Gossen Metrawatt
M206A

Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

CHF 436.00

Gossen Metrawatt
M241A

Metrahit BASE multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

Ready to ship in 5 to 10 business days

CHF 440.00

Gossen Metrawatt
M234D

Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

CHF 914.00

Gossen Metrawatt
METRAHITE OUTDOOR

Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Ready to ship in 5 to 10 business days

CHF 838.00

Gossen Metrawatt
MetraHit 2+

Multimeter, TRMS, 3 6/7, IP40 (M205A)

Reordered - in stock. Delivery time on request

CHF 288.00

Recommendations (3 products)

Gossen Metrawatt
M311D

Metraclip 61 current clamp AC, 300A, 3 digits

Ready to ship in 5 to 10 business days

CHF 520.00

Gossen Metrawatt
GTY3620034P0002

KS 17-2 test lead set

1 in stock. Ready to ship in 1 business day

CHF 46.00

Gossen Metrawatt
M611D

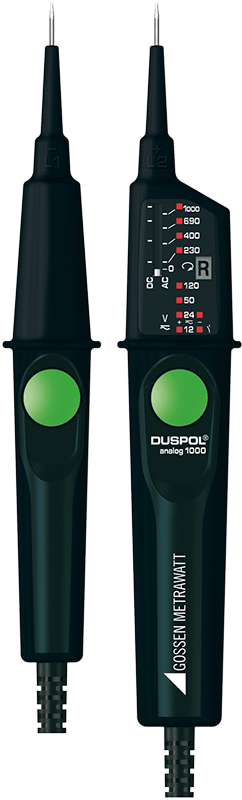

Duspol analog 1000 voltage tester
