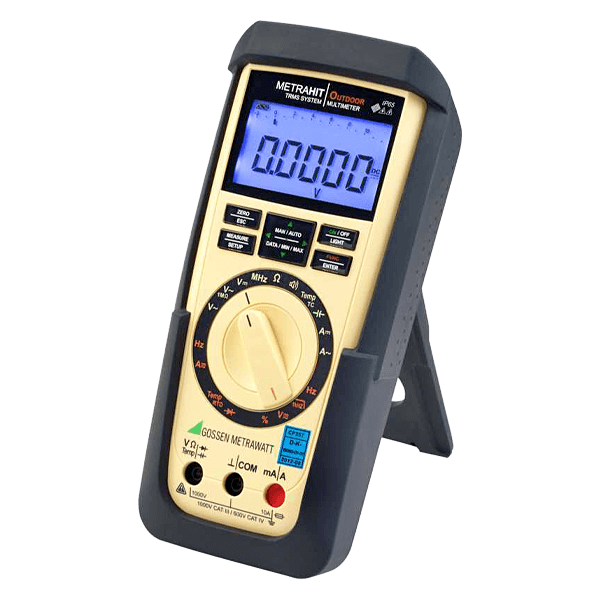

Gossen Metrawatt METRAHITE OUTDOOR | Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Name: METRAHITE OUTDOOR | Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)
Brand: Gossen Metrawatt
SKU: M240O
Price: 838.0 CHF
Availability: OutOfStock

Manufacturer number: M240O

Ready to ship in 5 to 10 business days

CHF 838.00

plus VAT. CHF 905.88 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M240O | 4½-digit TRMS multimeter METRAHIT OUTDOOR with 23 multimeter functions and an absolutely robust, shockproof, water and dustproof housing that can be used even under extreme temperatures.

Special robust design with impact and shockproof housing and additional rubber protective cover
Special color "sand"
Dustproof IP 6x
Water jet IP x5
Patented sealed socket lock
Resolution ± 12000 digits, 4½ digits
Voltage measurement with a basic accuracy of ± 0.05% (VDC)
Auto range
Current measurement from 100 µA (resolution 10nA) to 10 A (16A) via a socket and a fuse
Large light blue illuminated display with extra large digits (15mm) in the display and analog bargraph for dynamic processes
23 multimeter functions voltage AC TRMS, voltage AC + DC TRMS, voltage DC, frequency (Hz, MHz), duty cycle, resistance, diode test, continuity test, capacitance, current ACTRMS, current AC + DC TRMS, temperature with Pt 100/1000 sensors and K Thermocouples
Additional filter function and voltage measurement with reduced input resistance to limit interference, for example when measuring frequency converters
4MB data storage for long-term measurements as a data logger
Power supply connection for battery-independent operation
Optional: Infrared / USB interface for communication with the PC and MetraWin 10 software
Measurement category 1000V CAT III and 600V CAT IV
Made in Germany
3 year guarantee

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M240O
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	10 nF - 1000 µF
Current measuring range AC/DC:	100µA - 100mA / 100µA - 100mA
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	200 x 87 x 45
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	12000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	100 Hz - 1 MHz
Interfaces:	None
Min. / Max. Recording:	Yes / Yes
Model:	Metrahit Outdoor
Number of positions:	4.5
Resistance measuring range:	100 Ω - 40 MΩ
Special features:	including DakkS calibration certificate, IP65
Temperature measurement ( PT100 / Type K / Type J):	Pt 100 / Pt 1000 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	100 mV - 1000 V / 100 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.35

Description

METRAHITE OUTDOOR | Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

The OUTDOOR multimeter from Gossen Metrawatt was specially developed and built for the challenges that engineers and technicians face in tough applications. It is absolutely robust, shockproof, waterproof, dustproof and can also be used under extreme temperatures.

Lieferumfang

Multimeter including measuring cable set KS17-2
Protective rubber cover
Two 1.5 V AA batteries
Brief operating instructions
CD-ROM with operating instructions (D & GB)
DAkkS (DKD) calibration certificate
