Gossen Metrawatt M234D | Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

Name: M234D | Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate
Brand: Gossen Metrawatt
SKU: M234D
Price: 914.0 CHF
Availability: InStock

Manufacturer number: M234D

2 in stock. Ready to ship in 1 business day

CHF 914.00

plus VAT. CHF 988.03 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Gossen Metrawatt M234D | 4-digit TRMS folding multimeter METRAport 40S with "Auto Fuse".

Precision multimeter, resolution 100uV, 100nA, 100mOhm
True RMS measurement TRMS VAC and IAC up to 1 kHz
Voltage measurement 300 mV, 3/30/300/600 VDC / AC
Current measurement 300 uA, 3/30/300 mA, 15 ADC / AC directly, via converter or current sensor with voltage output
Resistance measurement 300 Ohm, 3/30/300 kOhm, 3/30 MOhm
Frequency measurement: 300 Hz, 3/100 kHz
Capacitance measurement: 30/300 nF, 3/30/300/3000 uF
Measured value storage and MIN-MAX registration
Signaling of overload and defective fuse
Temperature measurement with automatic Pt sensor detection: Pt100, Pt1000
Automatic and manual measuring range selection
Digital display 20mm with additional analog scale
Incl. DAkkS (DKD) calibration certificate
Dimensions 146 x 118 x 44 mm
Weight about 450g including batteries
3 year warranty

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	M234D
Backlight:	Yes
Basic precision:	0,05 %
Capacity measuring range:	30 nF - 300 µF
Current measuring range AC/DC:	300µA - 10A / 300µA - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	146 x 118 x 44
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	31000
Electrical safety:	CAT II 300 V
Frequency measuring range:	300 Hz - 1000 kHz
Interfaces:	USB
Min. / Max. Recording:	Yes / Yes
Model:	Metraport 40S
Number of positions:	4.75
Resistance measuring range:	30 Ω - 30 MΩ
Special features:	including DakkS calibration certificate
Temperature measurement ( PT100 / Type K / Type J):	Pt100 / Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	300 mV - 600 V / 30 mV - 600 V
Warranty (years):	3
Weight (kg):	0.45

Documents & Downloads

Datasheet

pdf | 0.19 MB

Description

M234D | Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

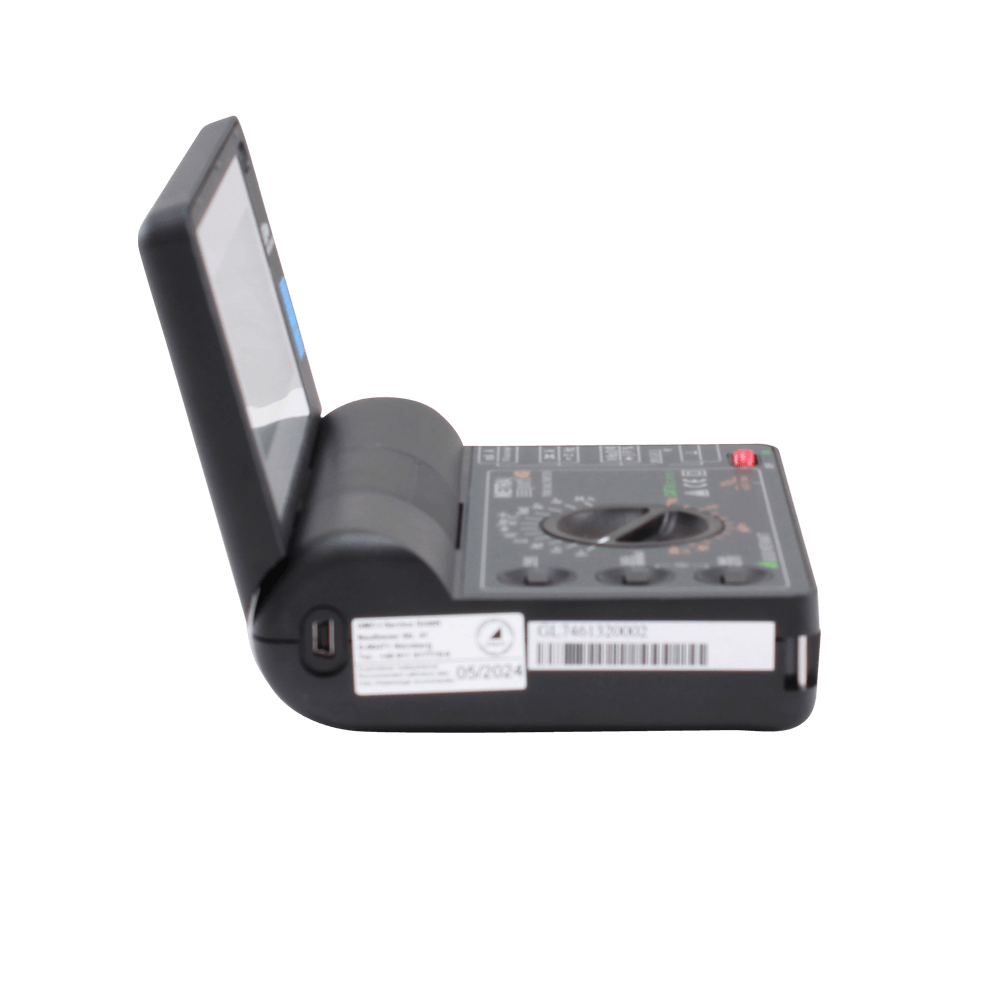

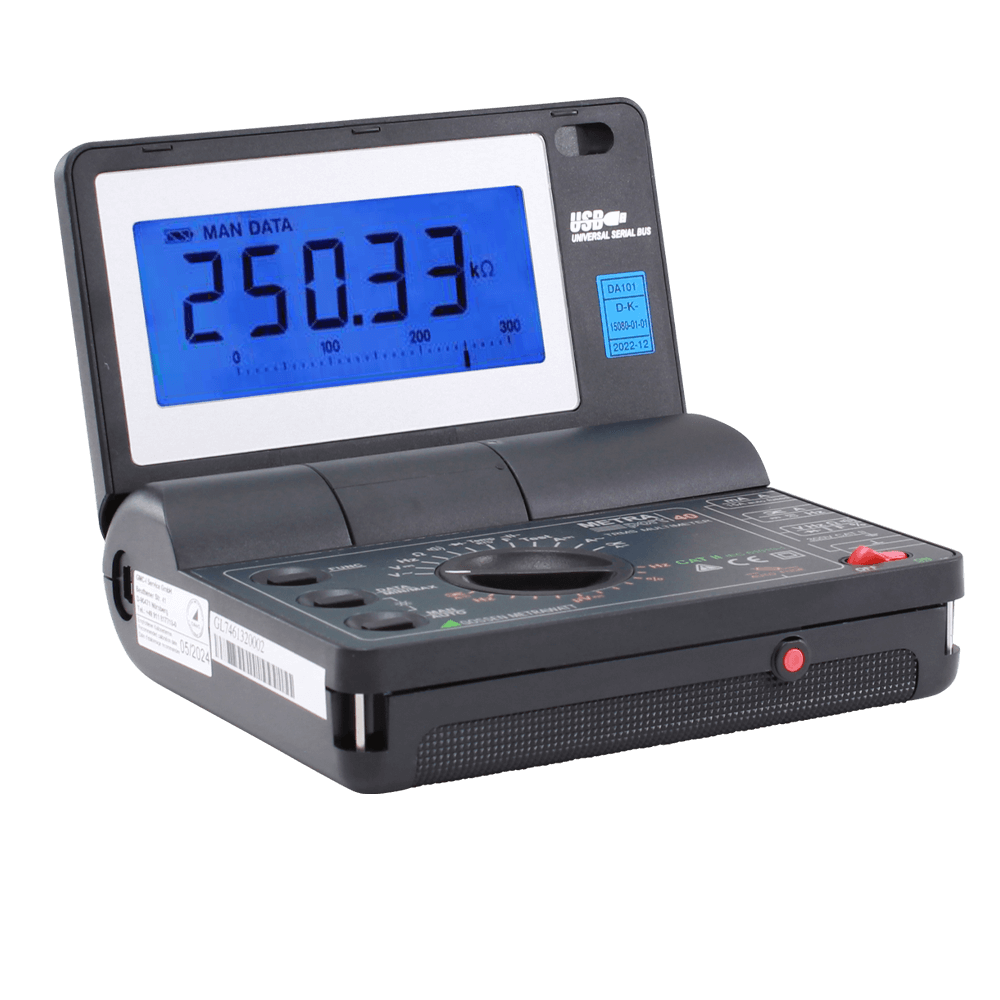

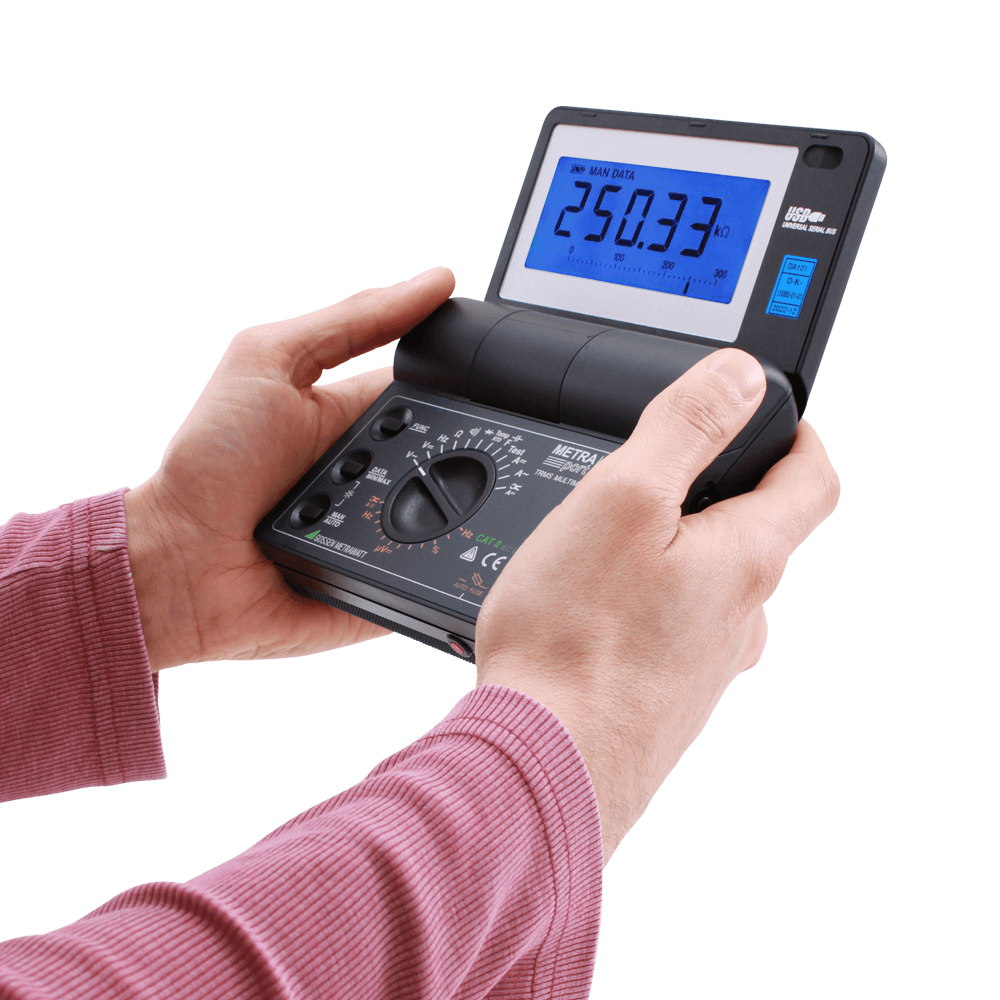

Digital folding multimeter for universal use in general electrical engineering, electronics and automotive service. Optimal adjustment of the reading angle by tilting technique, with the device strapped both hands are free to measure.

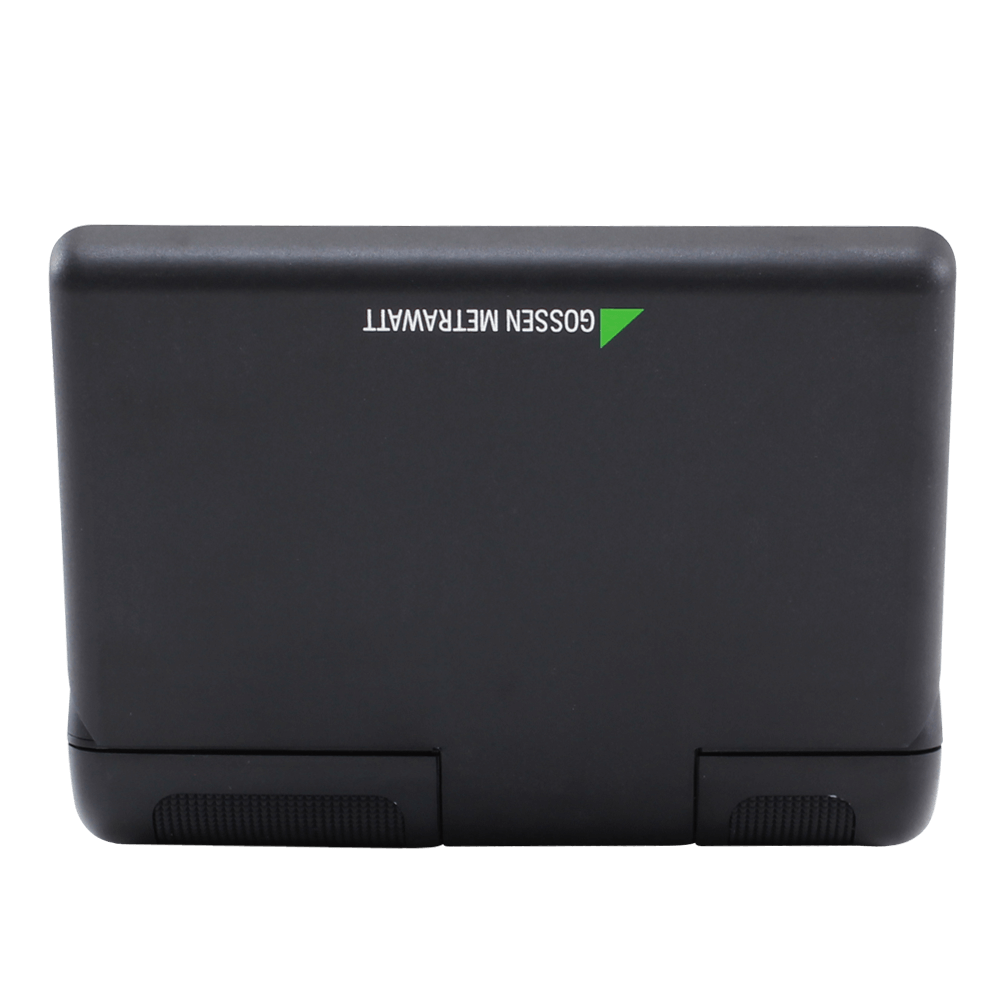

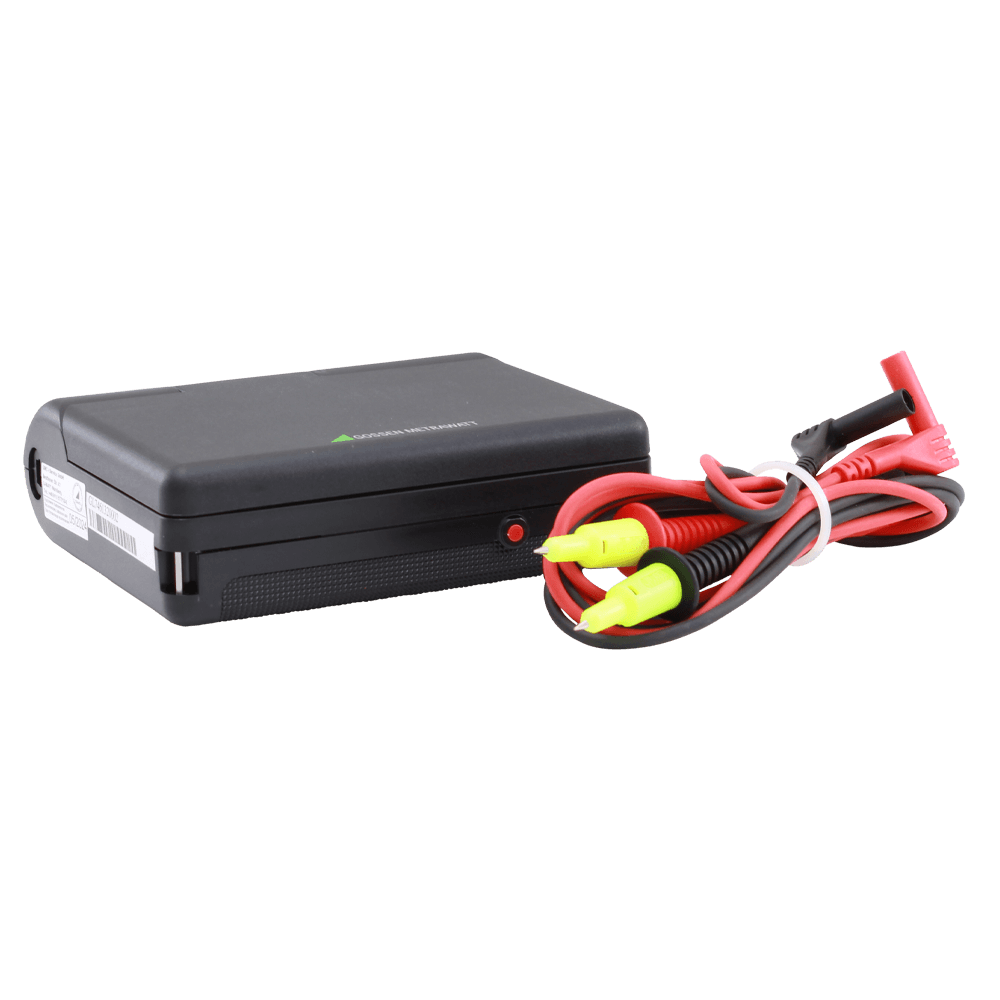

If the device is closed, it switches off automatically, display and operating parts are protected. Automatic overcurrent shutdown limits maintenance costs and reduces downtime.
