Teledyne FLIR ONE Edge | Thermal imaging camera for smartphones, 80 x 60 px, MSX technology, -20°-120°C (11001-0101)

Name: ONE Edge | Thermal imaging camera for smartphones, 80 x 60 px, MSX technology, -20°-120°C (11001-0101)
Brand: Teledyne FLIR
SKU: 11001-0101
Price: 320.0 CHF
Availability: OutOfStock

Manufacturer number: 11001-0101

Reordered - in stock. Delivery time on request

CHF 320.00

plus VAT. CHF 345.92 VAT plus shipping costs

or choose one of the following options:

Product inquiries

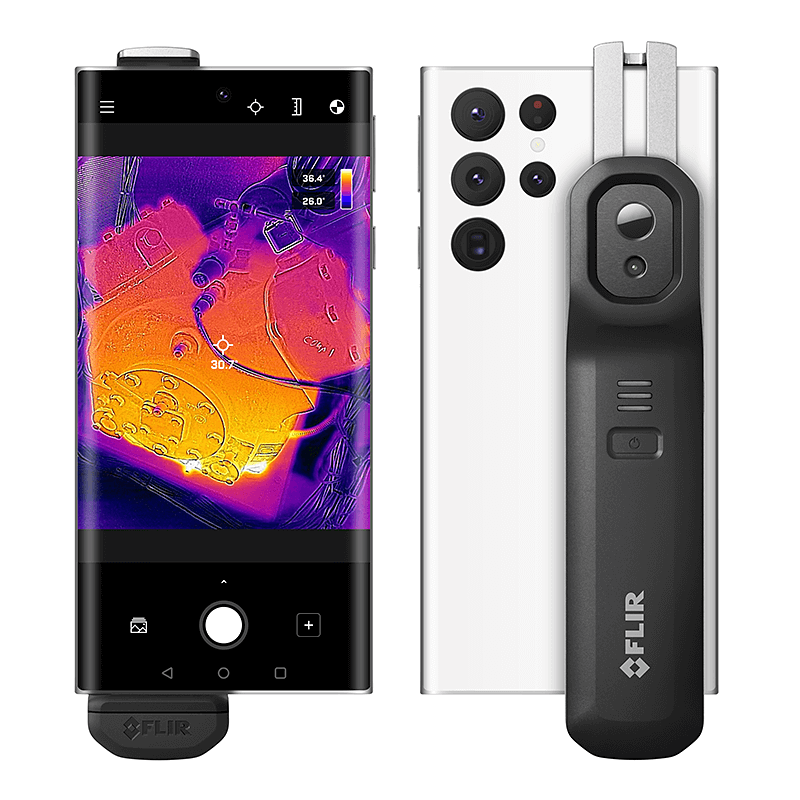

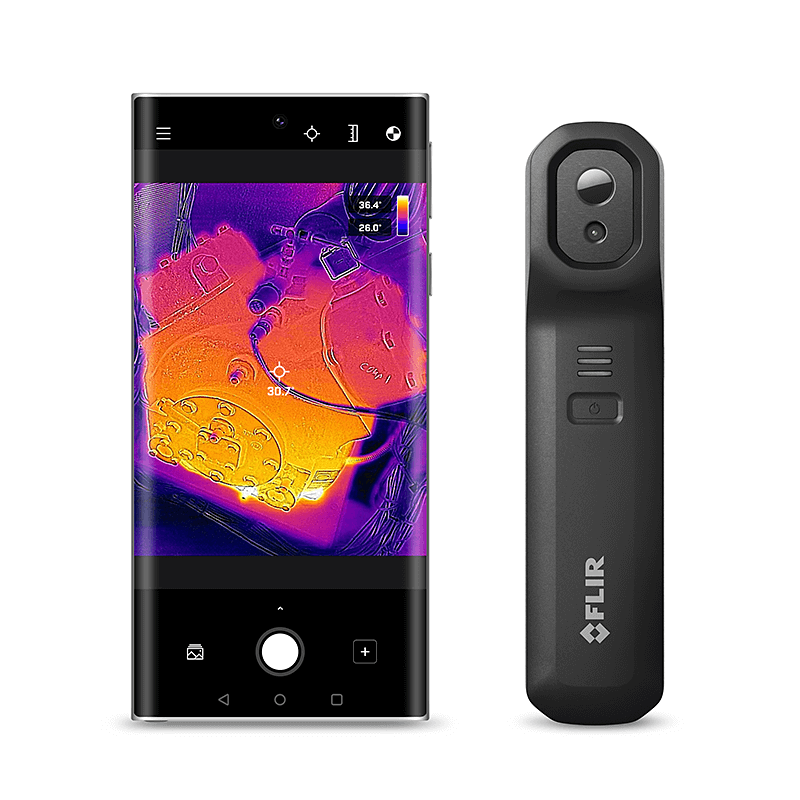

Teledyne FLIR ONE Edge | Thermal imaging camera for Android and iOS devices, 80 x 60 px (4,800 temperature measuring points) with MSX technology for razor-sharp thermal images and a temperature range of -20° to 120°C.

Thermal and visual camera with MSX technology for razor-sharp thermal images
Spectral range: 8 - 14 µm
Thermal image resolution: 80 × 60 px (4,800 temperature measurement points)
Visual image resolution: 640 x 480
HFOV/VFOV: 54° x 42°
Image recording rate: 8.7 Hz
Focus: fixed 30 cm to infinity
Object temperature range -20°C – 120°
Accuracy ± 3°C or ± 5% of the difference between ambient and scene temperatures
Warm-up time 60s after boot-up when the camera is in the temperature range of 15°C and 35°C and the scene is within 5°C to 120°C.
Emission settings: Matt, Semi-Matte, Satin, Glossy

Generally:

Certification: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU
Specified ambient temperature range: -10°C - 50°C, with battery charging: 0°C - 45°C
Temperature range when switched off: -40°C - 70°C
Mechanical shock/fall height max: 2m
Dimensions: W 35 × H 37.5 × D 149 mm
Weight: 153g

Interfaces

Wireless connection to iOS and Android devices
Charging via USB-C socket (5V/1A)
Battery charging time: 60-90 min
Battery life: approx. 2.5 hours

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	11001-0101
Model:	One EDGE
Resolution in pixels:	80 x 60
Temperature measuring points:	4800
Thermal sensitivity (mK):	70

Description

ONE Edge | Thermal imaging camera for smartphones, 80 x 60 px, MSX technology, -20°-120°C (11001-0101)

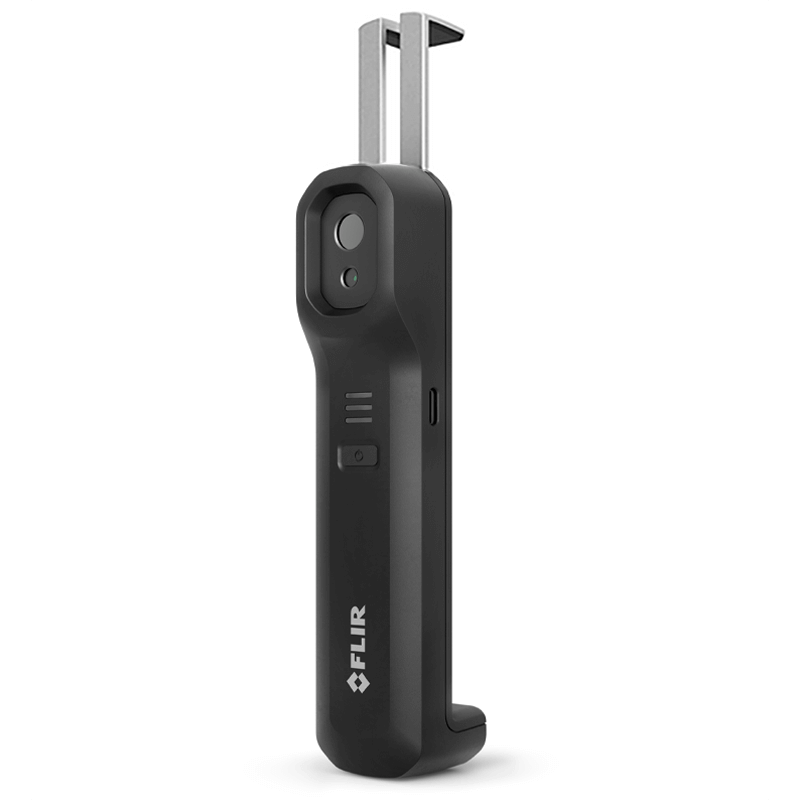

Turn your smart device into a powerful thermography tool with the FLIR ONE Edge. The thermal imaging camera connects wirelessly to your smart devices to inspect surface temperatures (range up to 5 m). Fully compatible with all iOS and Android smartphones and tablets. The FLIR ONE Edge works with all your smart devices regardless of operating system, size or updates.

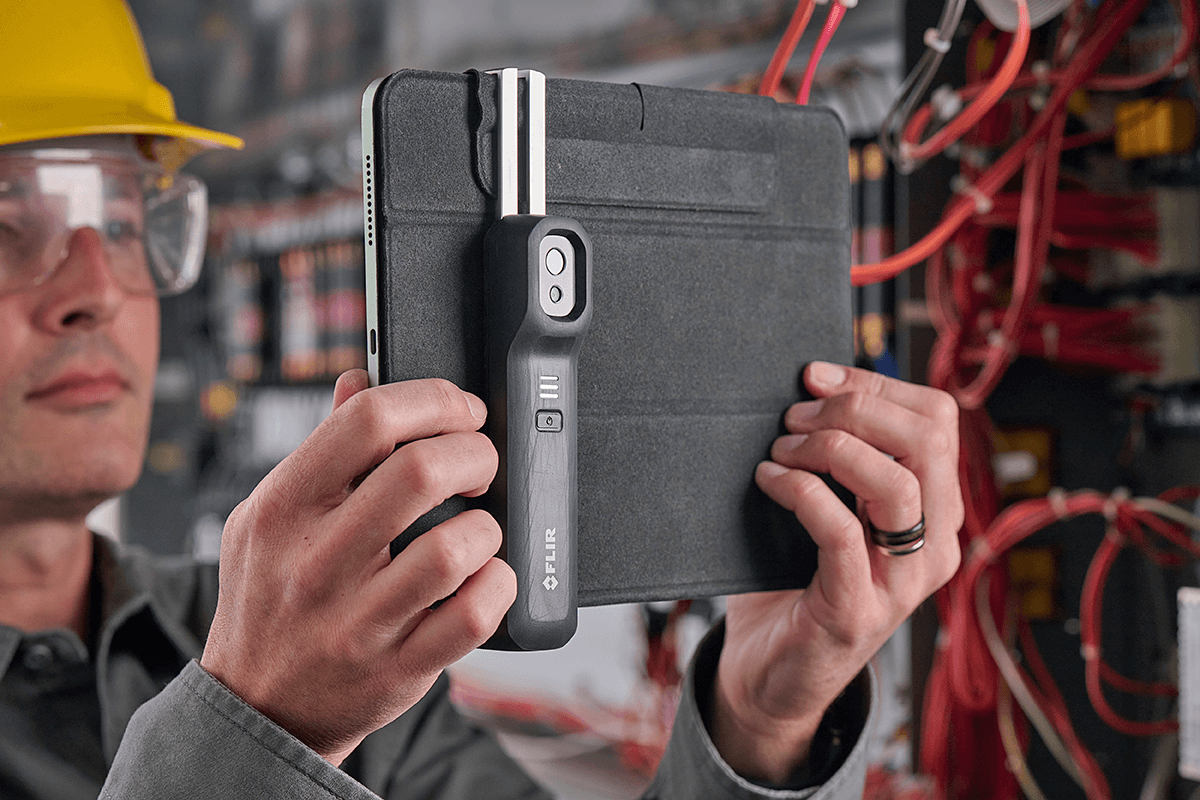

Always keep an eye on the display! The wireless thermal imaging camera allows measurements to be taken from any angle or around obstacles if necessary. Even in dangerous areas, measurements can be carried out reliably and safely. Your thermography measuring device sits comfortably in your hand. For convenient, one-handed operation, simply clip the FLIR ONE Edge onto your phone or tablet. Easily record JPEG thermal images or MP4 videos. The innovative FLIR MSX imaging process, which enriches data from the high-resolution thermal sensor with visual details, delivers particularly insightful and understandable results. The robust device reliably measures in a range from -20 °C to 120 °C.

For efficient team work, use FLIR Ignite to easily upload images and videos from your FLIR ONE Edge to the cloud, where you can edit, organize and share the data.

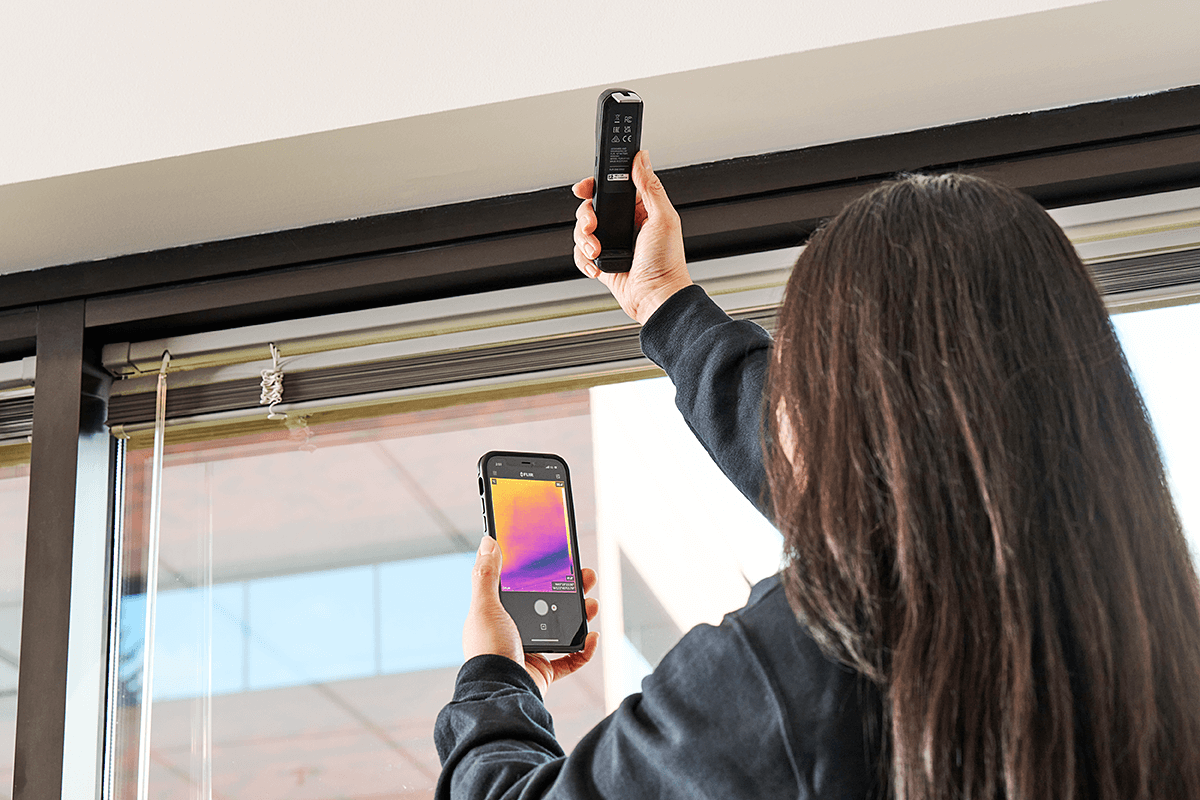

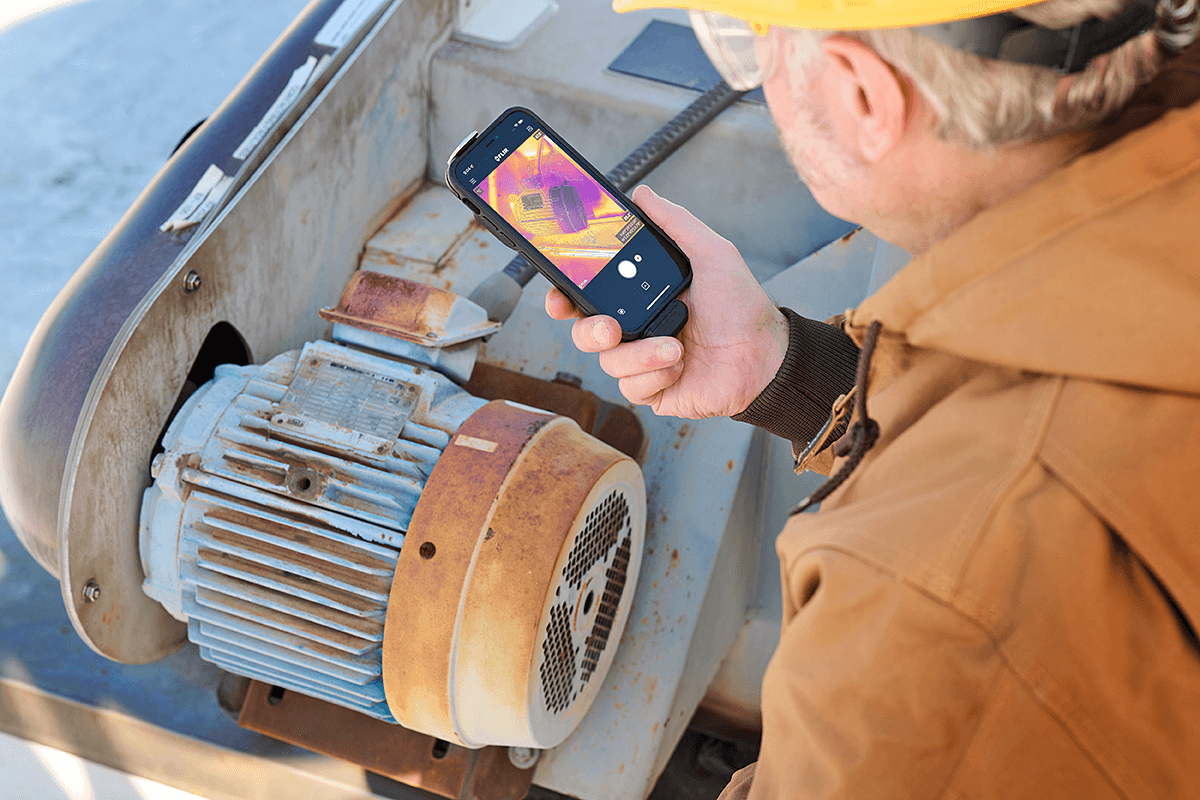

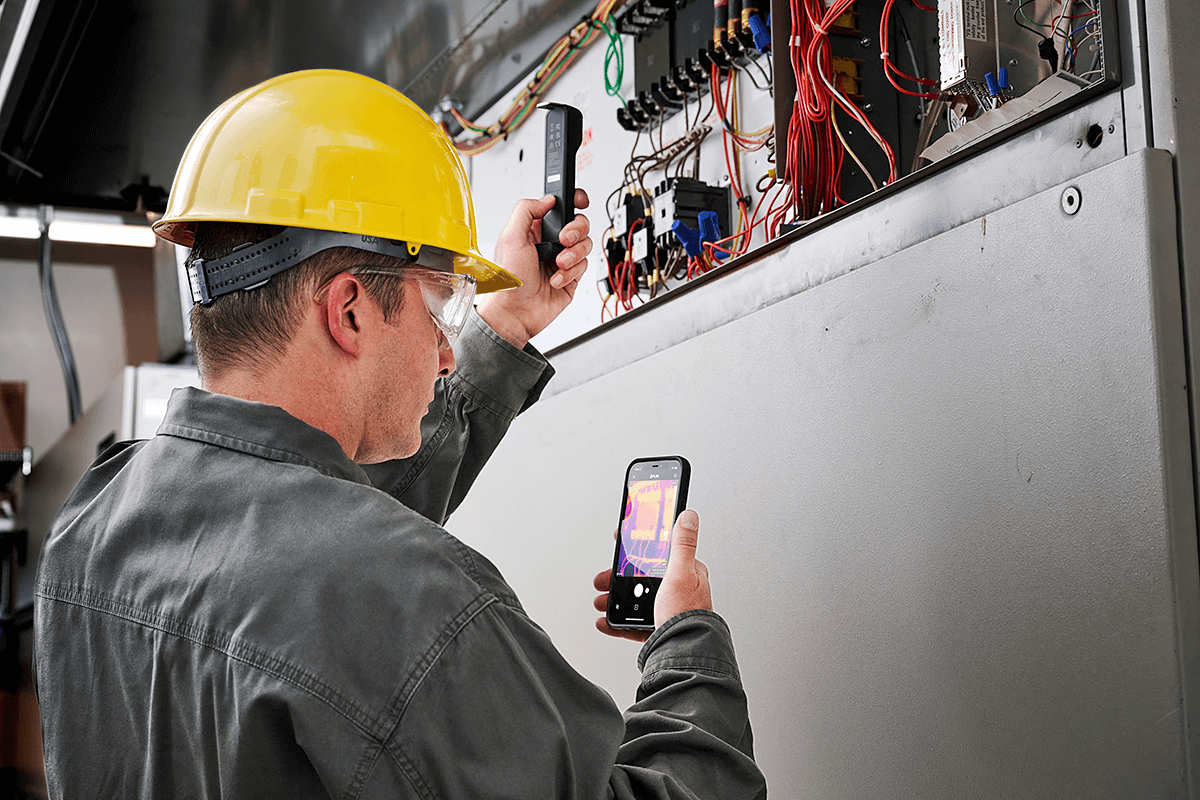

With the FLIR ONE Edge you have the right instrument at hand to solve your measurement tasks, be it in the area of manufacturing, maintenance or the maintenance of systems and buildings.
