EA Elektro-Automatik PSB20060-170TRIPLE | DC power supply unit, bidirectional, 3 channel, 3U, 15kW, 60V/3x170A/3x5kW, LAN, USB, EtherCAT, CAN FD

Name: PSB20060-170TRIPLE | DC power supply unit, bidirectional, 3 channel, 3U, 15kW, 60V/3x170A/3x5kW, LAN, USB, EtherCAT, CAN FD
Brand: EA Elektro-Automatik
SKU: PSB20060-170TRIPLE
Availability: InStock

Manufacturer number: PSB20060-170TRIPLE

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

EA Elektro-Automatik PSB20060-170TRIPLE | DC power supply unit, bidirectional, 3 channel, 3U, 15 kW, 60 V / 3 x 170 A / 3 x 5 kW / LAN, USB, EtherCAT, CAN FD.

Technical Data

AC input:	380 V - 480 V ±10% 3P
Additional functions:	Funktionsgenerator
Article number:	30334301
Autorange:	Yes
Bidirectional:	Yes
Dimensions (L x W x H) (mm):	668 x 483 x 132
Interfaces:	USB, LAN, EtherCAT, CAN FD
Model:	PSB20060-170Triple
Power factor:	0,99
Protective devices:	OVP, OCP, OPP, OTP
Warranty (years):	2
Weight (kg):	32.8
max. Power (A):	170
max. Voltage (V):	60

Documents & Downloads

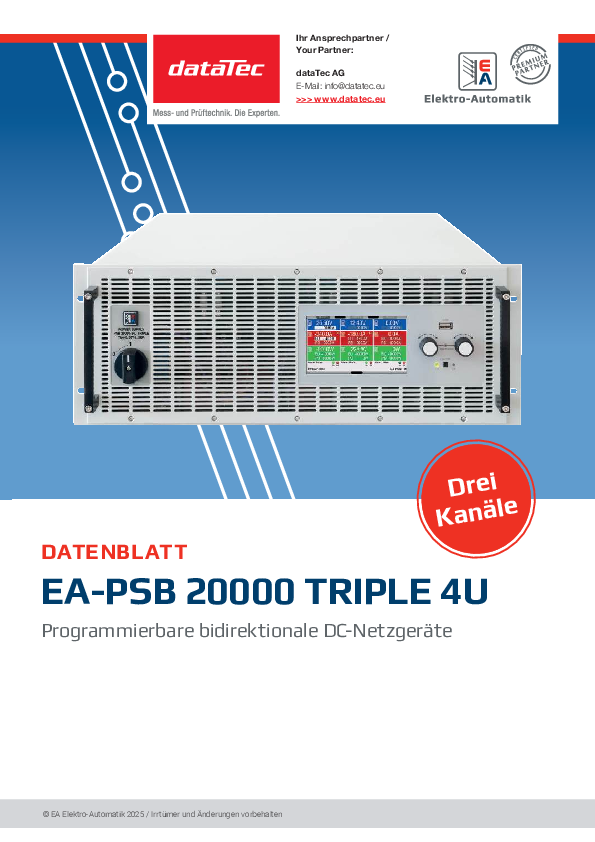

Datasheet

pdf | 1.29 MB

Description

PSB20060-170TRIPLE | DC power supply unit, bidirectional, 3 channel, 3U, 15kW, 60V/3x170A/3x5kW, LAN, USB, EtherCAT, CAN FD

The PSB 20000 Triple Series from EA Elektro-Automatik is a groundbreaking development in the field of programmable bidirectional DC power supplies. With three independent channels, this series offers a flexible and powerful solution for modern test requirements in fast-growing industries such as automotive, renewable energy and more. Its compact design in 3U and 4U versions and optional water cooling make it versatile while ensuring high performance and energy efficiency.

Product features of the PSB20000 series:

Voltage range: 0 - 920 V
Current rating: Up to 3 x 170 A (3U version) // 340 A (4U version)
Power per channel: Up to 5 kW (3U version) // 10 kW (4U version)
Total power: Up to 15 kW (3U version) // 30 kW (4U version)
Efficiency: Over 96% in regenerative mode with energy return to the grid
Communication interfaces: USB, Ethernet, EtherCAT, CAN FD and more
Active power factor correction: typical value of 0.99
Energy saving: high level of energy recovery and reduced operating costs

The PSB20060-170TRIPLE variant presented here measures 3 U and has a total output of 15 kW, a maximum voltage of 60 V, 3 x 170 A current and 3 x 5 kW power.

The PSB 20000 Triple series is ideal for applications that require high precision and efficiency:

Automotive industry:

Testing of electrical components of modern vehicles, including motors, inverters and onboard chargers.
Support for high-voltage and advanced energy systems.

Photovoltaics (PV):

Simultaneous testing of PV inverters, batteries and other components with the three channels.
MPP tracking to determine the efficiency of PV systems.

Research and development:

Use in battery and fuel cell technology.
Applications in process, wind and solar energy as well as telecommunications.
