EA Elektro-Automatik PS2342-06B | Power supply unit, DC, 3 channel, table, 2x 0 ... 42V / 6A, 3-6V / 4A, 212 W

Manufacturer number: PS2342-06B

PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
PS2342-06B
25 in stock. Ready to ship in 1 business day

CHF 813.00

plus VAT. CHF 878.85 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

3-channel power supply PS2342-06B with 2x 42V / 6A DC, 3-6V / 4A DC, 212 watts from EA Elektro-Automatik.

  • Output power: 2x 100W + 1x 12W
  • Output voltages: 2x 0 ... 42V DC
  • Output currents: 0 ... 6A
  • Ripple output 1 + 2: <80mVpp / <9mVRMS
  • Auxiliary output: 3 ... 6V DC, 12W
  • Overtemperature protection (OT)
  • Four-digit display for voltage and current
  • Fanless convection cooling - whisper-quiet
  • Housing closed at the top and bottom
  • Safety output sockets
  • Input voltage 90 ... 264V AC
  • Dimensions housing: 282x82x243mm
  • Weight: 3.8kg
  • Warranty: 2 years

Technical Data

Documents & Downloads

Datasheet
pdf | 0.35 MB
Userguide
pdf | 1.30 MB

Description

PS2342-06B | Power supply unit, DC, 3 channel, table, 2x 0 ... 42V / 6A, 3-6V / 4A, 212 W

The EA-PS2000B Triple series laboratory power supplies offer two main outputs and one auxiliary output. The "Tracking" function enables simultaneous setting of the two main outputs with the rotary knobs on the left control panel. The outputs are electrically isolated from one another and can be connected in series or in parallel. B. produce a variable ± 15V power supply. The safety output sockets are located on the front of the device. Voltage and current can be continuously adjusted from zero to the nominal value.

In addition to overvoltage protection (OVP), which is intended to protect connected consumers from excessive voltage, there is now also overcurrent protection. This switches the output off when a threshold adjustable from 0 ... 110% nominal current is reached and protects the load in the event of a defect against overcurrent and thus destruction.

Flexible power limitation: The setpoints of current and voltage adjust each other to the max. Power according to P = U * I not to be exceeded. This allows you to work with either a high output voltage or a high output current.

The device can be monitored and remotely controlled via a standard built-in USB interface and optional Windows software. This triple power supply is ideal for school and training companies, industrial and system applications, workshops and development.

Accessoires (7 products)

934-069-100
PMK
934-069-100
Measuring line safe to touch, plug 4mm stackable, black, 2m
Delivery time upon request
CHF 11.00
934-069-101
PMK
934-069-101
Measuring line safe to touch, plug 4mm stackable, red, 2m
Delivery time upon request
CHF 11.00
934-062-101
PMK
934-062-101
Test lead, stackable, 100cm, red MLN 100/1-RT
2 in stock. Ready to ship in 1 business day
CHF 8.00
934-069-102
PMK
934-069-102
Measuring line touch-proof, plug 4mm stackable, blue, 2m
Delivery time upon request
CHF 11.00
EASYPS2000
EA Elektro-Automatik
EASYPS2000
PC software for monitoring and remote control of the PS2000B power supply series
Delivery time upon request
CHF 42.00
934-062-102
PMK
934-062-102
Test lead, stackable, 100cm, blue MLN 100/1-BL
Delivery time upon request
CHF 8.00
934-062-100
PMK
934-062-100
Test lead, stackable, 100cm, black MLN 100/1-SW
Delivery time upon request
CHF 8.00

Alternate products (9 products)

PS2042-10B
Serie
EA Elektro-Automatik
PS2042-10B
Power supply unit, DC, 1 channel table, 0 ... 42V / 10A, 160W
14 in stock. Ready to ship in 1 business day
CHF 382.00
PS2042-06B
Serie
EA Elektro-Automatik
PS2042-06B
Power supply unit, DC, 1 channel table, 0 ... 42V / 6A, 100W
6 in stock. Ready to ship in 1 business day
CHF 335.00
PS2384-05B
Serie
EA Elektro-Automatik
PS2384-05B
Power supply unit, DC, 3 channel, table 2x 0 ... 84V / 5A, 3-6V / 4A, 332W
Delivery time upon request
CHF 875.00
PS2342-06B
Serie
EA Elektro-Automatik
PS2342-06B
Power supply unit, DC, 3 channel, table, 2x 0 ... 42V / 6A, 3-6V / 4A, 212 W
25 in stock. Ready to ship in 1 business day
CHF 813.00

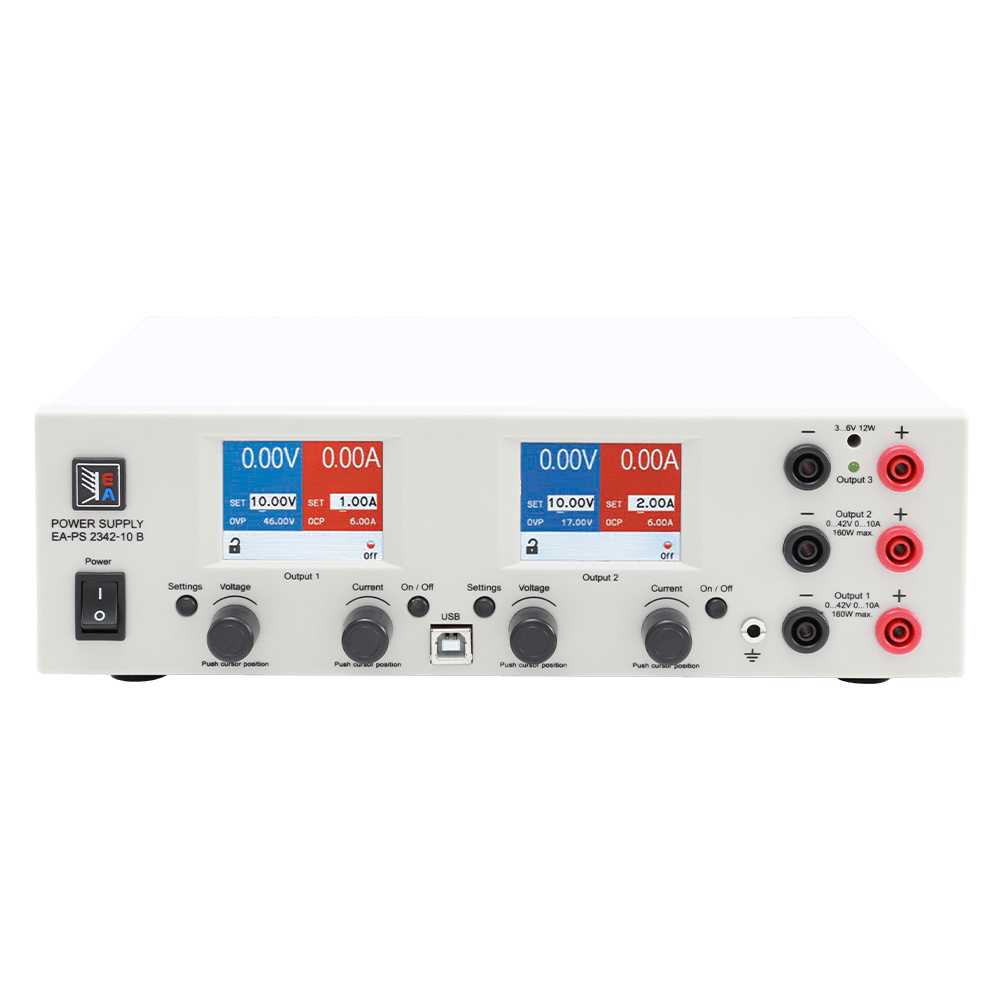

PS2342-10B
