CompactRIO Modules

NI (National Instruments) CompactRIO I/O modules with signal conditioning enable connection to a wide range of sensors and bus systems and support measurement of temperature, voltage, impedance, and audio frequencies, among others.

Filter products
232 products
783000-01
NI
783000-01
SPST relay board sbRIO-9482, 4 channels, 30 V DC (1.5 A), 60 V DC (1 A), 250 V AC (1.5 A), EM form A
  • Logic level and range: Requires External Power Supply
  • Relaistyp: Electromechanical
  • With case: No
  • Number of bidirectional digital channels: 0
  • Logic level of the digital I/O: Requires External Power Supply
  • Number of digital outputs: 4
CHF 360.00
Delivery time upon request
779014-01
NI
779014-01
NI 9221, analog input module with 8 channels, 800 kS / s, 12 bit, +/- 60 V, screw terminals
  • Voltage measuring range of the analogue input (V): -60 V to 60 V
  • Samplerate: 800 kS/s
  • Max. Number of differential analogue input channels: 0
  • Measurements per second/sampling rate (MS/s): 0.8
  • With case: Yes
CHF 1,250.00
Delivery time upon request
783920-01
NI
783920-01
NI 9246, C series analog input module, 3 channels, 50 kS / s per channel, 24 bit, 20 A.
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
  • Max. Number of differential analogue input channels: 3
CHF 1,730.00
Delivery time upon request
783827-01
NI
783827-01
AI module of the C series NI 9250 with BNC connection, +/- 5 V, 24 bit (102.4 kS / s per channel), 2 SE channels
  • With case: Yes
  • Samplerate: 102.4 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1024
  • Voltage measuring range of the analogue input (V): -5 V to 5 V
  • Max. Number of differential analogue input channels: 2
CHF 2,080.00
3 in stock. Ready to ship in 1 business day
780174-01
NI
780174-01
NI 9477, DIGITAL DIGITAL OUTPUT MODULE, 32 CHANNELS, 60 V, 8 US, PROTECTIVE LACQUER
  • Number of bidirectional digital channels: 0
  • With case: Yes
  • Number of digital outputs: 32
  • Number of digital inputs: 0
  • Logic level and range: 0.0V - 60.0V, 48 V, 24 V, 12 V
  • Logic level of the digital I/O: 48 V, 12 V, 24 V
CHF 1,280.00
Delivery time upon request
779005-02
NI
779005-02
NI-9411, C series digital input module with 6 channels, 1 MHz, ± 5 V to 24 V, protective coating
  • Number of bidirectional digital channels: 0
  • With case: Yes
  • Number of digital inputs: 6
  • Logic level of the digital I/O: RS-422, 5 V TTL, 12 V, 24 V, 5 V
  • Number of digital outputs: 0
  • Logic level and range: RS-422, 5 V TTL, 12 V, 24 V, 5 V
CHF 755.00
Delivery time upon request
783311-01
NI
783311-01
NI 9238, C series analog input module, 4 channels, 50 kS / s per channel, 24 bit, +/- 500 mV
  • With case: Yes
  • Measurements per second/sampling rate (MS/s): 0.05
  • Samplerate: 50 kS/s per channel
  • Voltage measuring range of the analogue input (V): -500 mV to 500 mV
  • Max. Number of differential analogue input channels: 4
CHF 2,350.00
Delivery time upon request
785503-02
NI
785503-02
NI 9262 DSUB, with protective coating, 6 channels, +/- 10 V, 1 MS / s / channel, 16-bit analog output module of the C series
  • With case: Yes
  • Max. Output current (mA): 2
  • Max. Update rate (MS/s): 1
  • Number of analogue output channels: 6
CHF 2,710.00
Delivery time upon request
779940-02
NI
779940-02
NI 9478, current-sinking digital output module with 16 channels, 0–50 V, 50 µs, protective coating
  • Number of bidirectional digital channels: 0
  • With case: Yes
  • Number of digital inputs: 0
  • Logic level and range: 48 V, 24 V, 12 V, 0.0V - 50.0V
  • Number of digital outputs: 16
  • Logic level of the digital I/O: 48 V, 24 V, 12 V
CHF 1,680.00
Delivery time upon request
779010-01
NI
779010-01

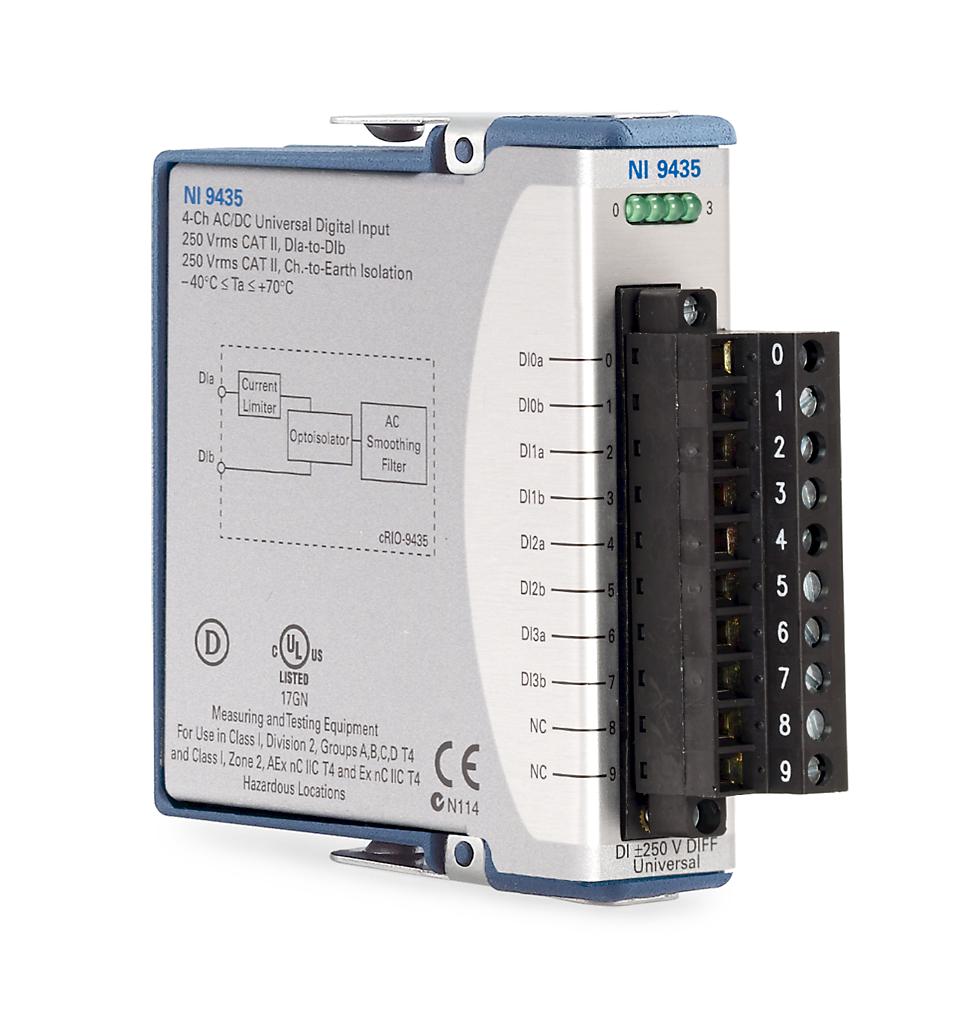

NI 9435 Sinking / sourcing digital input module with 4 channels (250 VAC / DC, 3 ms) with screw connections
  • Number of bidirectional digital channels: 0
  • With case: Yes
  • Number of digital outputs: 0
  • Logic level and range: 240 VDC, 240 VAC, 120 VDC, 120 VAC, 96 V, 12 V, 48 V, -250.0V - 250.0V, 72 V, 24 V, 5 V
  • Number of digital inputs: 4
  • Logic level of the digital I/O: 240 VAC, 120 VDC, 120 VAC, 96 V, 12 V, 48 V, 240 VDC, 72 V, 24 V, 5 V
CHF 400.00
Delivery time upon request
783739-01
NI
783739-01
NI 9215, analog input module with 4 channels, 100 kS / s per channel, 16 bit, +/- 10 V, spring terminals
  • With case: Yes
  • Max. Number of differential analogue input channels: 4
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Samplerate: 100 kS/s per channel
  • Measurements per second/sampling rate (MS/s): 0.1
CHF 1,150.00
7 in stock. Ready to ship in 1 business day
779940-01
NI
779940-01
NI 9478, current sinking digital output module, 16 channels, 0–50 V, 1.2 A per channel, 7 µs
  • Number of bidirectional digital channels: 0
  • With case: Yes
  • Number of digital inputs: 0
  • Number of digital outputs: 16
  • Logic level of the digital I/O: 48 V, 24 V, 12 V
  • Logic level and range: 48 V, 24 V, 5.0V - 50.0V, 12 V
CHF 1,340.00
Delivery time upon request
789131-01
NI
789131-01

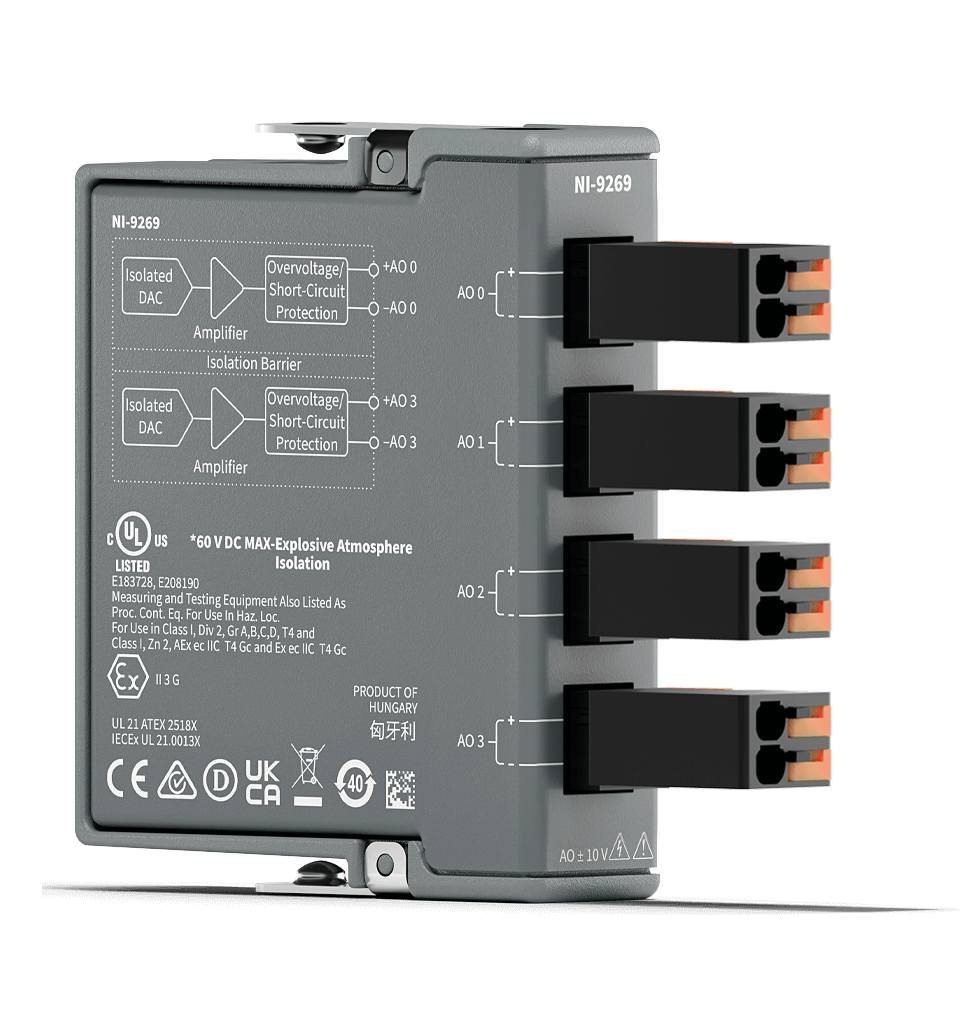

NI 9269 Snap-in, voltage output module, 4 channels, channel-by-channel isolation, +/-10 V
CHF 1,140.00
Delivery time upon request
782400-01
NI
782400-01
NI 9401E, digital TTL I / O module with 8 channels, 100 ns (kit, card only)
  • With case: No
  • Number of digital inputs: 0
  • Number of digital outputs: 0
  • Logic level and range: 0.0V - 5.25V, 5 V TTL
  • Logic level of the digital I/O: 5 V TTL
  • Number of bidirectional digital channels: 8
CHF 525.00
Delivery time upon request
781027-01
NI
781027-01
NI 9219E, universal analog input module, 4 individually isolated channels, 24 bit, ± 60 V, board only
  • With case: No
  • Max. Number of differential analogue input channels: 4
  • Measurements per second/sampling rate (MS/s): 0.0001
  • Samplerate: 100 S/s per channel
CHF 2,090.00
Delivery time upon request
781114-01
NI
781114-01
NI 9201E, analog input module with 8 channels, ± 10 V, 500 kS / s, 12 bit, D-Sub connection, ONLY BOARD
  • With case: No
  • Max. Number of differential analogue input channels: 0
  • Voltage measuring range of the analogue input (V): -10 V to 10 V
  • Samplerate: 500 kS/s
  • Measurements per second/sampling rate (MS/s): 0.5
CHF 775.00
Delivery time upon request
