Chroma 63809R-350-87 | Regenerative AC load 9kVA, 1-3 phases, 3U, USB, LAN, 63800R series

Manufacturer number: 63809R-350-87

Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Chroma 63809R-350-87
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Chroma 63809R-350-87 | Regenerative AC Load 9 kVA, 30 ~ 350 Vrms, 87 Arms (261 Apeak), 1-3 Phase, 3U, USB, LAN, 63800R Series.

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 4.48 MB

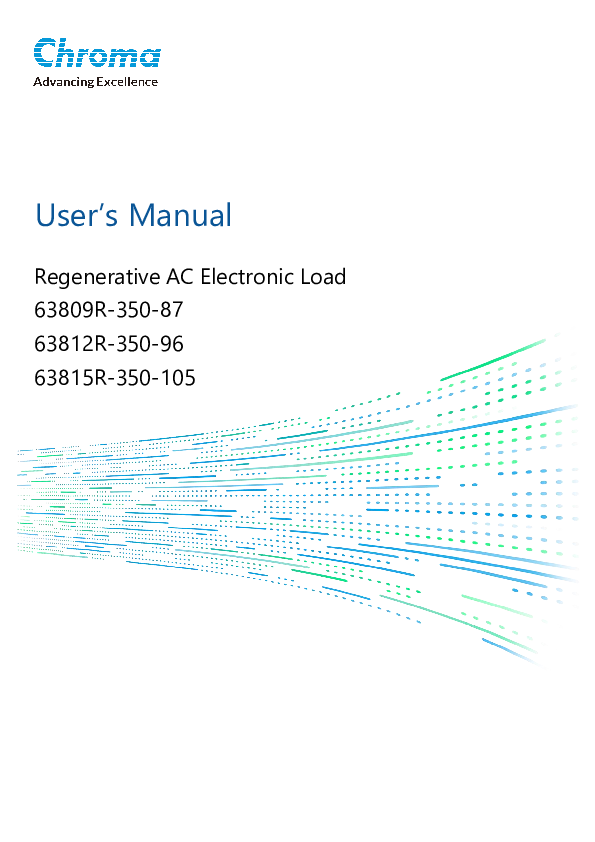

Userguide
pdf | 4.56 MB

Description

63809R-350-87 | Regenerative AC load 9kVA, 1-3 phases, 3U, USB, LAN, 63800R series

The Chroma 63800R series includes 3 regenerative AC loads, with 9 kVA, 12 kVA and 15 kVA. The series is characterized by its high power density, which offers a maximum load capacity of 15kVA in a compact 3U housing.

The AC loads are ideal for a wide range of renewable energy applications including ESS, hybrid PV inverters, AC EVSE and bi-directional on-board chargers (BOBC) for V2L and V2H applications.

The loads of the 63800R series reduce waste heat and therefore significantly reduce electricity costs because they feed a large part of it back into the grid. In addition, the series meets the requirements of the IEC 62040-3 standard for UPS testing.

The Chroma 63800R series utilizes advanced all-digital control technology and introduces a standby function to handle rapid fluctuations in the voltage source of the device under test (DUT). This feature maintains the load in the active state when the DUT is in standby mode or powered off, and begins consuming power immediately when the voltage source is activated.

In addition to basic functions such as CC, CP and CR, the Chroma 63800R series offers advanced operating modes such as rectified and phase lead/lag mode. It can also simulate SCR and TRIAC component characteristics with its unique half-cycle loading function.

The 63800R Series features a 5" LCD display with an intuitive user interface for seamless operation. Connectivity options include USB, LAN, and optional GPIB or CAN interfaces for fast remote and digital control via a PC using Chromas SoftPanel software .

The model variant 63809R-350-87 presented here has a power of 9 kVA, max current of 87 Arms (261 Apeak) and a voltage range of 30 ~ 350 Vrms. The AC loads of the 63800 series are also available with 12 kVA and 15 kVA.

63800R Series Product Features:

  • Rated power: 9kVA, 12kVA, 15kVA
  • Rated current: 87Arms, 96Arms, 105Arms
  • Voltage range: 30Vrms~350Vrms
  • Frequency range: 30Hz~100Hz
  • Crest factor range: 1,414~3,000
  • Power factor range: 0.100~1.000 (lead/lag)
  • 3U height with up to 15kVA high power density
  • Intuitive touch panel interface
  • High precision, corresponds to linear load levels
  • Selectable single-phase and three-phase load mode
  • Accepts reverse rated apparent power with 89% efficiency regenerative conversion to the grid
  • Rectified load mode
  • Leading/lagging current load mode
  • Power source mode
  • Stand-by quick response function
  • Inductive/capacitive load simulation
  • Positive/negative half cycle load function
  • Configurable start/end charge current phase angles
  • Configurable power load upper limit
  • Universal AC input range
  • Can be parallelized (in three-phase mode) for higher power output
  • Standard remote interfaces: USB, LAN
  • Optional remote interfaces: GPIB, CAN
  • Suitable for EVSE, off-grid PV inverter and UPS product testing applications
