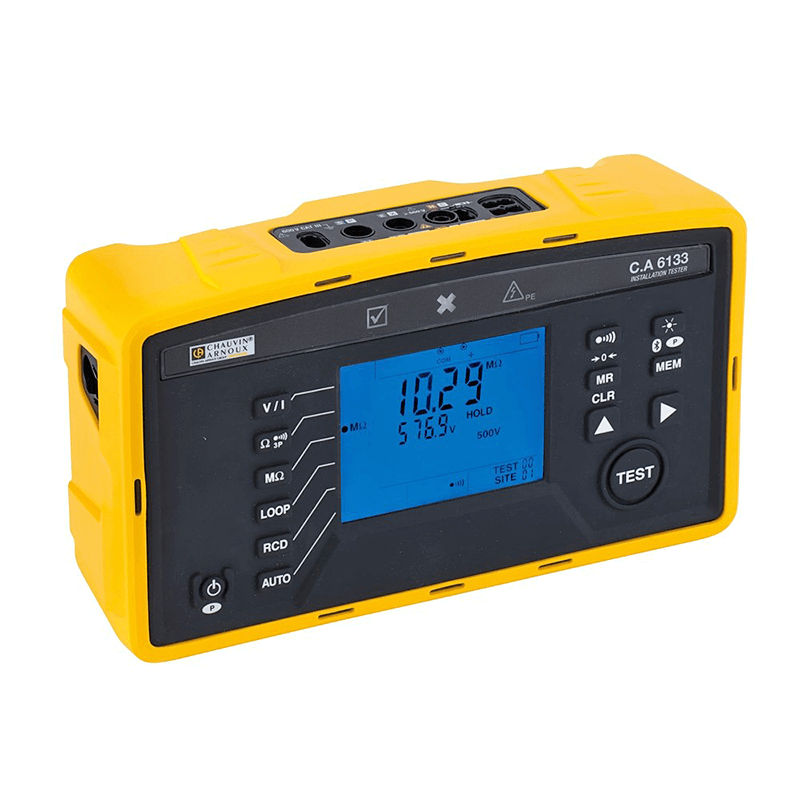

Chauvin Arnoux P01146013 | CA6133 installation tester VDE0100

Name: P01146013 | CA6133 installation tester VDE0100
Brand: Chauvin Arnoux
SKU: P01146013
Price: 908.0 CHF
Availability: OutOfStock

Manufacturer number: P01146013

Ready to ship in 5 to 10 business days

CHF 908.00

plus VAT. CHF 981.55 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Chauvin Arnoux CA6133 | Low voltage installation tester, VDE 0100, CAT III 600 V (P01146013).

Display: Blue illuminated LCD
Continuity test: 0.00 to 9.99 Ω - test lead compensation up to 5 Ω; I ⩾200 mA / 0.01 Ω / ± (2% display + 2D)
Resistance measurement: 1 to 9 999 Ω - 10.00 to 99.99 kΩ / 1 Ω - 10 Ω / ± (1% number + 5D)
Insulation resistance measurement: 250 V / 500 V | 0.01 to 999.9 MΩ / 10 kΩ or 100 kΩ / ± (3% display + 3D)
Earth resistance - 3P method:
- 0.50 to 99.99 Ω with resolution 0.01 Ω
- 100.0 to 999.9 Ω with resolution 0.1 Ω
- 1,000 to 2,000 Ω with 1 Ω resolution
Loop impedance measurement (Zs):
- Without tripping (12 mA): 1 to 19 Ω - 20 to 39 Ω - 40 to 2 000 Ω / 1 Ω / ± (2D) - ± (15% display + 3D) - ± 5% display + 2D)
- With tripping (300 mA): 0.1 to 0.9 Ω - 1.0 to 399.9 Ω / 0.1 Ω / ± (2 D) - ± (5% number + 2D)
Mains impedance measurement (Zi): measuring current 300 mA; 0.1 to 0.9 Ω - 1.0 to 399.9 Ω / 0.1 Ω / ± (2 D) - ± (5% number + 2D)
FI / RCD testing
- System voltage: 90 to 450 V; 45 to 65 Hz
- Types and measuring ranges: AC and A; 30 mA - 100 mA - 300 mA - 500 mA - 650 mA
Voltage & frequency 2.0 to 550.0 VAC - 0.0 to 800.0 VDC / 0.1 V / - ± (1% display + 2D)
Memory: 30 locations x 99 exams
Power supply: 6 x NiMH batteries
Dimensions: 223mm x 126mm x 70mm
Weight: ~ 700 g

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

All-current sensitive RCDs type B, B+:	No
Article number:	P01146013
Automatic test sequence:	No
Check residual voltage:	No
Counter start-up:	No
DIN VDE 0100 / IEC 60364-6:	Yes
Dimensions (L x W x H) (mm):	70 x 233 x 126
Insulation measurement 50V:	No
Insulation measurement 100V:	No
Insulation measurement 250V:	Yes
Insulation measurement 325V:	No
Insulation measurement 500V:	Yes
Insulation measurement 1000V:	Yes
Interfaces:	Bluetooth
Measured value memory:	2970
Mobile:	Yes
Model:	Chauvin Arnoux CA6133
Rotating field direction:	Yes
Selective, SRCDs, PRCDs, type G/R:	No
Software included:	Android-App IT-Report
Stationary:	No
Touch Display:	No
Voltage drop:	No
Warranty (years):	2
Weight (kg):	0.7
e-Mobility (prepared):	Yes

Description

P01146013 | CA6133 installation tester VDE0100

The installation tester CA 6131 and the larger CA 6133 are designed to check the safety of electrical installations: for new installations before commissioning, for existing systems even during operation, and to localize faults. The portable devices are easy to use, highly efficient and comply with the applicable standards, especially for test services.

Features:

Earthing measurement with auxiliary earth and loop impedance measurement
Continuity test with 0.2 A according to IEC standard 61557-4
Insulation test
FI / RCD testing (RCD)
Automatic test sequences
Storage of the test results
Android smartphone app for creating test reports
Power supply by rechargeable batteries, rechargeable on the mains, via USB or car plug.

Lieferumfang

CA 6133
Transport bag
Neck shoulder strap
Connection cable with Schuko plug
3 safety measuring leads 1.5 m / 4 mm (red / black / green)
3 alligator clips (red / black / green)
1 test probe, black
6 x NiMh battery
1 power supply USB 2A
1 micro USB connection cable
Operating instructions on CD ROM (5 languages)
Brief instructions on paper
Safety data sheet
Test report with measurement results
Battery information sheet
