Chauvin Arnoux P01146011 | CA6131 installation tester VDE0100

Name: P01146011 | CA6131 installation tester VDE0100
Brand: Chauvin Arnoux
SKU: P01146011
Price: 779.0 CHF
Availability: OutOfStock

Manufacturer number: P01146011

Ready to ship in 5 to 10 business days

CHF 779.00

plus VAT. CHF 842.10 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Chauvin Arnoux CA6131 | Low voltage installation tester, VDE 0100, CAT III 600 V (P01146011).

Voltage measurement: 550 V AC / 800 V DC
Contact resistance up to 200 mA
Resistance from 1 to 99.99 kΩ
Isolation: test voltage 250 V and 500 V, measurement up to 999 MΩ
Loop Zs (Z L-PE) without tripping: from 1 to 2000 Ω, calculation of the Ik
Grinding with high measuring current Zs (Z L-PE) with tripping and Zi (Z LN or Z LL), from 0.1 to 400 Ω, calculation of Ik
Residual current circuit breakers of type AC & A: 30mA, 100mA, 300 mA, 500 mA, 650 mA
Residual current circuit breaker in pulse mode: tripping time
Residual current circuit breaker in ramp mode (30 mA): tripping current
Rotation field direction: from 45 to 550 V; 45 to 65 Hz

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

All-current sensitive RCDs type B, B+:	No
Article number:	P01146011
Automatic test sequence:	No
Check residual voltage:	No
Counter start-up:	No
DIN VDE 0100 / IEC 60364-6:	Yes
Dimensions (L x W x H) (mm):	70 x 233 x 126
Insulation measurement 50V:	No
Insulation measurement 100V:	No
Insulation measurement 250V:	Yes
Insulation measurement 325V:	No
Insulation measurement 500V:	Yes
Insulation measurement 1000V:	No
Interfaces:	No
Measured value memory:	No
Mobile:	Yes
Model:	Chauvin Arnoux CA6131
Rotating field direction:	Yes
Selective, SRCDs, PRCDs, type G/R:	No
Software included:	No
Stationary:	No
Touch Display:	No
Voltage drop:	No
Warranty (years):	2
Weight (kg):	0.7
e-Mobility (prepared):	Yes

Description

P01146011 | CA6131 installation tester VDE0100

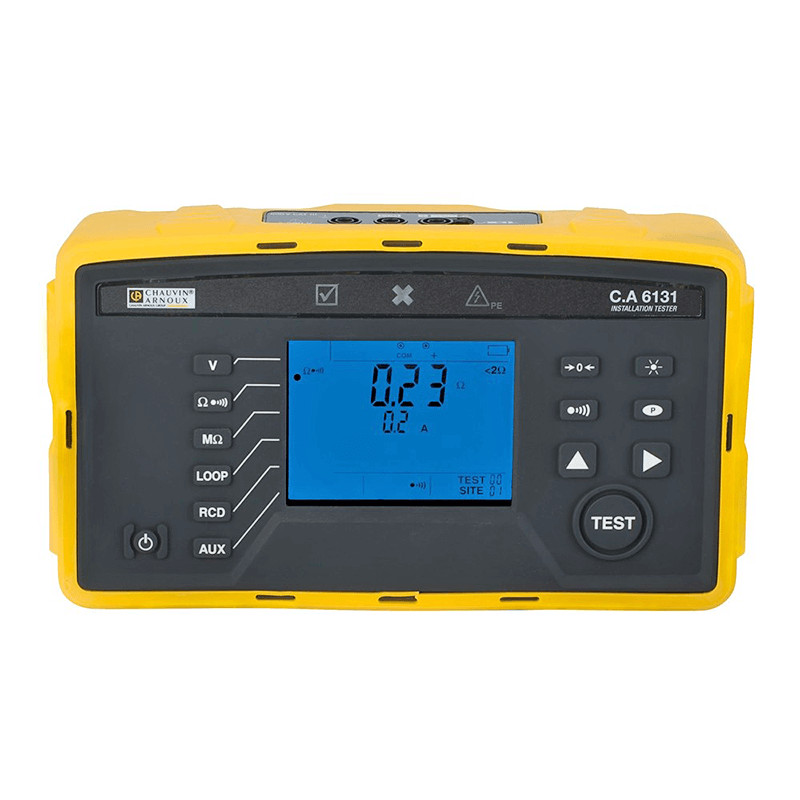

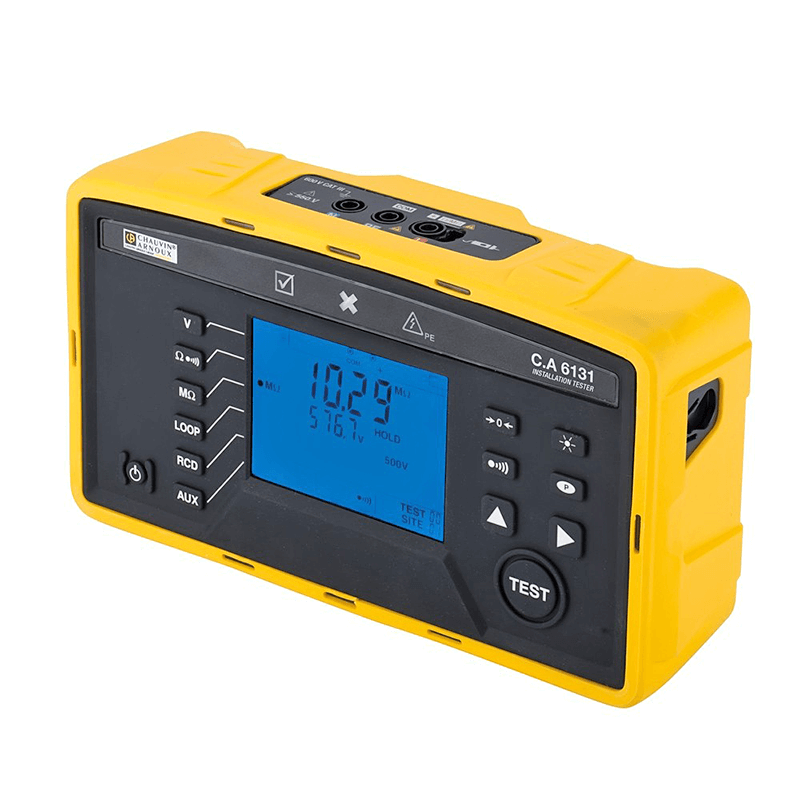

With the Chauvin Arnoux CA6131 multifunction tester, you can carry out all the necessary tests and measurements to correctly classify an electrical system:

Measure voltage, volume resistance, resistance and insulation of loops. The current strength can be measured using an external clamp. Type A & AC residual current circuit breakers can be tested in ramp or pulse mode. The CA 6131 also shows the direction of the rotating field.

Your test result is immediately shown on the easy-to-read display (OK / not OK).

The test device is easy to use. Only one function is assigned to each control element on the front. The CA 6131 has a folding support to be placed on a table. The 4-point shoulder strap enables you to work hands-free. All connections are provided with precise labeling (L, N, PE, +, com) to avoid connection errors. You can operate tests remotely via an external probe.

Measurement functions:

Continuity test with 0.2 A according to IEC standard 61557-4
Loop impedance measurement
Insulation test
FI / RCD testing (RCD)

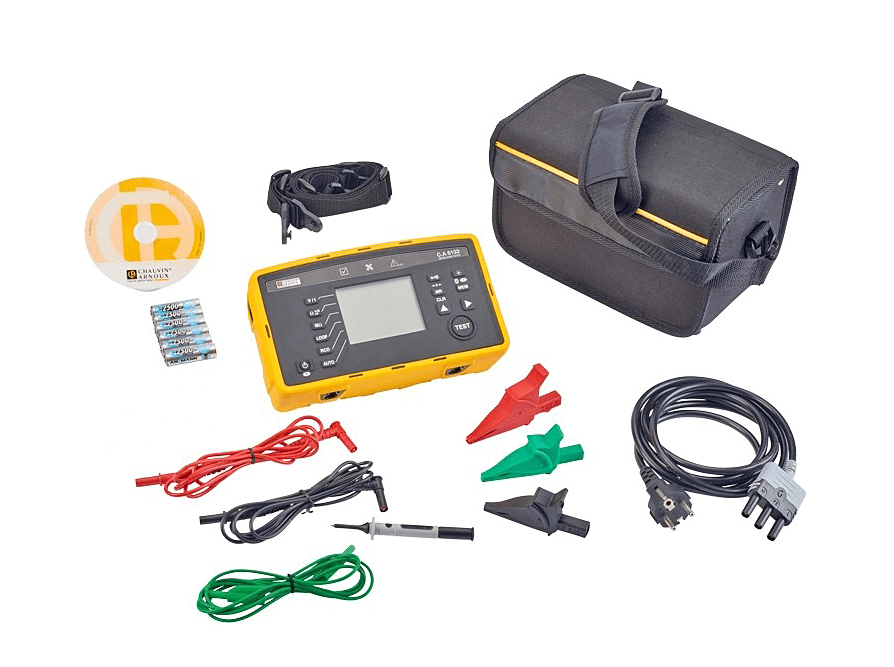

Lieferumfang

CA 6131
Transport bag
Neck shoulder strap
Connection cable with Schuko plug
3 safety measuring leads 1.5 m / 4 mm (red / black / green)
3 alligator clips (red / black / green)
1 test probe, black
6 x 1.5 V LR6 batteries
Operating instructions on CD ROM (5 languages)
Brief instructions on paper
Safety data sheet
Test report with measurement results
