Chauvin Arnoux CA6117 | Installation tester, VDE 0100/0105, FI / RCD with B / B +, power, harmonic (P01145460)

Manufacturer number: P01145460

Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Chauvin Arnoux CA6117
Ready to ship in 5 to 10 business days

CHF 2,313.00

plus VAT. CHF 2,500.35 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Chauvin Arnoux P01145460 | Multifunction tester CA 6117 for the installation test.

  • Testing according to international standards: DIN VDE 0100-600 / DIN VDE 0105-100 / DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE / ÖNORM E 8001, NIN / NIV ...
  • Reliable and simple connection technology thanks to the context help for each individual function, which also contains connection diagrams
  • Suitable for all network systems: TT, TN or IT
  • Testing of RCD / FI type AC, A, B
  • Safety table integrated for a quick reading of the results on the device
  • A Li-ion battery gives the device increased autonomy
  • Measurements: voltage, current with pliers, power, waveforms and harmonics
  • Measurement of the voltage drop for correct dimensioning of the conductor cross-section
  • Loop measurement, resolution 1 mΩ
  • 3 storage level

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.66 MB
Userguide
pdf | 7.53 MB

Description

CA6117 | Installation tester, VDE 0100/0105, FI / RCD with B / B +, power, harmonic (P01145460)

The CA 6117 is the UNIVERSAL DEVICE for checking electrical systems in accordance with national and international standards (IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600 etc.) It combines advanced design, ergonomics, simple operation, performance , Speed and precision in one device.
The device, which is suitable for all types of neutral conductor systems (TT, TN, IT), is ideal for a wide range of applications: industry, service sector, residential sector.

Ergonomics: The robust and compact CA 6117 is characterized by a sophisticated design with fast and practical commissioning. All results are clearly displayed on the large colored LCD graphic display with backlighting.
A rotary switch on the front of the device enables direct access to all functions. Numerous sound signals and displays allow a quick, standard interpretation of the results. Context help for each function guides the user systematically step by step or only when necessary through the procedures. Up to 1000 measurements can be saved in the device memory. The CA 6117 is equipped with a USB connection via which the data can be output.

Measurements: The good performance of the CA 6117 offers excellent stability of the measurements - even in a disturbed industrial environment. The device has all the measurements required to control an electrical system: continuity, resistance, insulation, earthing and selective earthing measurement, loop impedance, fault currents type A and AC. In addition, the CA 6117 enables the measurement of voltage, frequency, current using pliers, active power, harmonics and the rotating field direction.
Even better: A fuse module has been integrated into the device, which enables measurements on type B residual current devices (RCD). The voltage drop can also be measured with this.

Lieferumfang

  • 1 installation tester with transport bag
  • 1 power adapter / charger type 2
  • 1 Li-Ion battery pack
  • 1 USB cable A / B 1.80 m with ferrite
  • 1 3-pin test lead with 3 safety test leads (red, blue and green)
  • 3 test probes Ø 4 mm (red, blue and green)
  • 3 alligator clips (red, blue and green)
  • 2 safety measuring leads 3 m (angled-straight, red and black), 1 3-pole Euro power cord
  • 1 2-pole Euro power cable
  • 1 remote control probe
  • 1 wrist strap
  • 1 screen scratch protection film (already attached)
  • 1 shoulder strap for hands-free operation (4 points)
  • 1 ICT software for data export on CD-ROM
  • 6 operating instructions on CD (1 per language)
  • 1 safety data sheet (20 languages)

Accessoires (18 products )

Chauvin Arnoux P01102017
Chauvin Arnoux P01102017
Earthing measurement set consisting of 2 15m earth electrodes for CA611x
Ready to ship in 5 to 10 business days
CHF 115.00
Chauvin Arnoux P01102018
Chauvin Arnoux P01102018
Earthing measuring set consisting of 1 earth electrode 30m for CA611x
Ready to ship in 5 to 10 business days
CHF 109.00
Chauvin Arnoux P01102094
Chauvin Arnoux P01102094
Screen protectors, 3 pieces for CA 6116
Delivery time upon request
CHF 43.00
Chauvin Arnoux P01102095
Chauvin Arnoux P01102095
Dataview operating software for CA measuring and testing devices
Ready to ship in 5 to 10 business days
CHF 709.00
Chauvin Arnoux P01102130
Chauvin Arnoux P01102130
Charging holder Li-Ion for CA6116N, CA6117
Delivery time upon request
CHF 114.00
Chauvin Arnoux P01295094
Chauvin Arnoux P01295094
2 safety measuring lines 3m, for CA6113 angled-straight, red and black
Ready to ship in 5 to 10 business days
CHF 109.00
Chauvin Arnoux P01298057
Chauvin Arnoux P01298057
Carrying loop for CA6113
Delivery time upon request
CHF 88.00
Chauvin Arnoux P01102022
Chauvin Arnoux P01102022
Earthing measurement set consisting of 2 earth electrodes 100m for CA611x
Ready to ship in 5 to 10 business days
CHF 396.00
Chauvin Arnoux P01120336
Chauvin Arnoux P01120336
C177A current probe, AC up to 200A for CA6116
Ready to ship in 5 to 10 business days
CHF 391.00
Chauvin Arnoux P01296047
Chauvin Arnoux P01296047
Li-Ion battery pack for CA6117N, CA6116N
Ready to ship in 5 to 10 business days
CHF 309.00
Chauvin Arnoux P01102021
Chauvin Arnoux P01102021
Earthing measuring set consisting of 2 earth electrodes 50m for CA611x
Ready to ship in 5 to 10 business days
CHF 302.00
Chauvin Arnoux P01102084A
Chauvin Arnoux P01102084A
Continuity test rod with installation tester 4mm length 90cm (3x 30cm)
Ready to ship in 5 to 10 business days
CHF 96.00
Chauvin Arnoux P01102129
Chauvin Arnoux P01102129
Power adapter / charger type 2 without power cord for CA611x
Ready to ship in 5 to 10 business days
CHF 277.00
Chauvin Arnoux P01101921
Chauvin Arnoux P01101921
Set of 3 test probes (red, g
Ready to ship in 5 to 10 business days
CHF 25.00
Chauvin Arnoux P01101943
Chauvin Arnoux P01101943
Test probe for remote control probe for CA6533
Ready to ship in 5 to 10 business days
CHF 12.00
Chauvin Arnoux P01120460
Chauvin Arnoux P01120460
MN77 current clamp, 5mA - 19.99A for CA611x series
Ready to ship in 5 to 10 business days
CHF 308.00
Chauvin Arnoux P01298081
Chauvin Arnoux P01298081
Shoulder strap for hands-free operation (4 points), for CA6113, CA6116, CA6117
Delivery time upon request
CHF 34.00
Chauvin Arnoux P01295174
Chauvin Arnoux P01295174
Power cord for installation testers CA6113, CA6116N, CA6117 & PEL100
1 in stock. Ready to ship in 1 business day
CHF 17.00

Alternate products (4 products )

Gossen Metrawatt PROFITEST Intro
Bundle
Gossen Metrawatt PROFITEST Intro
Test device, VDE 0100/0413, starter package (M503A)
Ready to ship in 5 to 10 business days
CHF 2,090.00
Chauvin Arnoux CA6113
Chauvin Arnoux CA6113
Installation tester / test device, VDE 0100/0105, FI test RCD (P01145445)
Delivery time upon request
CHF 1,455.00
Chauvin Arnoux PA1145460CZ
Chauvin Arnoux PA1145460CZ
Professional package CA6117 basic device VDE 0100 test device with current clamp C177A
Delivery time upon request
CHF 2,361.70 CHF 2,778.60

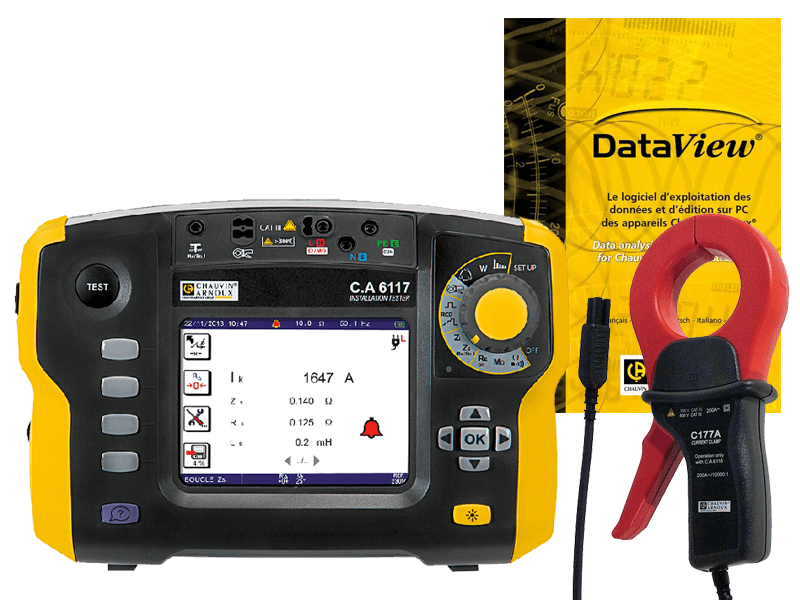

Chauvin Arnoux PA1145460FCZ
