Chauvin Arnoux P01138901 | CA6541 megohmmeter, 1000V, 2 kOhm to 4 TOhm

Name: P01138901 | CA6541 megohmmeter, 1000V, 2 kOhm to 4 TOhm
Brand: Chauvin Arnoux
SKU: P01138901
Price: 1593.0 CHF
Availability: OutOfStock

Manufacturer number: P01138901

Delivery time upon request

CHF 1,593.00

plus VAT. CHF 1,722.03 VAT plus shipping costs

or choose one of the following options:

Product inquiries Request education-price

Megohmmeter / insulation tester CA 6541 by Chauvin Arnoux. The reference for insulation measurements.

Insulation test: up to 4 TΩ (5 ranges) under 50/100/250/500 and 1000 VDC
Automatic calculation of the polarization index (PI) and the dielectric loss factor (DAR)
Programmable test duration with curve generation R (t)
Automatic voltage display before and after the measurement from 1 to 1000 V AC / DC
Resistance: from 0.01 Ω to 400 kΩ
Continuity test: 0.01 Ω to + 40 Ω (with acoustic signal and compensation of the test leads)
Automatic capacitance measurement after each insulation measurement: 0.005 to 4.999 µF
Microprocessor control
Measured value storage for 20 measured values
Huge LC display for digital value and bar graph
Display lighting SMOOTH function (smoothing the display values)
Blocking of dangerous test voltages possible
Programmable alarms
Remote control via test probe (optional)
The power supply is guaranteed by batteries
External dimensions housing (L x W x H): 240 x 185 x 110 mm
Weight: approx.3.4 kg

Manufacturer-independent

Wide variety of brands from dataTec.

To the brands

Large product portfolio

All the highlights of dataTec Switzerland at a glance.

Download here

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet

pdf | 1.32 MB

Description

P01138901 | CA6541 megohmmeter, 1000V, 2 kOhm to 4 TOhm

The CA 6541 is a real high-performance insulation tester with test voltages from 50 V to 1 kV, suitable for the most adverse environmental conditions and with qualitative analysis of the insulation.

Accessoires (2 products )

Chauvin Arnoux P01101935

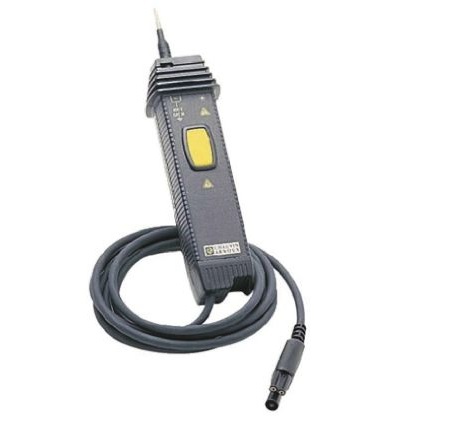

Remote control probe No. 1 CA6525 / CA6531 / CA6533
